No.
18
Item
Louver control
(Continued)
Outline of specifications
Remarks
<<Individual air direction setup>>
• Pushing
UNIT LOUVER
Louver select button enables every discharge
port to set up the air direction.

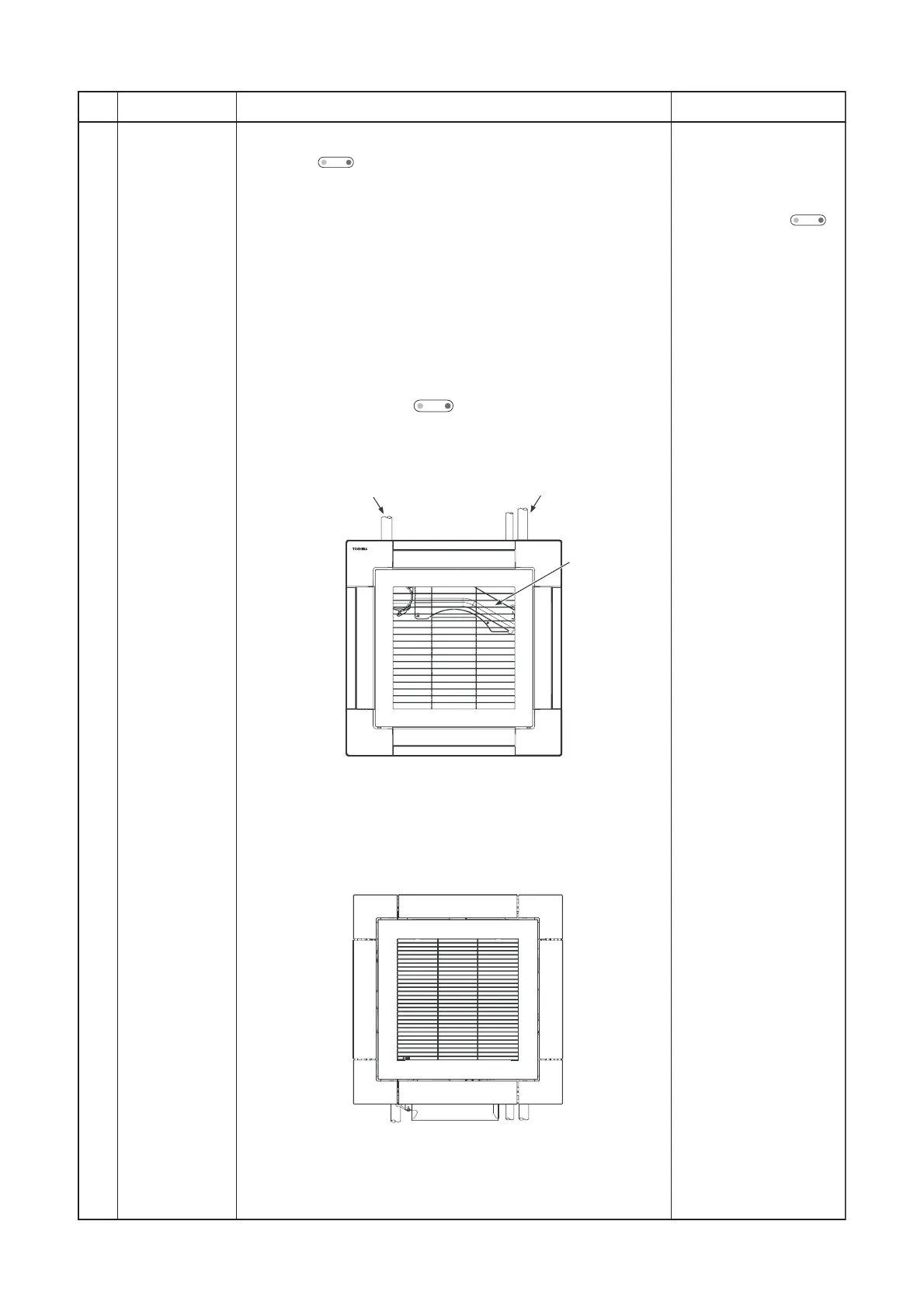

The louver numbers that are displayed on the display part
correspond to those in the following figure.
• In case of no input (key operation) for approx. 5 seconds during
setting of individual air direction (during displaying of louver No.
on the remote controller screen), the remote controller screen
returns to the normal display screen.
• For the air direction illustration during normal operation, the air
direction of the least No. among the louvers which are block-set
is displayed.
• While individual air direction is being
set, the remote controller
operation (Illustration of air direction) and operation of the real
machine are linked.
• When selecting a case, Louver select button is not
pushed or louver No. is not displayed, the air directions of all
the louvers are collectively set up.
,
UNIT LOUVER
Setup from the remote
Subject model :
4-way cassette
Compact 4-way
controller without
UNIT LOUVER
button is unavailable.
Drain pi
Compact 4-way cassette type
4-way cassette type
pe
Refrigerant pipe
[F1] [F3]
[F4]
[F2]
01 03
04
02
[F3]
03
[F1]
01
[F2]
02
[F4]
04
Indoor unit
drain pipe
Indoor unit
refrigerant pipe
Electrical
control box
To Next Page
