4.8 Bottom cover assembly 4 Replacement Procedures
4.8 Bottom cover assembly
Removing the bottom cover assembly
The following describes the procedure for removing the bottom cover assembly (See Figure
4-11 to 4-14).
1. Remove the following screw securing LCD harness cover and remove the LCD
harness cover.
 M2.5x4.0B FLAT BIND screw x1
2. Disconnect the LCD harness from the connector CN5000 on the system board.
3. Disconnect the RJ45 harness from the connector CN4100 on the system board.
4. Disconnect the Touch pad flat cable from the connector CN3201.
5. Disconnect the Volume harness from the connector CN3330.
6. Disconnect the Bluetooth flat cable from the connector CN4400.
7. Disconnect the Touch sensor flat cable from the connector CN3360.
8. Remove the following screws securing the cover assembly.
 M2.5x8.0B FLAT BIND screw x5

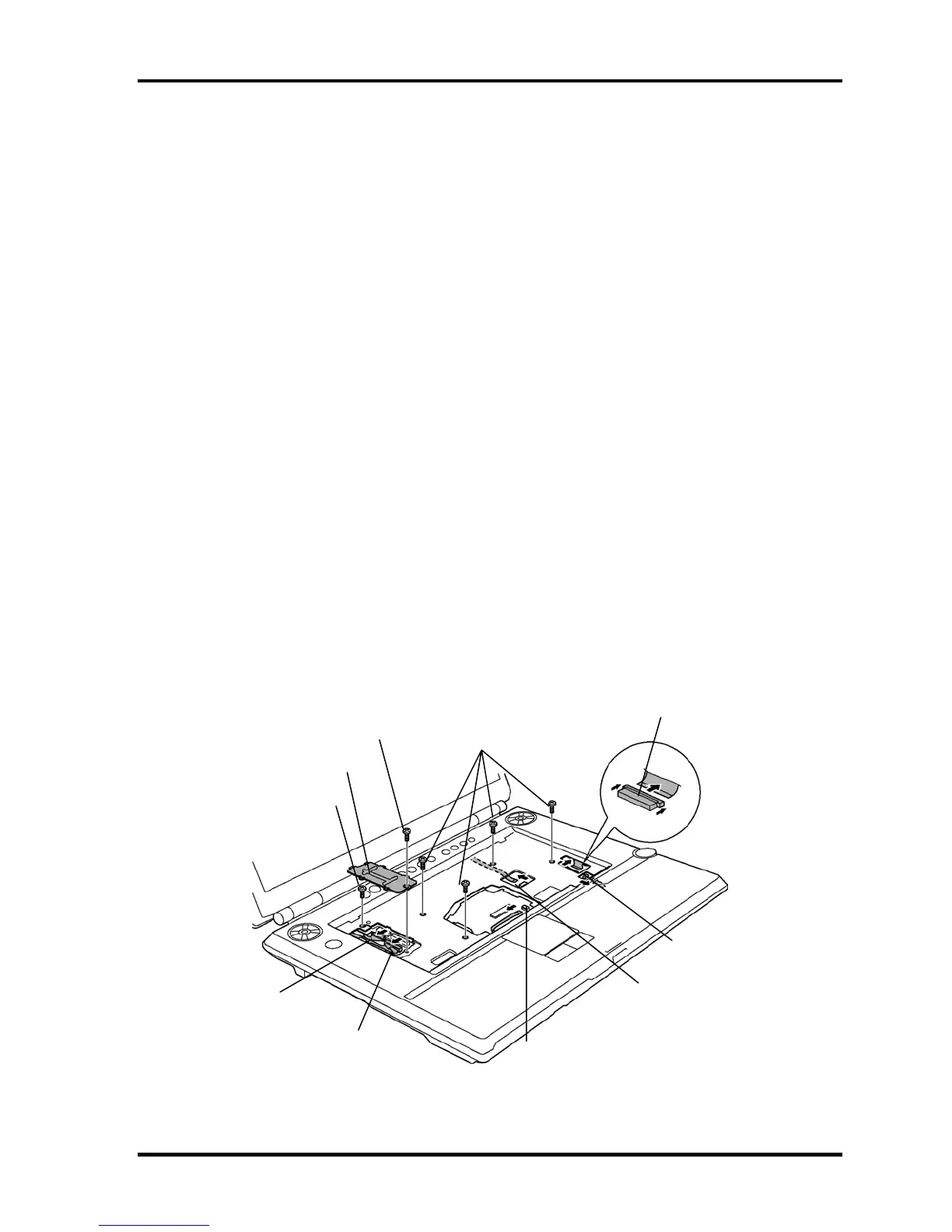

Figure 4-11 Removing the screws from cover assembly
M2.5x4.0B FLAT BIND
LCD harness cover
M2.5x8.0B FLAT BIND
Touch pad flat cable
Connected to CN3201
Volume harness
Connected to CN3330
Touch sensor flat cable
Connected to CN3360
RJ45 harness
(Connected to CN4100)
LCD harness
Connected to CN5000
Bluetooth flat cable
Connected to CN4400
M2.5x8.0B FLAT BIND
4-24 [CONFIDENTIAL] QOSMIO G20 Maintenance Manual (960-511)
