4.25 TV antenna board 4 Replacement Procedures
4.25 TV antenna board
Removing the TV antenna board
The following describes the procedure for removing the TV antenna board (See Figure 4-38).
1. Remove the following screw securing the TV antenna board.
 M2.5x4.0B FLAT BIND screw x1
2. Slightly pulling up the TV antenna board, disconnect the TV antenna harness from
the connector CN9611 on the TV antenna board.
M2.5x4.0B FLAT BIND
CN9611
TV antenna harness

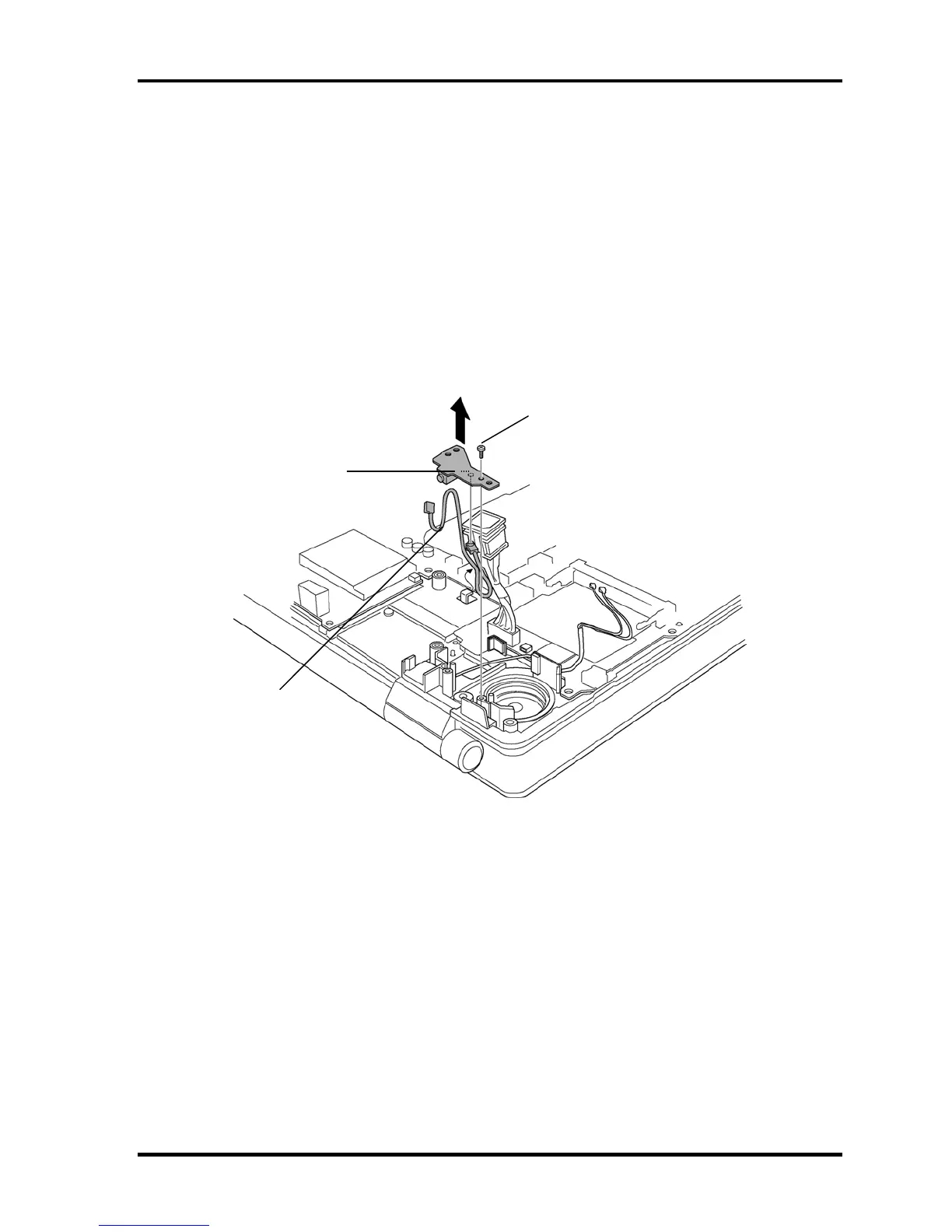

Figure 4-38 Removing the TV antenna board
Installing the TV antenna board
The following describes the procedure for installing the TV antenna board (See Figure 4-38).
1. Connect the TV antenna harness to the connector CN9611 on the TV antenna board.
2. Install the TV antenna board to the cover assembly and secure it with the following
screw.
 M2.5x4.0B FLAT BIND screw x1
4-60 [CONFIDENTIAL] QOSMIO G20 Maintenance Manual (960-511)
