4 Replacement Procedures 4.12 Battery latch assembly
4.12 Battery latch assembly
Removing the battery latch assembly
The following describes the procedure for removing the battery latch assembly (See Figure
4-18 and 4-19).
1. Remove the following screws securing the battery latch assembly.
 M2.5x4.0B S-THIN FLAT BIND screw x1
2. Remove the battery latch assembly from the bottom cover assembly.
M2.0x4.0B
S-THIN FLAT BIND
Battery latch assembly

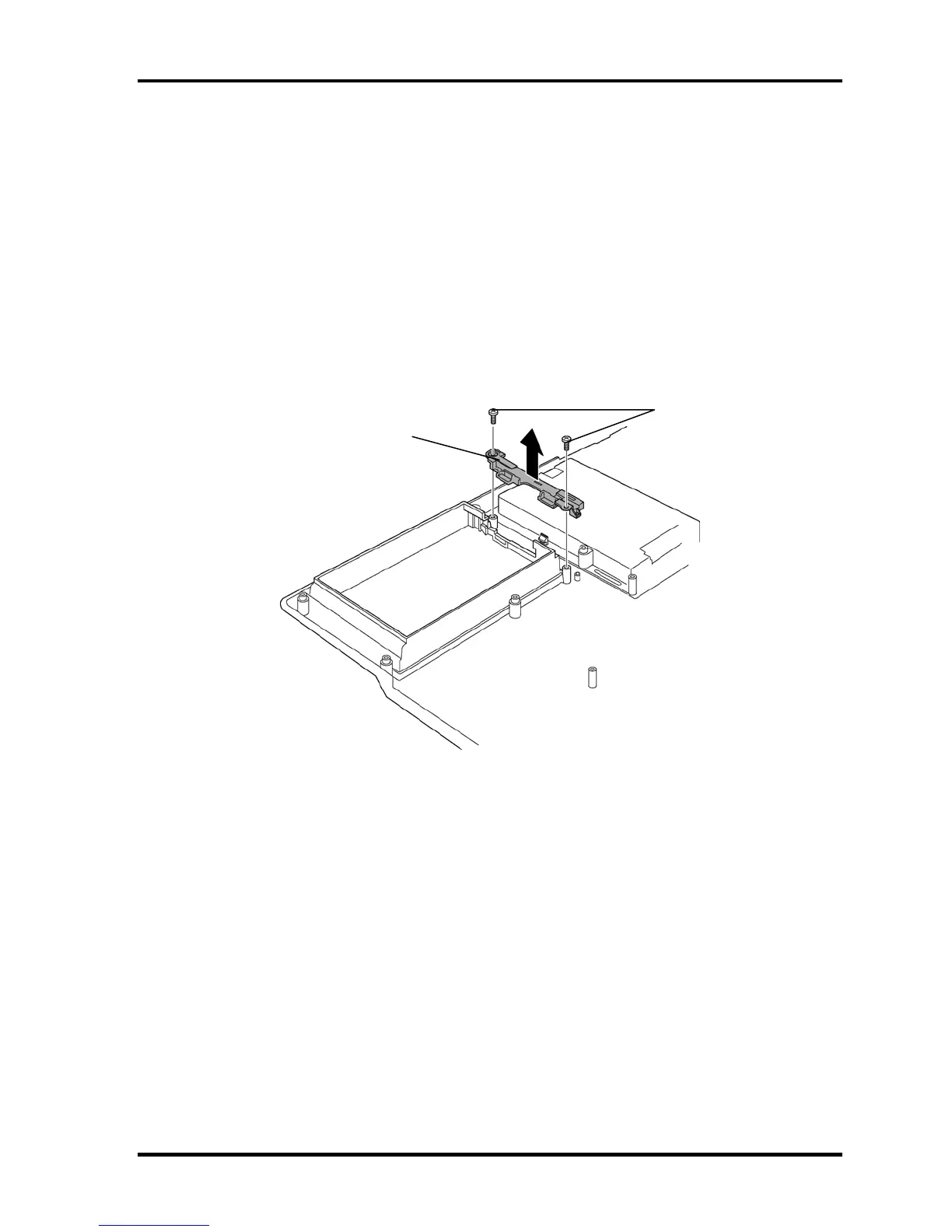

Figure 4-18 Removing the battery latch assembly
QOSMIO G20 Maintenance Manual (960-511) [CONFIDENTIAL] 4-33
