TC Series (TCmini/TC200) Driver
GP-Pro EX Device/PLC Connection Manual
28
Device Setting

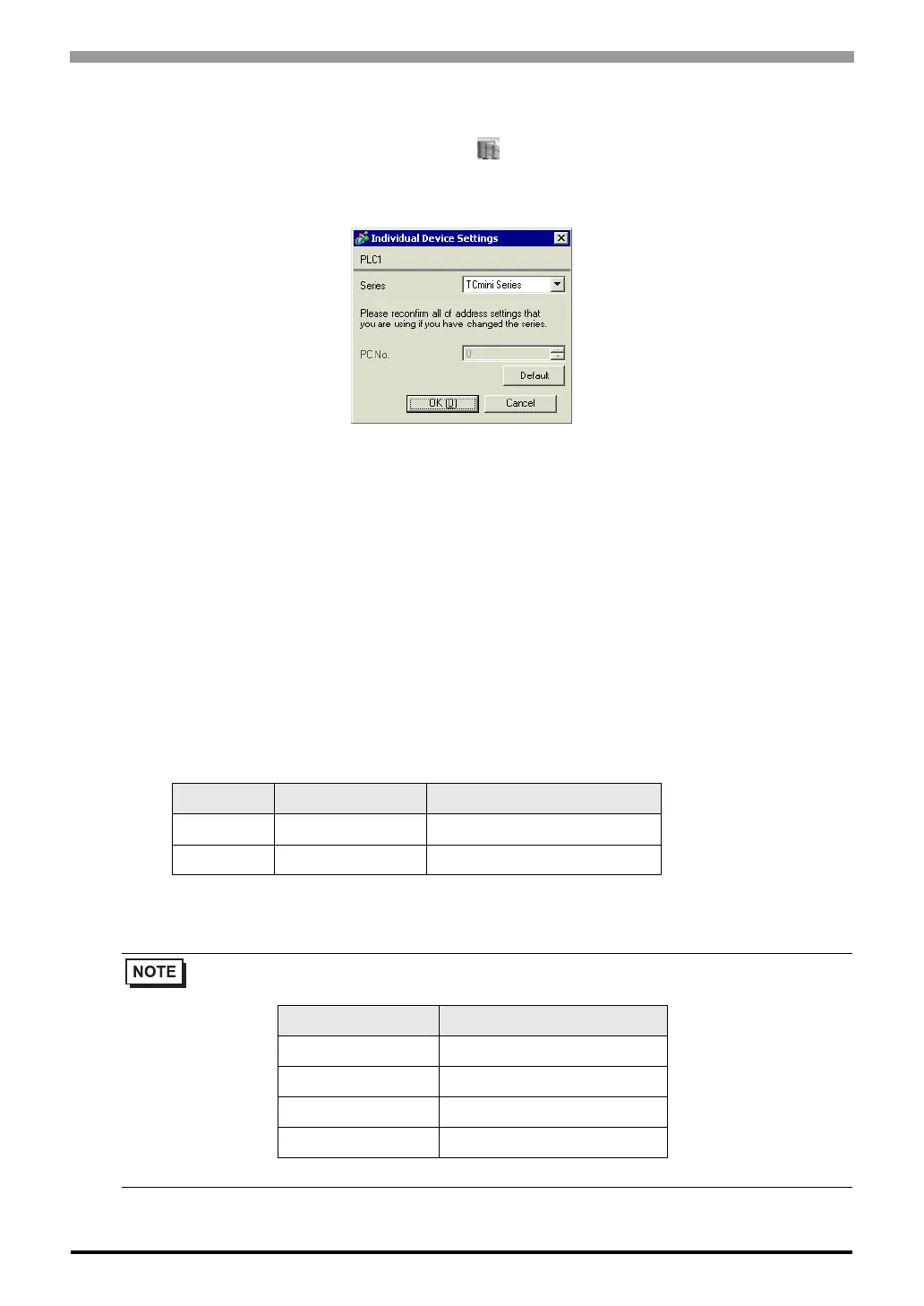

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]
window, select the external device and click [Settings] .
To connect multiple External Devices, from [Device-Specific Settings] in the [Device/PLC] window, click [Add
Device] to add another External Device.
External Device Settings
Use the ladder software (TCPRGOS-W (E)) to set up communication settings on the External Device.
Refer to your External Device manual for details.
After setup is complete, restart the External Device to enable the settings.
Procedure
1 On the computer, start the ladder software.
2 From the [Tool] menu, select [Register editor].
The [Register data] window appears.
3 Set the register as follows.
Double-click [HEX] in the register column and enter the value in the [Data change] dialog box.
CPU Register Setting
D37E 0000h Communication speed (9600bps)
D37F 0003h Host Communication mode
• The following items are fixed.
Setting Information Value
Communication Type RS-422/485 (2wire)
Data Length 8 bit
Parity None
Stop Bit 2 bit
