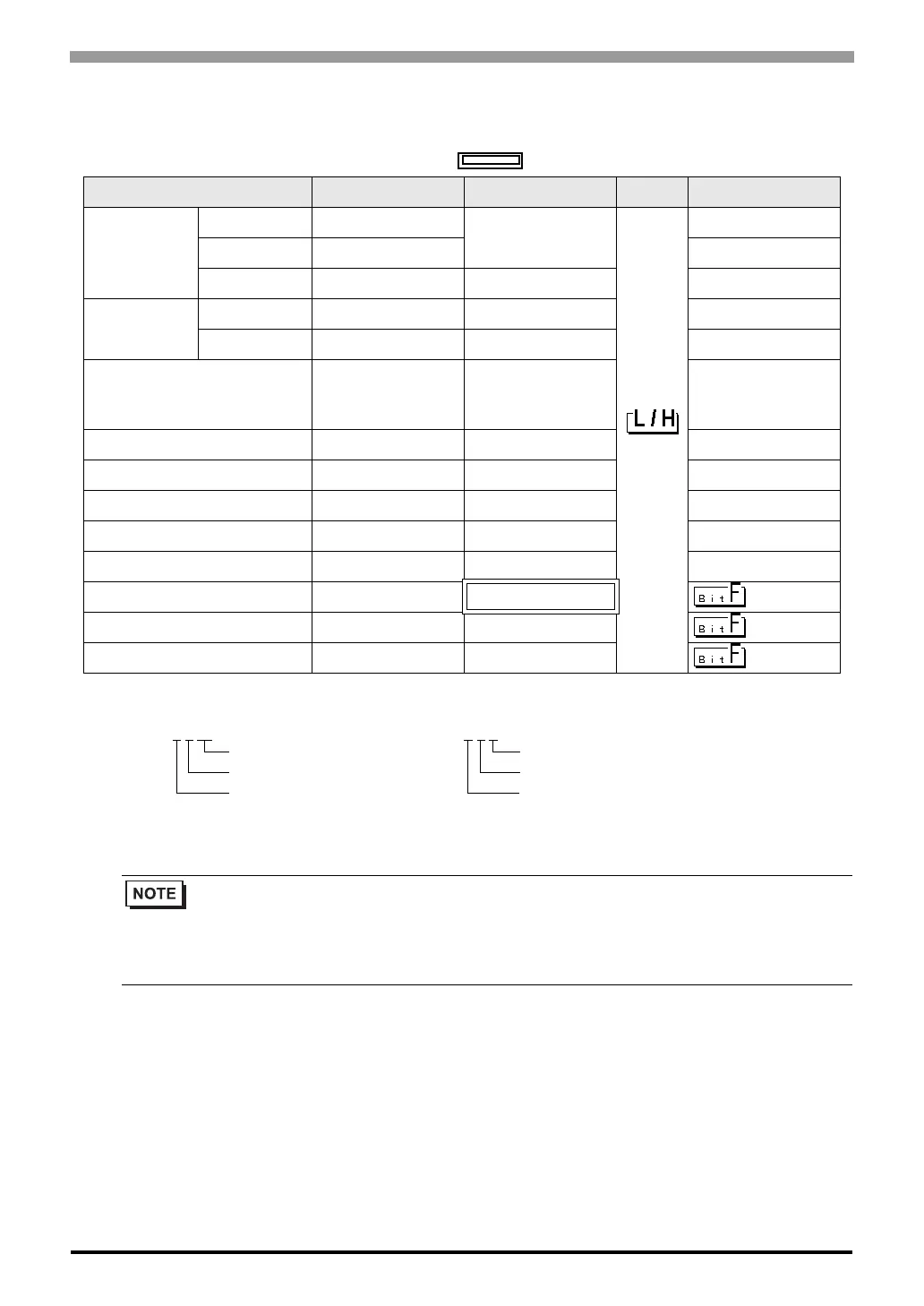

6.3 TCmini series
TC9-00
This address can be specified as system data area.
Device Bit Address Word Address 32 bits Notes
External Input
Relay
Contact Input X000 - X007
X00W - X00W
*1
*1 Device format is as follows:
Please refer to the manual of the External Device for more details.
DIP Switch X008 - X009
*1
Key Switch X100 - X10F X10W - X10W
*1
External Output
Relay
Transistor Y020 - Y027 Y00W - Y00W
*1
LED Y140 - Y147 Y14W - Y14W
*1
Internal Relay
X000 - X17F
Y000 - Y17F
R000 - R37F
X00W - X17W
Y00W - Y17W
R00W - R37W
*1
*2
*2 Results from External Input Relay or External Output Relay are given priority for areas mapped to External
Input Relay or External Output Relay.
Edge Relay E000 - E07F E00W - E07W
*1
Latch Relay L000 - L03F L00W - L03W
*1
Timer Relay T000 - T13F T00W - T13W
*1
Counter Relay C000 - C13F C00W - C13W
*1
Special AUX Relay A000 - A15F A00W - A15W
*1
Data Register ------ D000 - D27F
*1
T/C Register 1 ------ P000 - P13F
*1
T/C Register 2 ------ V000 - V13F
*1
• Please refer to the GP-Pro EX Reference Manual for system data area.
Cf. GP-Pro EX Reference Manual "LS Area (Direct Access Method Area)"
• Please refer to the precautions on manual notation for icons in the table.
)"Manual Symbols and Terminology"
E.g.
X 0
0 W
Specified register word
Position (0 to 7)
Rack Number (0 to F)
D F 7 F
Port Number (0 to F)
Position (0 to 7)
Rack Number (0 to F)
