5.9. Example of the inverter resetting at inverter error

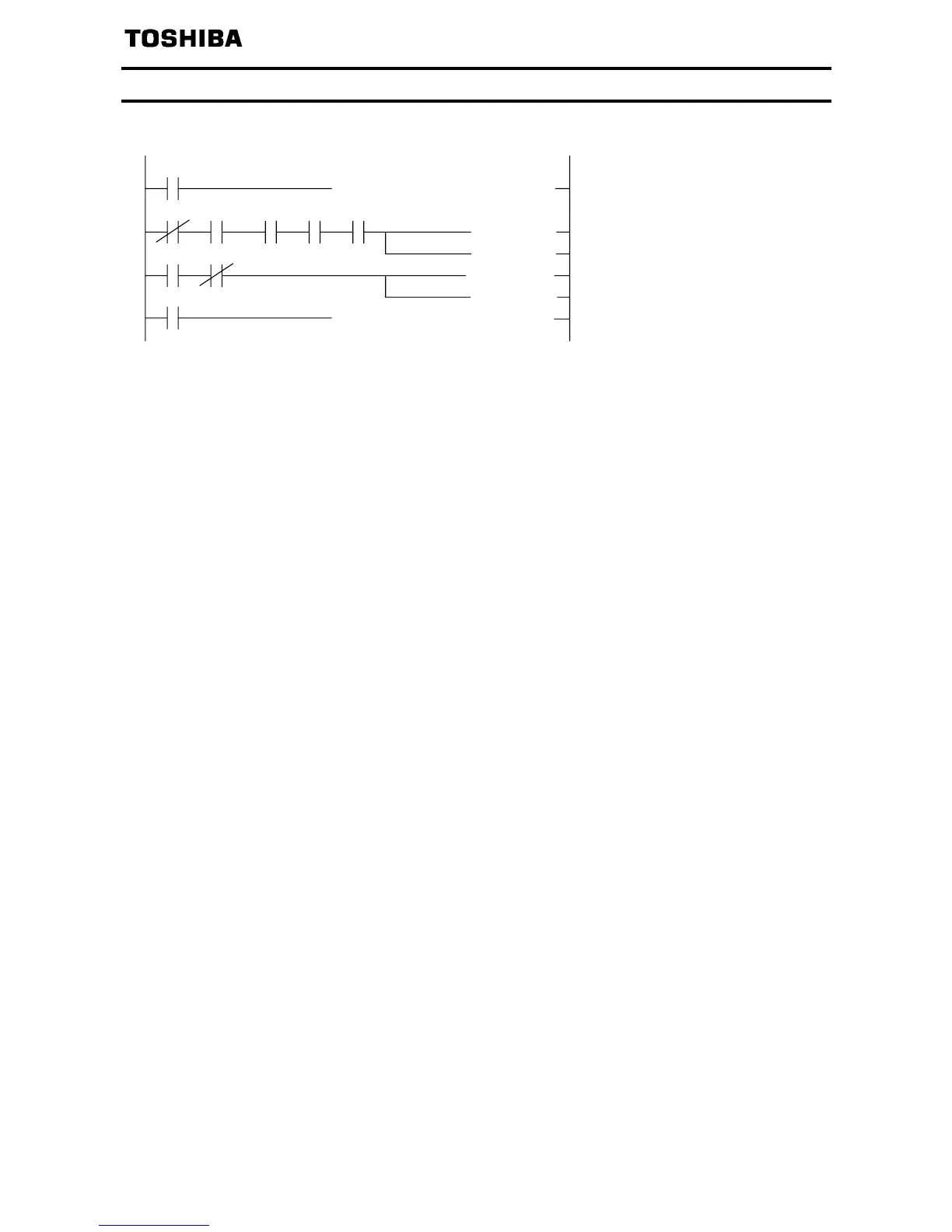

The following program resets the station 1 inverter.
M9036
[ FORM H0000 H00E0 K4M100 K2] Reads the remote input (RX00 to RX1F)
X0000 X000F
X0001
M126 X0020 data of buffer memory to M100 – M131.
[ SET M226] Switches on the error reset request flag (RY1A).
M302 M126 [ SET M302]
[ RST M226 ] Switches off the error reset request flag (RY1A)
M9036 [ RST M302] if the error status flag (RX1A) is off.
[ TO H0000 H0160 K4M200 K2 ] Writes M200 – M231 data to the remote
outputs (RY00 to RY1F) of buffer memory.
*The above inverter reset using RY1A may be made only when an inverter fault occurs.
Also, inverter reset can be made independently of the operation mode.
*Change the command mode to the network operation mode.
