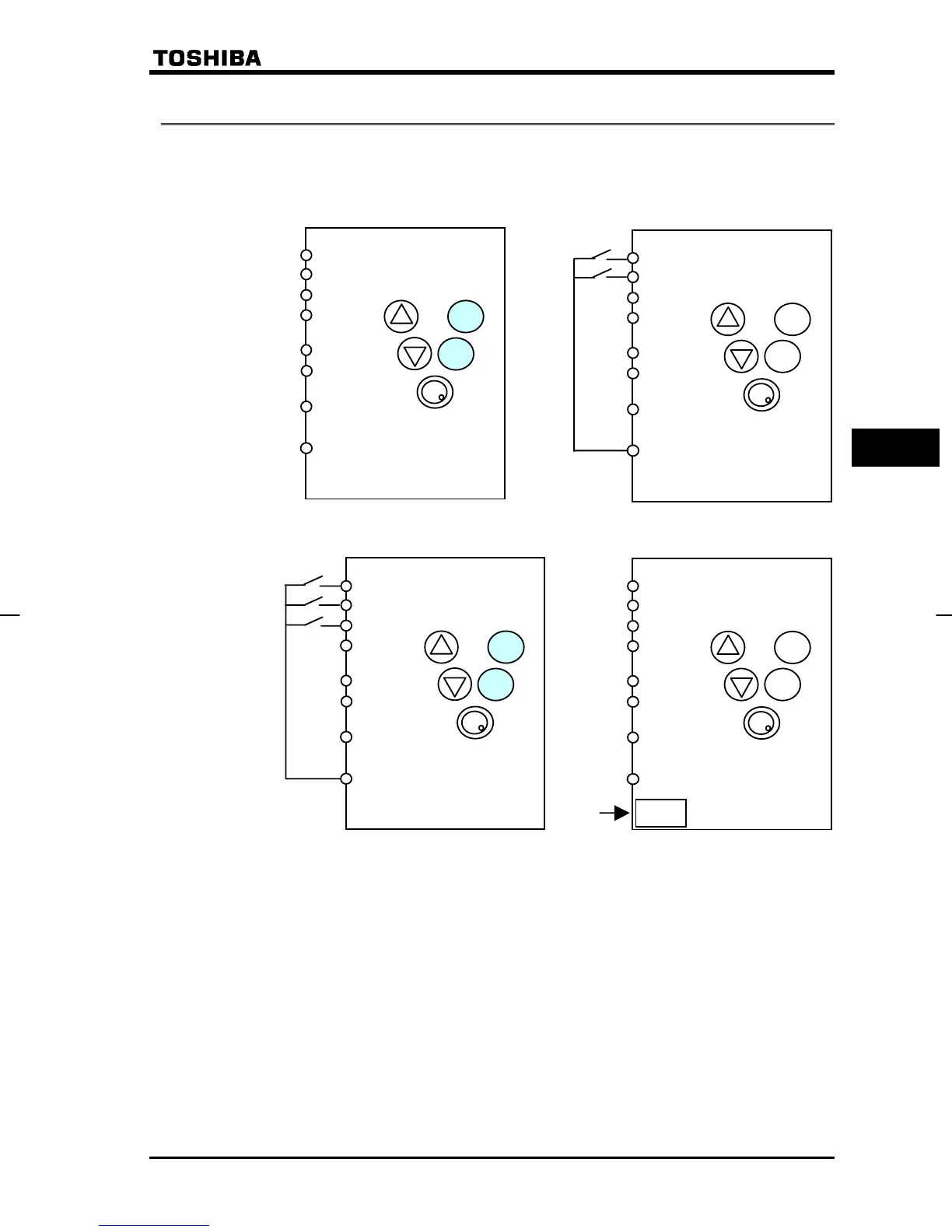

7.2 Setting the operation mode
Applied operation can be performed by selecting the operation mode. To set the operation mode,
use the basic parameter EOQF (command mode selection) and the input terminal selection
parameter.
(1) Operation panel operation (2) Terminal board operation
F
R
S1
S2
VI/S3
P15
P5
CC
RUN
STOP
F
R
S1
VI/S3
P15
P5
CC
RUN
STOP
S2
EOQF (Operation panel) EOQF (Terminal block)
(3) Operation panel/terminal board switching (4) Operation from an external input device
F
R
S1(PNL/TB)
S2
VI/S3
P15
P5
CC
RUN
STOP
F
R
S1
VI/S3
P15
P5
CC
RUN
STOP
S2
Optional connector
EOQF (Operation panel)
H (Panel/terminal board switching)
Switching from panel operation to terminal board
operation is done by inputting a panel/terminal board
switching signal.
Priority is given to the external input device when
the communications function is so set.
