Removal Procedure
1
Drain differential oil.
[Point
I]
2
Jack up the vehicle and remove front wheel
3
Remove the front axle shaft.
[Point
21
4
Remove the axle shaft oil seal.
[Point
31
5
Remove the bearing lock nut and plate.
[Point
41
6
Remove the outer bearing roller and front axle hub.
[Point
51
7
Remove the oil seal and inner bearing roller.
[Point
61
8
Remove the bearing outer race.
[Point
71
9 Remove the hub bolt.
Installation Procedure
The installation procedure is the reverse of the removal procedure.
Note:
Apply
thread tightener
(08833
-
00070)
on the hub bolt set nut before tightening.

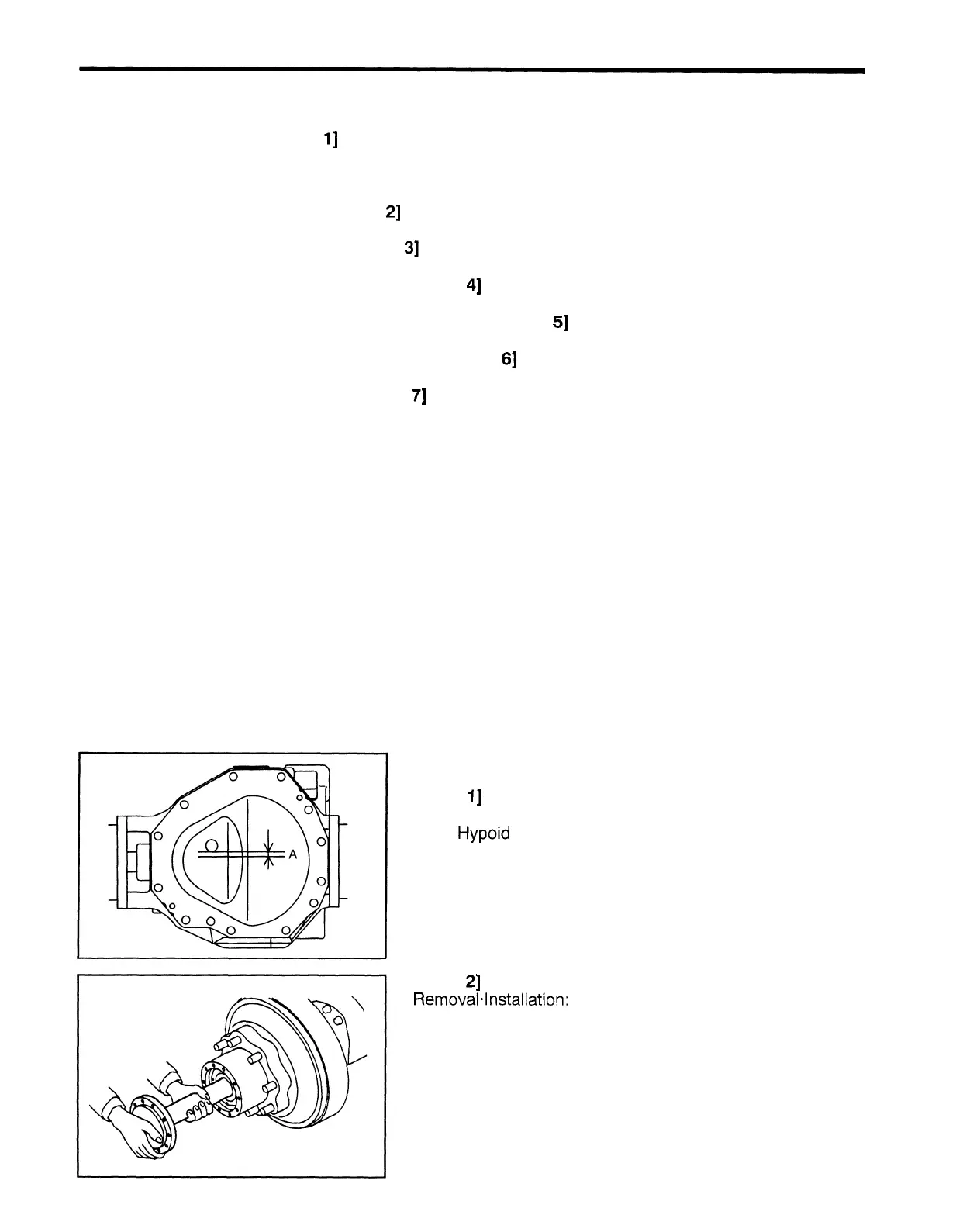

Point Operations
[Point
I]
Installation:
Fill
Hypoid gear oil to the specified level after installation.
A
=
15 mm (0.59 in) or less
[Point
21
Removal.lnstallation:
Carefully operate so as not to damage the oil seal by con
-
tact with the axle shaft.
