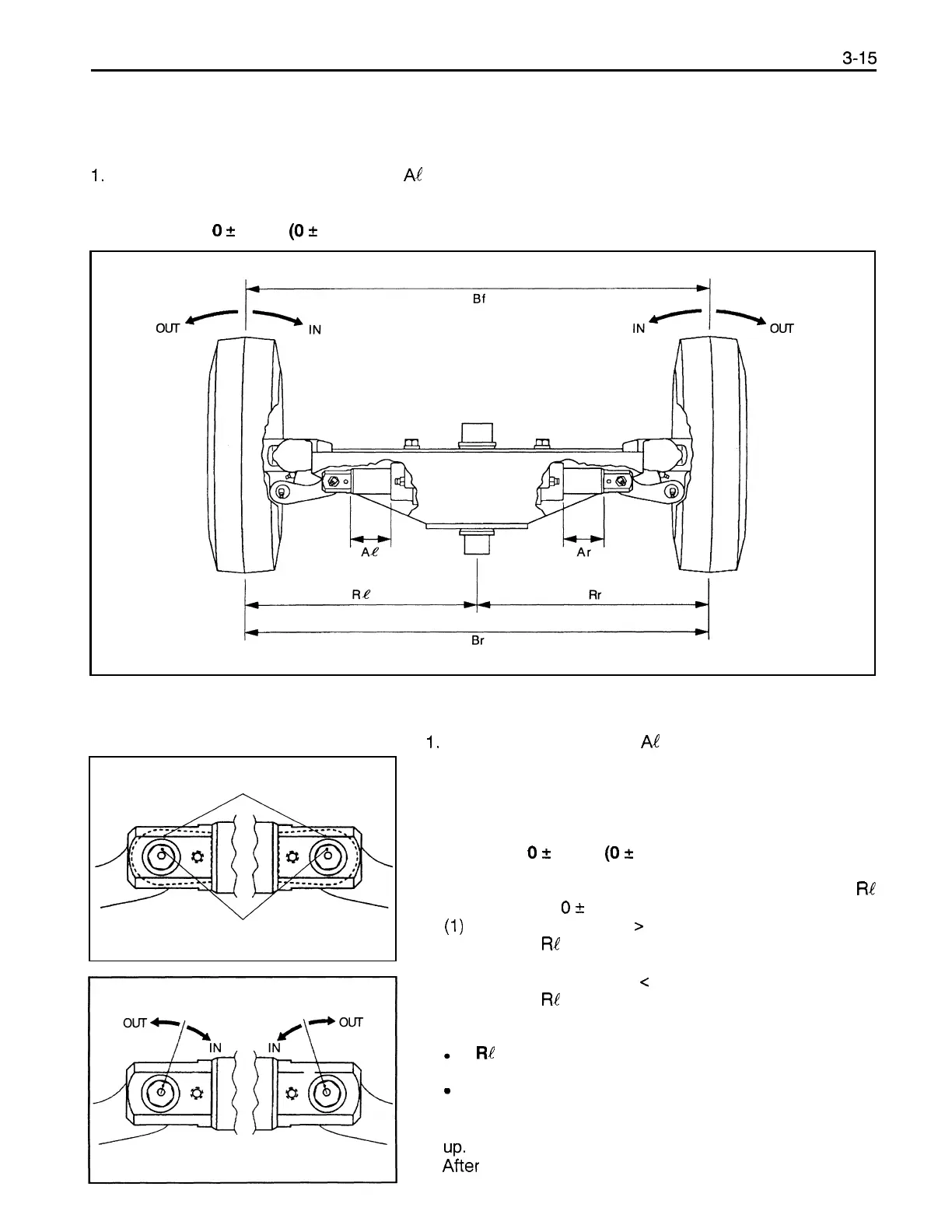

REAR WHEEL ALIGNMENT
Toe - in Inspection
1. Check to see that dimensions Ar and A! of the rear axle cylinder are equal.
2.
Measure the toe - in (Bf - Br).
Standard: 0 + 4 mm (0 + 0.16 in)
Toe - in Adjustment
Punch mark on plate side
Punch
mark on cylinder end pin side
1. Check to see that Ar and A! of the rear axle cylinder are
equal.
2. Align the punch mark on the cylinder end pin (eccentric pin)
with the punch mark on the plate on the front side for both
the
LH and RH sides.
3. Measure and adjust the toe - in (Bf - Br).
Standard: 0 + 4 mm (0 + 0.16 in)
If the standard is not satisfied, make adjustment by the cyl -
inder end pin in the range where the difference between Rt
and Rr is within 0 t 3 mm (0.1 2 in).
(I) When measued value > 4 mm (0.1 6 in):
Measure
Rt and Rr, and adjust the cylinder end pin on
the smaller side toward
IN.
(2) When measured value < 4 mm (0.1 6 in):
Measure
Rt and Rr, and adjust the cylinder end pin on
the greater side toward
OUT.
Note:
If Rt equals to Rr, adjust the same amount on the LH
and RH sides.
If the standard is not attained
by adjustment on one
side, make adjustment also on the other side.
4. Install the plate. The plate can be installed with either face
UP.
5. After adjustment, fully steer the tires and check to see that
they do not come into contact with the vehicle body.
