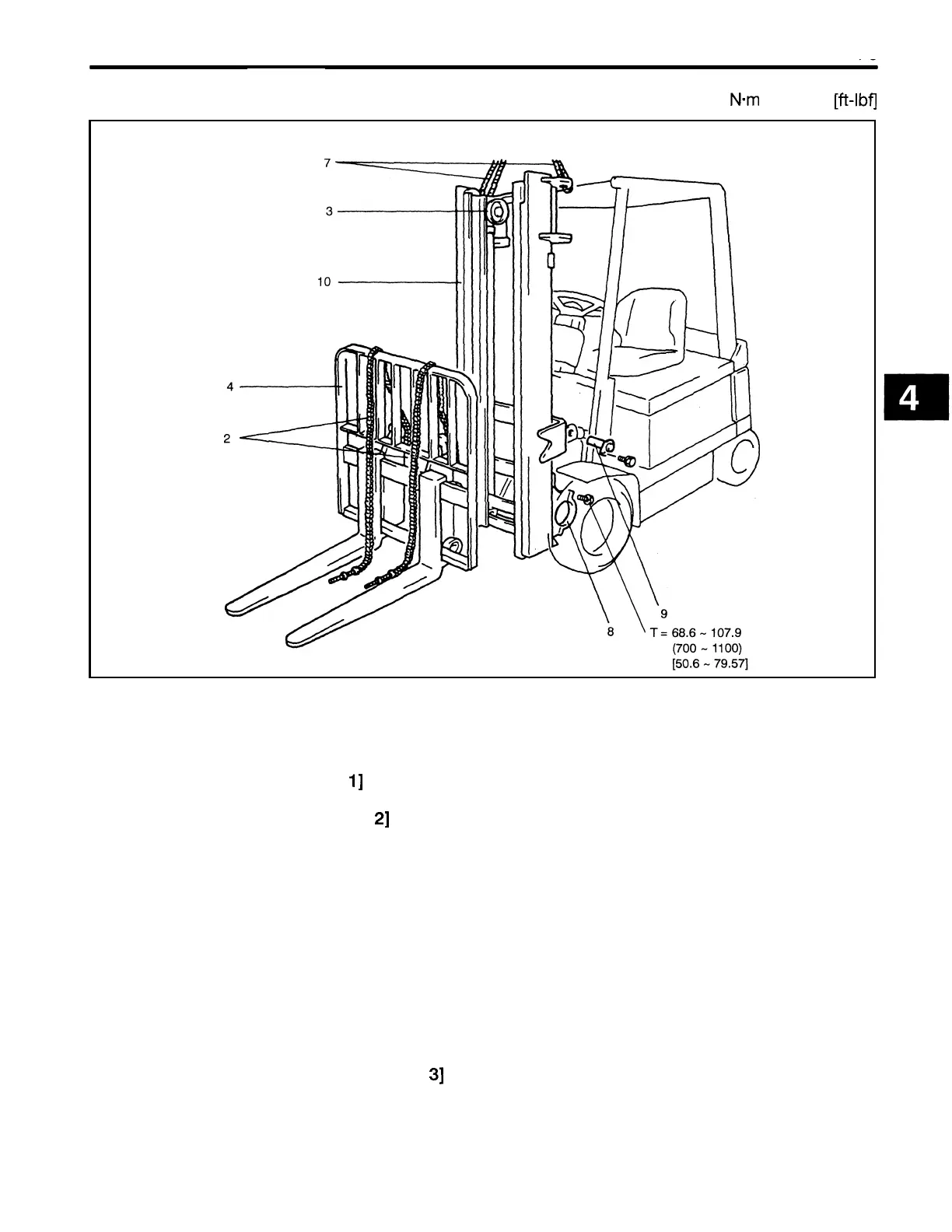

REMOVAL* INSTALLATION
T
=
N-m (kgf
-
cm) [ft-lbfl
Removal Procedure
1
Set the mast vertical and fully lower the fork.
2
Disconnect the chain.
[Point
11
3
Remove the chain wheel.
[Point
21
4
Remove the lift bracket. (For lift bracket removal, raise the inner mast until it comes off from the lift
bracket, and slowly run the vehicle backward to depart from the lift bracket.)
5
Remove the toe board.
6
Disconnect the overflow hose and high pressure hose. (Before hose disconnection, fully lower the
inner mast, operate the lift lever several times to release the residual pressure in the lift cylinder.)
7
Slightly hoist the mast.
8
Remove the mast support cap.
9
Remove the tilt cylinder front pin.
[Point
31
10
Remove the mast ASSY.
To Next Page
