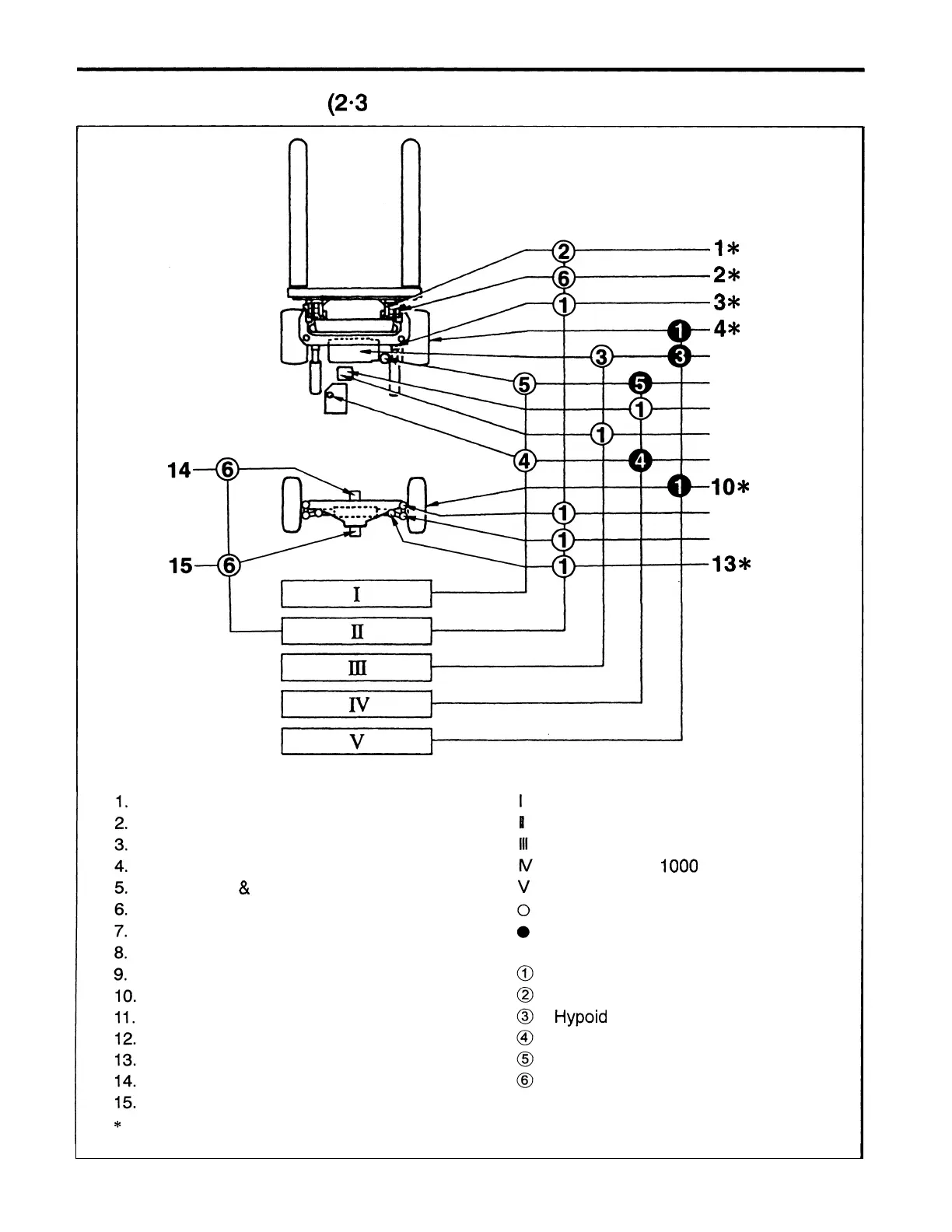

LUBRICATION CHART
(2.3
TON SERIES)
I*
2*
3*
4*
5
6
7
8
9
lo*
11*
12*
13*
Chain
Mast support bushing
Tilt cylinder front pin
Front wheel bearing
Differential
&
transmission
Brake fluid reservoir tank
Tilt steering locking mechanism
Tilt steering universal joint
Oil tank
Rear wheel bealing
Steering knuckle king pin
Tie rod end pin
Rear axle cylinder end pin
Rear axle beam front pin
Rear axle beam rear pin
Located on right and left sides
lnspect every
8
hours (daily)
lnspect every 40 hours (weekly)
lnspect every 170 hours (monthly)
lnspect every
1000 hours (6 monthly)
lnspect every 2000 hours (annually)
lnspect and service
Replace
MP grease
Engine oil
Hypoid gear oil
Hydraulic oil
Brake fluid
Molybdenum disulfide grease
