MAST DISASSEMBLY
-
INSPECTION
-
REASSEMBLY

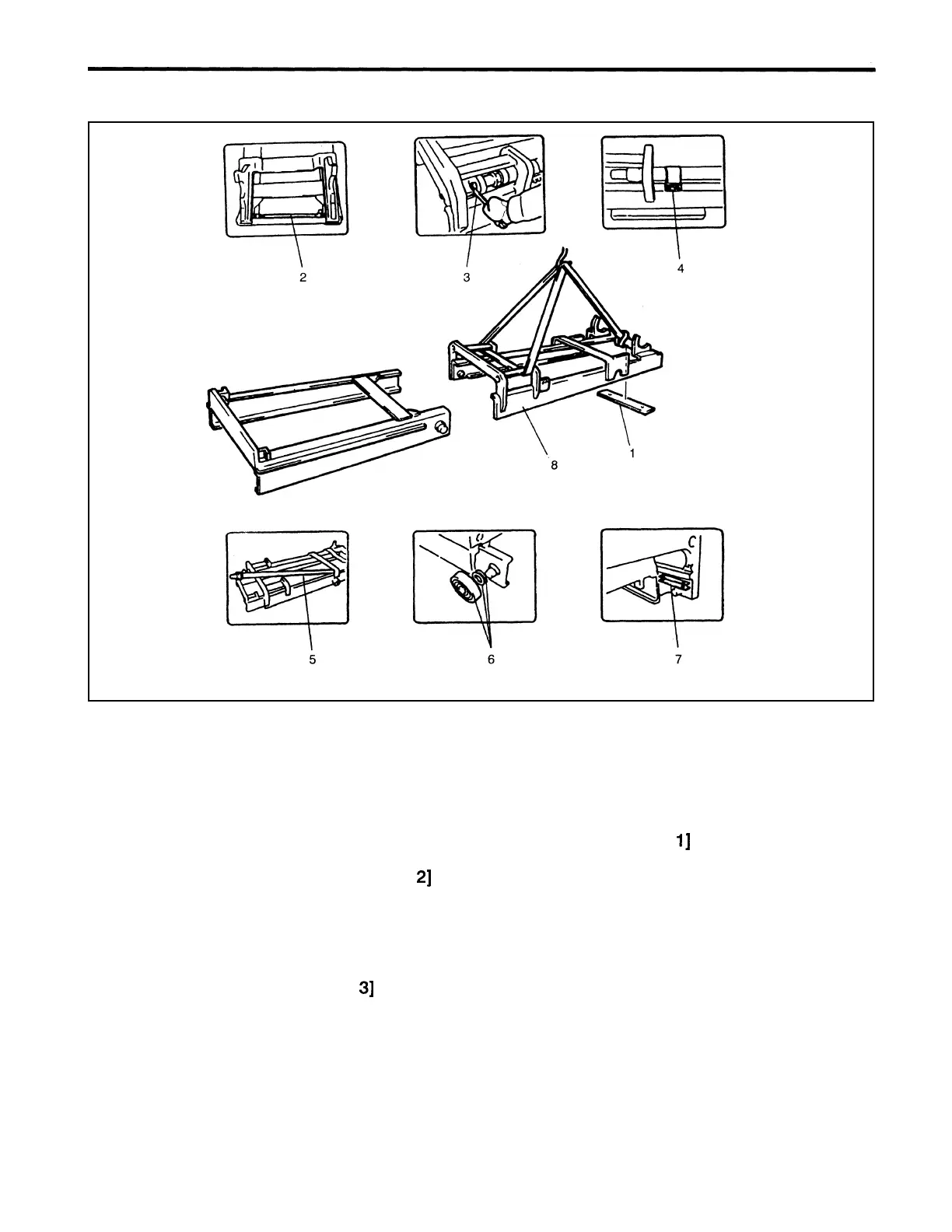

Disassembly Procedure
1
Remove the hose cover.
2
Disconnect the high pressure hose.
3
Remove each cylinder rod end set bolt, and take each rod end off.
[Point
11
4
Remove each cylinder support.
[Point
21
5
Remove each cylinder bottom set bolt, and remove each lift cylinder.
6
Slide the inner mast in the lowering direction, and remove the lift rollers.
7
Remove the mast strip.
[Point
31
8
Remove the outer mast.
Reassembly Procedure
The reassembly procedure is the reverse of the disassembly procedure.
