10. Rear View Monitor System

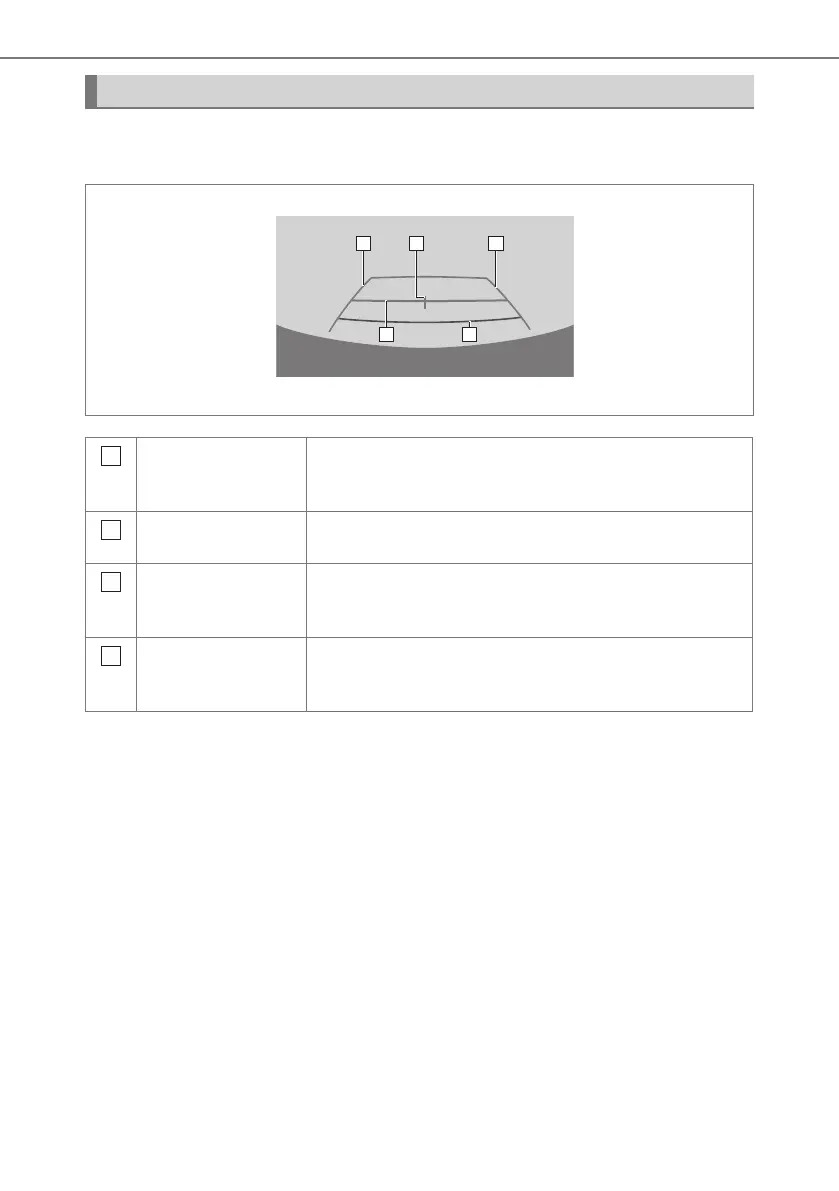

Screen Description
The rear view monitor system screen will be displayed if the shift lever is shifted
to the “R” position while the engine switch is in IGNITION ON mode.
1
Vehicle width guide
lines
Displays a guide path when the vehicle is being
backed straight up. The displayed width is wider than
the actual vehicle width.
2
Vehicle centre
guide line
This line indicates the estimated vehicle centre on the
ground.
3
Distance guide line Shows distance behind the vehicle. Displays a point
approximately 0.5 m (1.5 ft.) (red) from the edge of the
bumper.
4
Distance guide line Shows distance behind the vehicle. Displays a point
approximately 1 m (3 ft.) (blue) from the edge of the
bumper.
The rear view monitor system is cancelled when the shift lever is shifted into
any position other than the “R” position.
1
2
1
34
Check surroundings for safety.
To Next Page
