TP-Link ARCHER C3150 User Manual

83
Chapter 12
Customize Your Network Settings

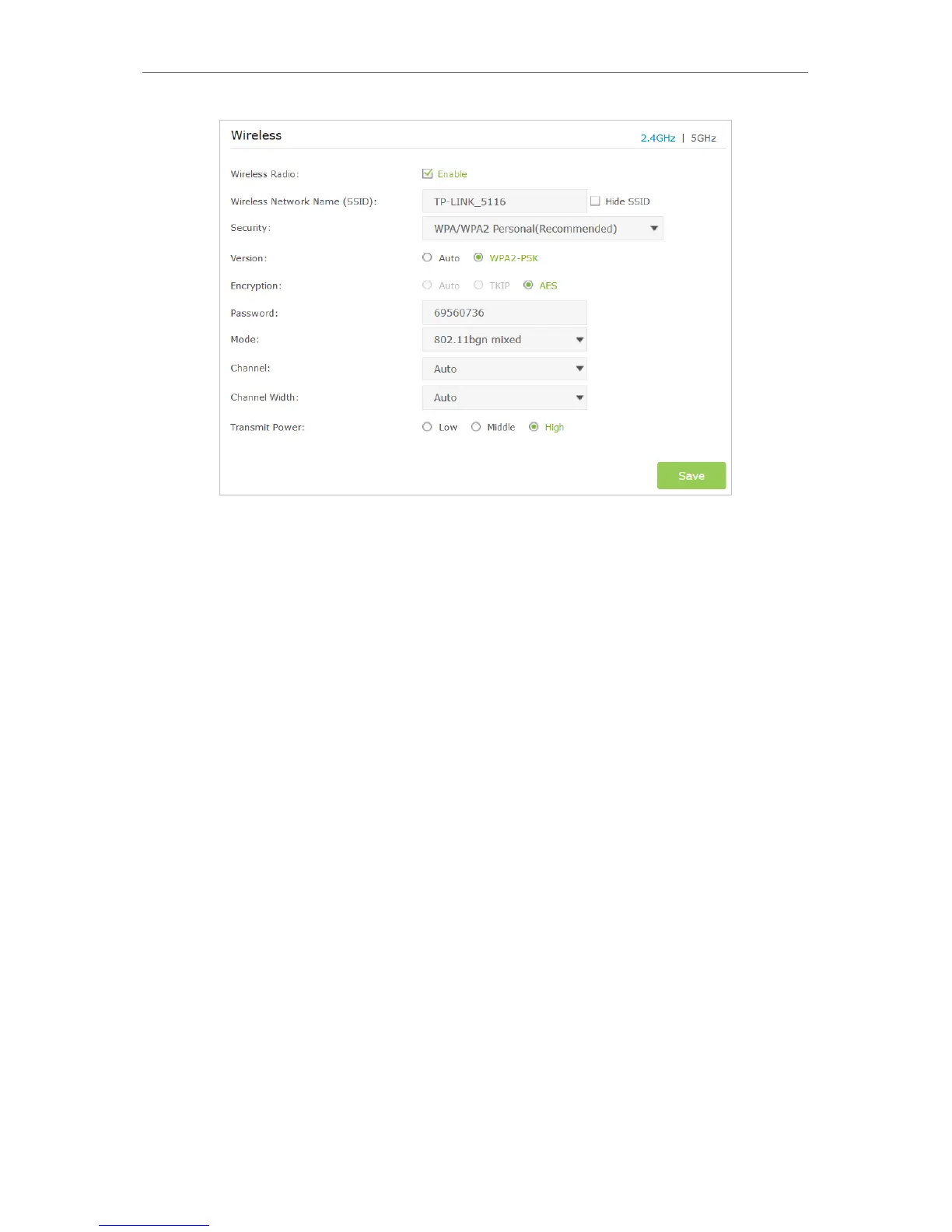

2. Select the wireless network 2.4GHz or 5GHz.
3. Select an option from the Security drop down list. The router provides four security
options, No Security, WPA/WPA2 - Personal (Recommended), WPA/WPA2 - Enterprise
and WEP. We recommend you don’t change the default settings unless necessary.
If you select other options, configure the related parameters according to the help
page.
In addition
• Mode - Select a transmission mode according to your wireless client devices.
802.11b/g/n mixed, 802.11g/n mixed or 802.11n only for 2.4GHz; and 802.11a/n/ac
mixed, 802.11n/ac mixed or 802.11ac only for 5GHz. It is recommended to just leave
it as default.
• Channel Width - Select a channel width (bandwidth) for the wireless network.
• Channel - Select an operating channel for the wireless network. It is recommended
to leave the channel to Auto, if you are not experiencing the intermittent wireless
connection issue.
• Transmit Power - Select either High, Middle or Low to specify the data transmit power.
The default and recommended setting is High.
12. 7. Use WPS for Wireless Connection
Wi-Fi Protected Setup (WPS) gives consumers an easier approach to set up a security-
protected Wi-Fi connection.
1. Visit http://tplinkwifi.net, and log in with the username and password you set for the
router.

TP-Link ARCHER C3150 Specifications

General

Modulation	1024-QAM
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	2167 Mbit/s
WLAN data transfer rate (first band)	1000 Mbit/s
Certification	CE, FCC, RoHS
Built-in processor	Yes
Processor frequency	1400 MHz
Memory card slot(s)	-
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Product type	Portable router
Product color	Black
SIM card slot	No
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Security algorithms	64-bit WEP, 128-bit WEP, IPSEC, WPA, WPA-PSK, WPA2
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power source type	AC
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	197.8 mm
Width	263.8 mm
Height	37.3 mm
