TP-Link RE580D User Manual

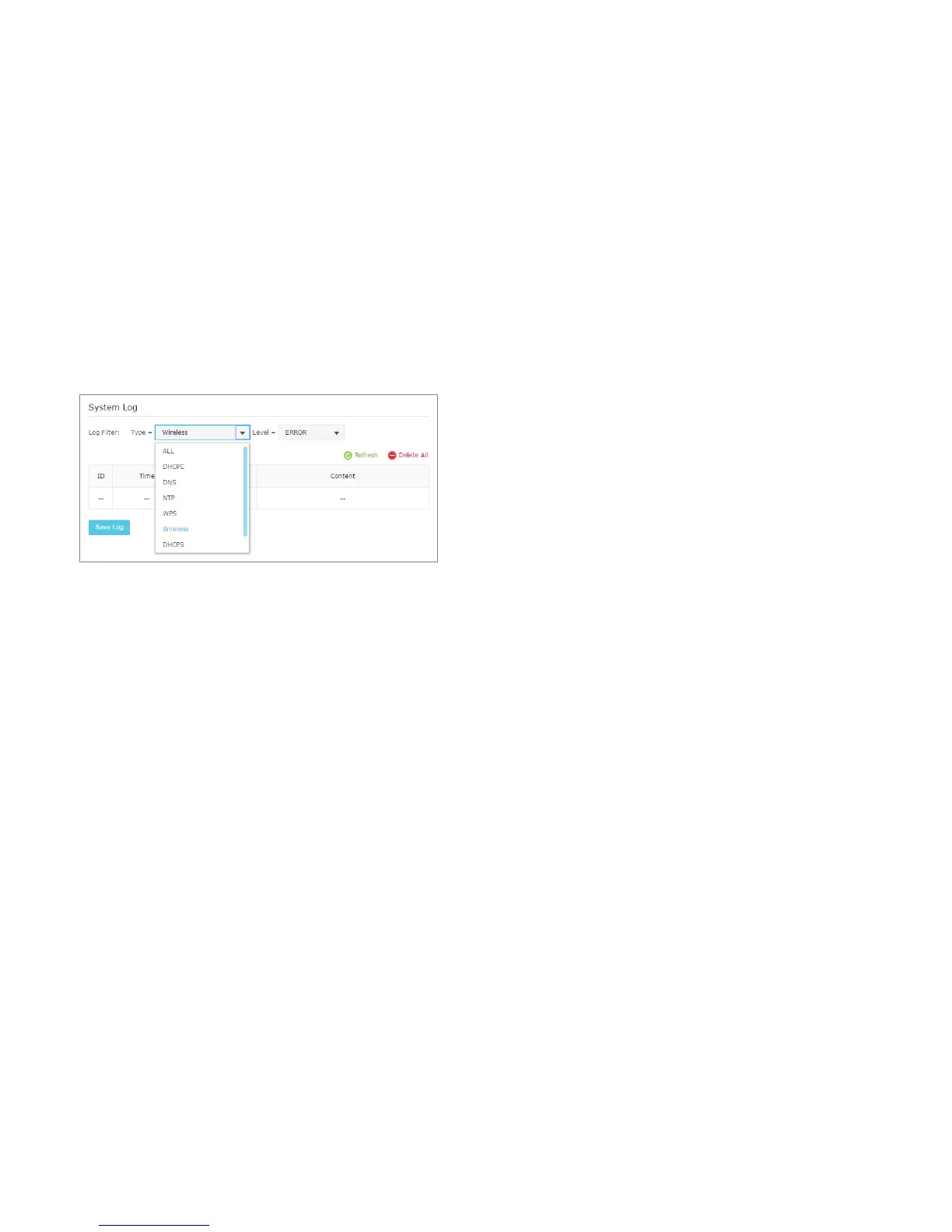

You can also click the following buttons to apply the settings.
 Click Refresh to update the system log.
 Click Delete All to permanently remove all logs.
 Click Save Log to save the system log as a .txt file on your
computer.
Reboot
1) Launch a web browser and type in http://tplinkrepeater.net.
2) Click Reboot on the top right corner to reboot the extender.
Logout
1) Launch a web browser and type in http://tplinkrepeater.net.
2) Click Logout on the top right corner to log out the management webpage
safely.
Manage the Extender 27

TP-Link RE580D Specifications

General

Type	Network transmitter
Maximum transfer distance	- m
Windows operating systems supported	Yes
Certification	CE, FCC
Antennas quantity	3
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2-PSK
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Wi-Fi data rate (max)	1900 Mbit/s
Ethernet LAN (RJ-45) ports	5
Output current	2.5 A
Output voltage	12 V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 30 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	240 mm
Package width	340 mm
Package height	76 mm
Sustainability certificates	RoHS
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	162 mm
Width	242 mm
Height	44 mm
