Chapter 4 Manage Your Access Point
4. 2. Diagnostic
Diagnostic is used to test the connectivity between the access point and the host or
other network devices.
1. Visit http://tplinkap.net, and log in with the password you set for the access point.
2. Go to System Tools > Diagnostic.

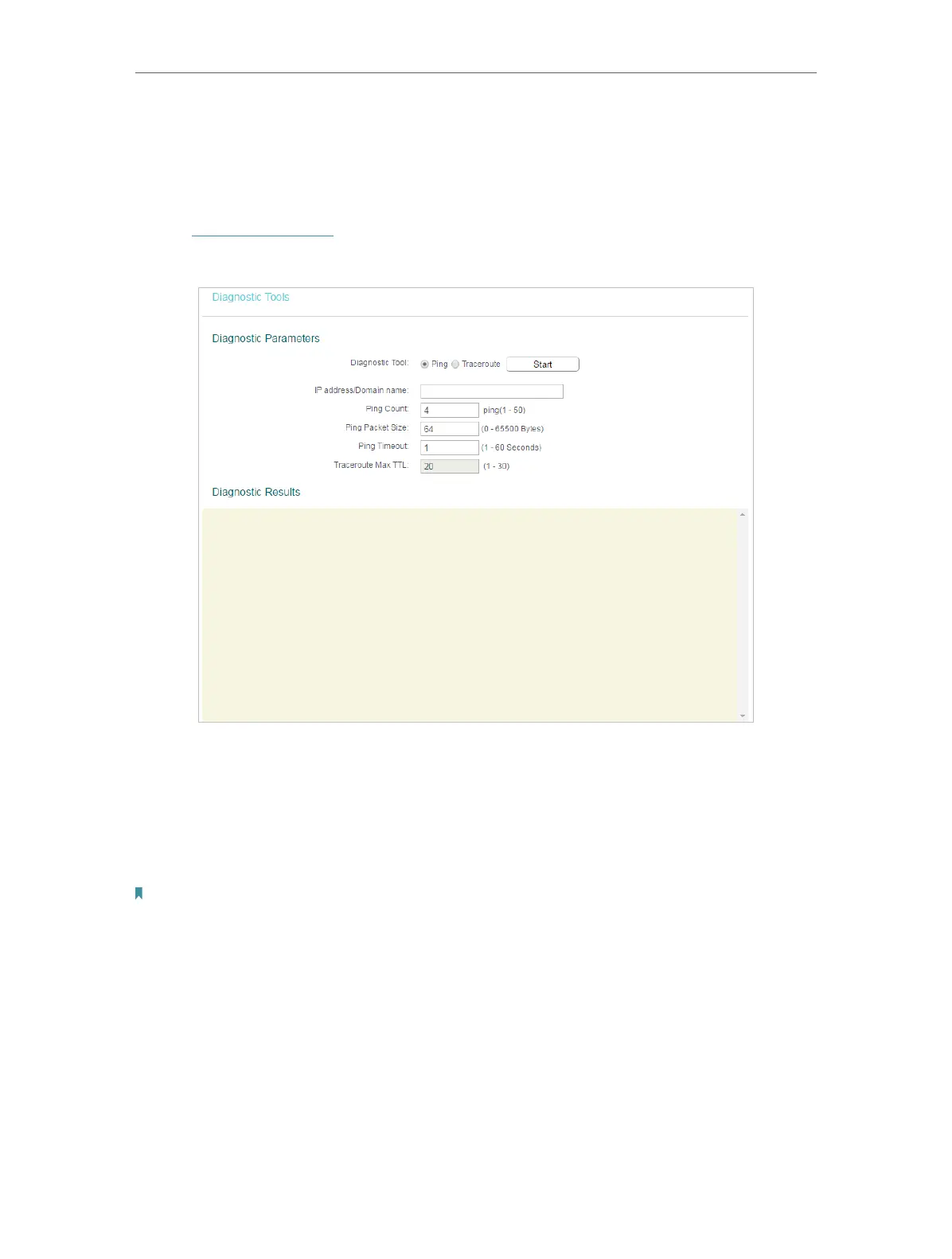

3. Enter the information with the help of page tips:
1 ) Choose the Diagnostic Tool as needed.
• Ping - This diagnostic tool troubleshoots connectivity, reachability, and name
resolution to a given host or gateway.
• Tracerouter - This diagnostic tool tests the performance of a connection.
Note:
You can use ping/traceroute to test both numeric IP address or domain name. If pinging/tracerouting the IP address is
successful, but pinging/tracerouting the domain name is not, you might have a name resolution problem. In this case,
ensure that the domain name you are specifying can be resolved by using Domain Name System (DNS) queries.
2 ) Enter the destination IP address (such as 192.168.0.254) or Domain name (such
as www.tp-link.com) in the IP address/Domain name field.
