Chapter 1 Get to Know About Your Access Point
Name Status Indication
(Ethernet)
On
The ETHERNET port is connected to a powered-on
device.
Off
The ETHERNET port is not connected to a powered-on
device.
(Wireless)
On The wireless function is enabled.
Off The wireless function is disabled.

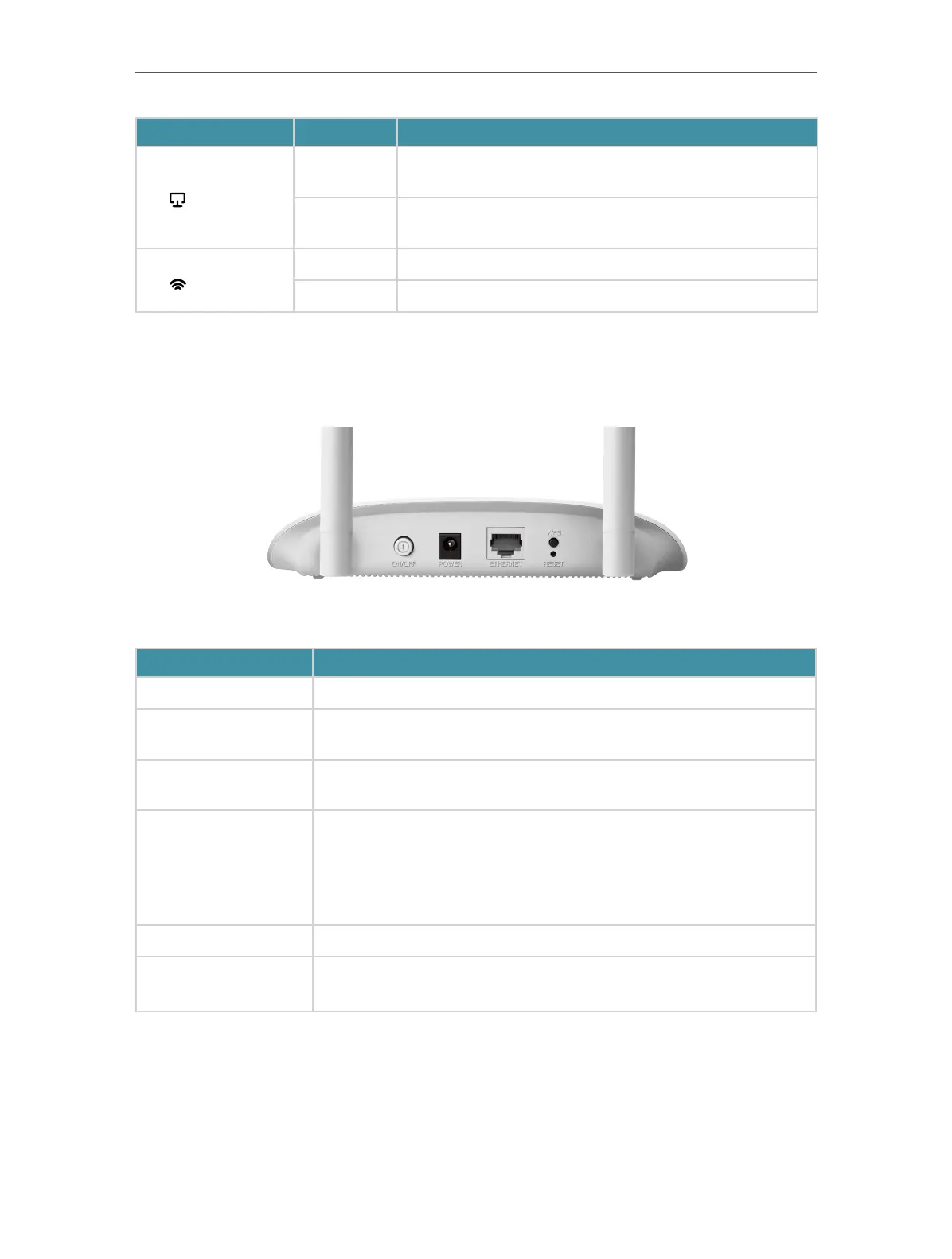

1. 2. 2. The Back Panel
The following parts (view from left to right) are located on the rear panel.
Ports or Buttons Description
ON/OFF To power on or off the access point.
POWER
For connecting the access point to a power socket via the provided
power adapter.
ETHERNET
The 10/100Mbps LAN port connects to a network device, such as a
switch or a router.
WPS
If your client devices, such as wireless adapters, support Wi-Fi
Protected Setup, then you can press this button to quickly establish
a connection between the access point and the client devices,
which automatically configures wireless security for your wireless
network.
RESET Press and hold this button until all the LEDs turn on momentarily.
Antennas
Used for wireless operation and data transmitting. Upright them for
the best Wi-Fi performance.

TP-Link TL-WA801N Specifications

General

5 GHz	No
2.4 GHz	Yes
Frequency band	2.4-2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	11g 6Mbps: -90dBm 11g 54Mbps: -77dBm 11n HT20 MC7: -73dBm 11n HT40 MC7: -70dBm
Ethernet LAN data rates	10, 100 Mbit/s
Transmitting power (CE)	15 dBm
Transmitting power (FCC)	20 dBm
Maximum data transfer rate	300 Mbit/s
Output current	0.6 A
Output voltage	9 V
Power over Ethernet (PoE) type supported	Passive PoE
Placement	Table
Certification	CE, FCC, RoHS
Product color	White
Antenna type	External
Antennas quantity	2
Antenna direction type	Omni-directional
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package type	Box
Package depth	223 mm
Package width	310 mm
Package height	70 mm
Package weight	560 g
Cables included	LAN (RJ-45)
Number of products included	1 pc(s)
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	129.7 mm
Width	181.6 mm
Height	34.7 mm
