TP-Link TL-WA801N User Manual

3

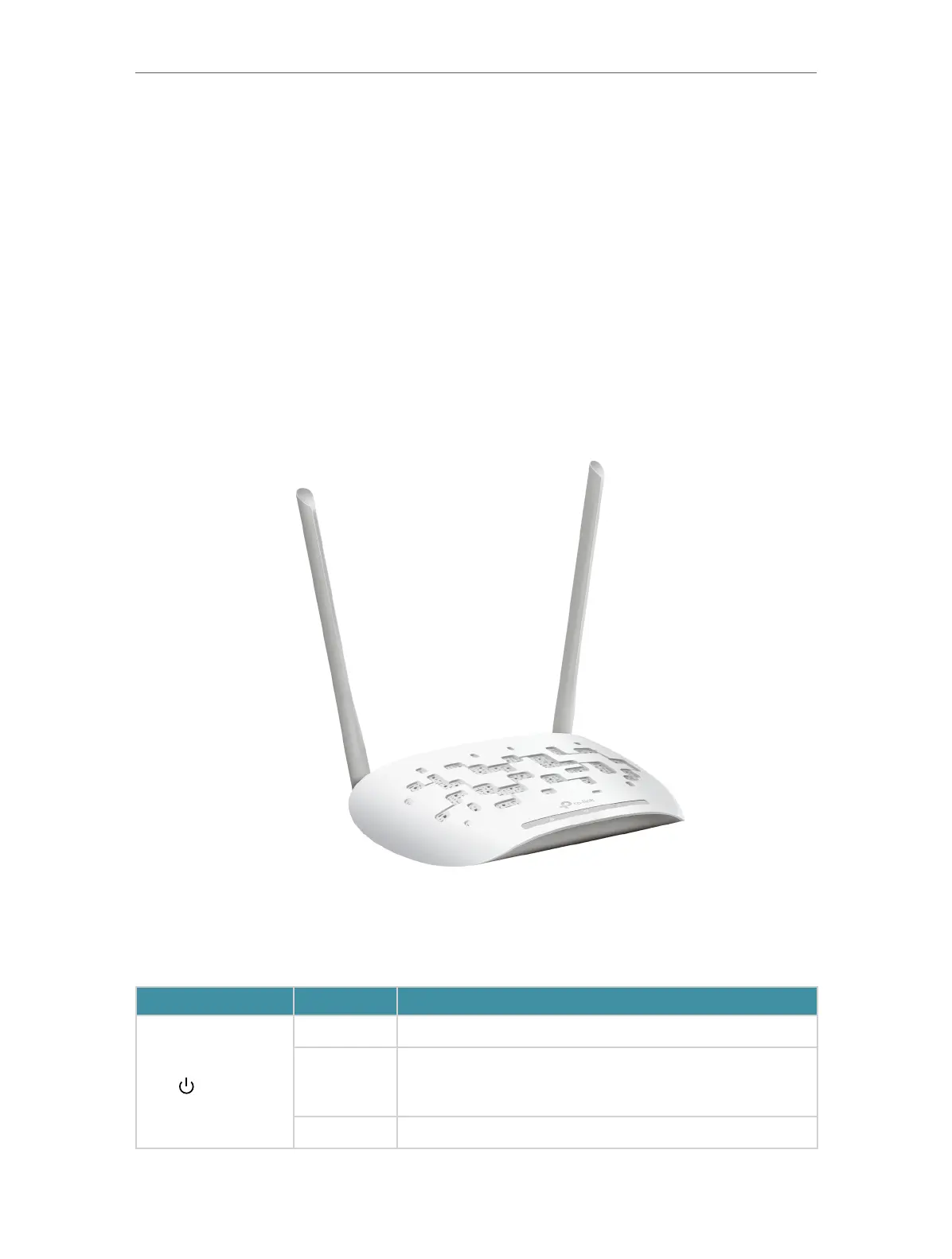

Chapter 1 Get to Know About Your Access Point
1. 1. Product Overview
The TP-Link Wireless N Access Point, with multiple operation modes, is designed to
establish or expand a scalable high-speed wireless N network or to connect multiple
Ethernet enabled devices to a wireless network, such as game consoles, digital media
adapters, printers, or network attached storage devices. The AP supports a host of
different functions that make your wireless networking experience more flexible than
ever before. Now, you can enjoy a better internet experience when downloading,
gaming, video streaming or with any other application that you may wish to use.
1. 2. Appearance
1. 2. 1. LED Explanation
The access point’s LEDs (view from left to right) are located on the front panel. You can
check the access point’s working status by following the LED Explanation table.
Name Status Indication
(Power)
On Power is on.
Flashing
The system is starting up, or the firmware is being
upgraded, or the WPS connection is in progress. Do not
disconnect or power off your access point.
Off Power is off.

TP-Link TL-WA801N Specifications

General

5 GHz	No
2.4 GHz	Yes
Frequency band	2.4-2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	11g 6Mbps: -90dBm 11g 54Mbps: -77dBm 11n HT20 MC7: -73dBm 11n HT40 MC7: -70dBm
Ethernet LAN data rates	10, 100 Mbit/s
Transmitting power (CE)	15 dBm
Transmitting power (FCC)	20 dBm
Maximum data transfer rate	300 Mbit/s
Output current	0.6 A
Output voltage	9 V
Power over Ethernet (PoE) type supported	Passive PoE
Placement	Table
Certification	CE, FCC, RoHS
Product color	White
Antenna type	External
Antennas quantity	2
Antenna direction type	Omni-directional
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package type	Box
Package depth	223 mm
Package width	310 mm
Package height	70 mm
Package weight	560 g
Cables included	LAN (RJ-45)
Number of products included	1 pc(s)
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	129.7 mm
Width	181.6 mm
Height	34.7 mm
