TP-Link WPA7517 User Manual

19
Chapter 3
Conguring via Web Management Interface

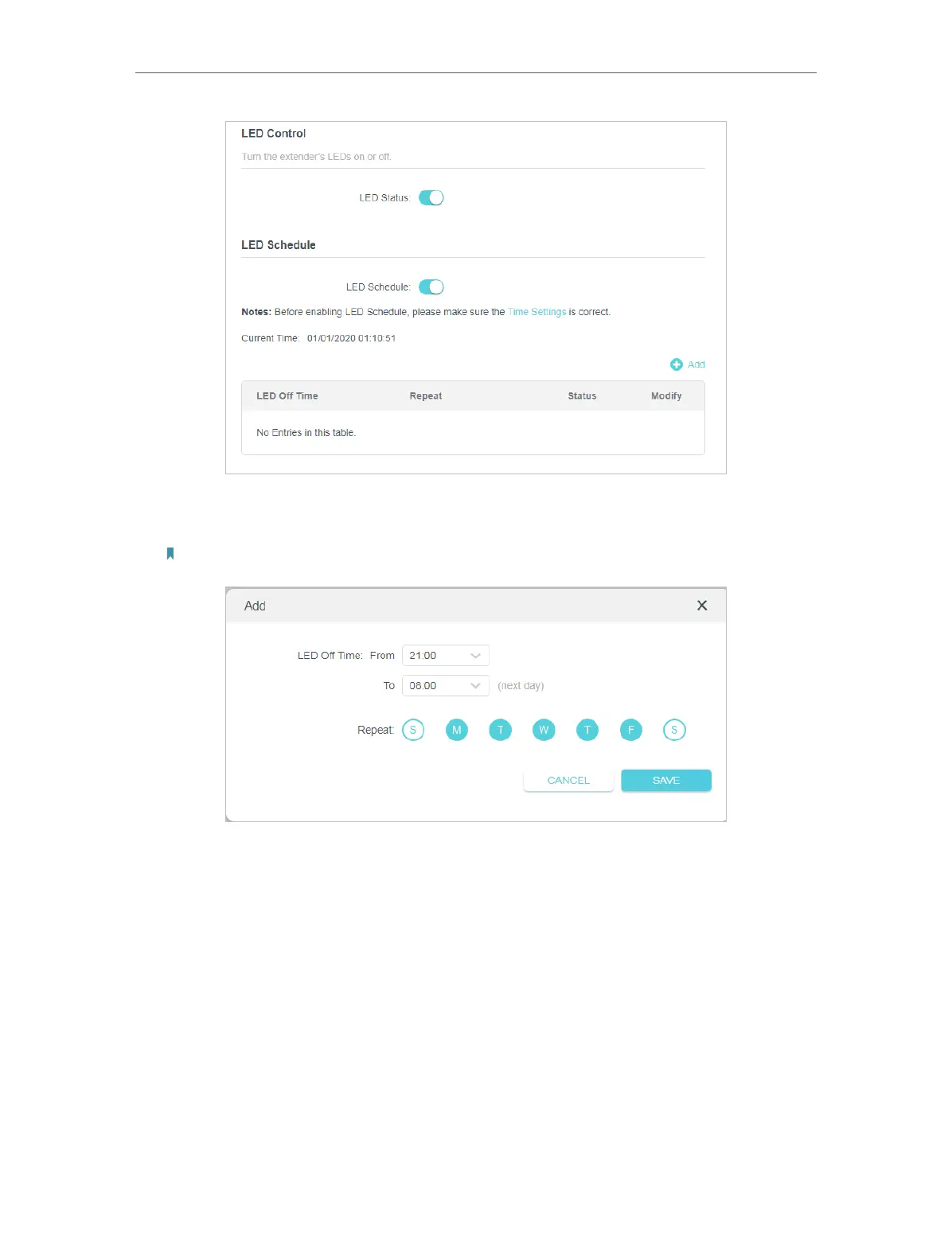

4. Enable LED Schedule.
5. Click Add and choose LED Off Time from 21:00 to 08:00 (next day).
Note: Please make sure that the system time is correct before using this function.
6. Click SAVE.
Now your LEDs will be turned off automatically at 21:00 and turned on at 8:00am the
next morning.
3. 7. Schedule Your Wireless Function
Automatically turn off my wireless network at times when I do not need the wireless
connection.
For example, I want to turn them off from 21:00 to 09:00 every weekday.
Done!
I want to:

TP-Link WPA7517 Specifications

General

Plug Type	EU, UK
LED Indicator	Power, Powerline, Ethernet, Wi-Fi
Range	300 meters over electrical circuit
Security	128-bit AES Encryption
Frequency Band	2.4 GHz and 5 GHz
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Certification	CE, RoHS
Type	Powerline Extender
Wi-Fi Speed	433 Mbps on 5 GHz, 300 Mbps on 2.4 GHz
Wi-Fi Standard	802.11ac
Ethernet Ports	1
Standards and Protocols	HomePlug AV2, IEEE 1901
Button	Pair, Reset
Compatibility	Compatible with all HomePlug AV and AV2 standard powerline adapters
Transmission Speeds	Up to 1000 Mbps
Product Type	Powerline Extender
Antenna	2 x Internal Antennas
Power Supply	100-240V~ 50/60Hz
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
