21
RLC-SVX02G-E4
Installation - Mechanical
Refer to nameplate for unit weight
and additional installation
instructions contained inside the
control panel. Other lifting
arrangements may cause
equipment damage or serious
personal injury.
Isolation and Sound
Emission
The most effective form of isolation
is to locate the unit away from any
sound-sensitive area. Structurally-
transmitted sound can be reduced
by elastomeric vibration
eliminators. Spring isolators are not
recommended. Consult an
acoustical engineer in critical sound
applications.
For maximum isolation effect,
isolate water lines and electrical
conduit. Wall sleeves and rubber-
isolated piping hangers can be used
to reduce the sound transmitted
through water piping. To reduce the
sound transmitted through electrical
conduit, use flexible electrical
conduit.
National and local codes on sound
emissions should always be
considered. Because the
environment in which a sound
source is located affects sound
pressure, unit placement must be
carefully evaluated. Sound-power
levels are available on request.

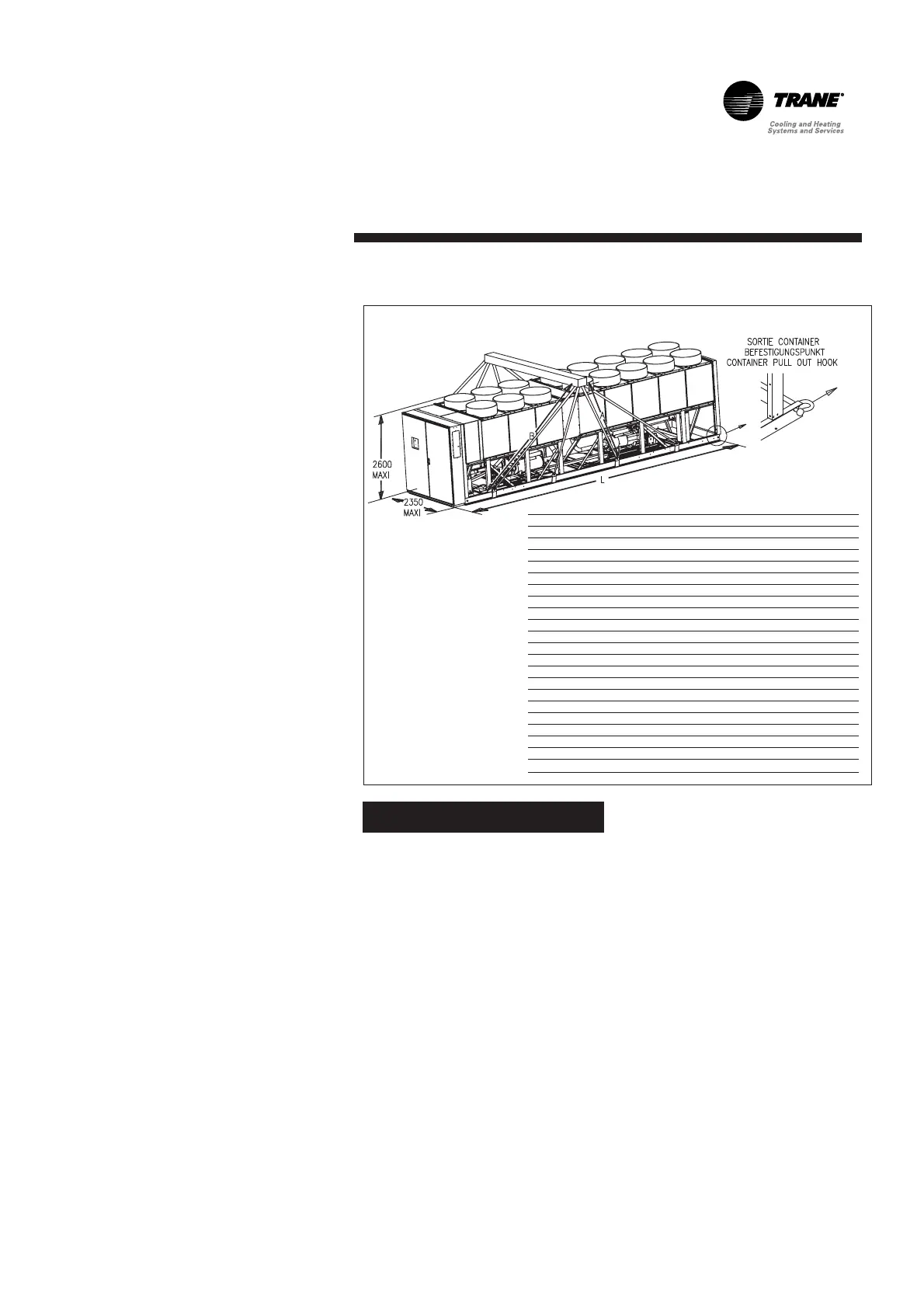

Figure 4 – Rigging the Unit, Sizes 230-400
Container Pull out Hook
Maximum Shipping Weight
RTAC L A Aluminum Copper
230 SE 7133 3220 7652 8433
240 SE 7133 3220 8031 -
250 SE 9138 3290 7820 8640
250 HE 9138 3290 8261 9157
255 XE 10056 3270 9436 -
275 SE 9138 3290 8581 9477
275 HE 10975 3400 9623 10735
275 XE 10975 3400 10168 -
300 SE 10056 3270 9296 10300
300 HE 11894 3430 10141 11365
300 XE 11894 3430 10843 -
350 SE 10406 3280 10617 11737
350 HE 12244 3430 11924 13261
355 XE 12244 3430 11713 -
375 SE 11325 3360 11279 12507
375 HE 13163 3380 12434 13883
375 XE 13163 3380 13196 -
400 SE 12244 3430 11881 13218
400 HE 14082 3410 13109 14669
400 XE 14082 3410 14029 -
