RLC-SVX02G-E4
Installation – Electrical
General Recommendations
The Warning Label shown in Figure
6 is displayed on the equipment and
shown on wiring diagrams and
schematics. Strict adherence to
these warnings must be observed.
Failure to do so may result in
personal injury or death.
All wiring must comply with local
codes. Specific electrical schematics
and connection diagrams are
shipped with the unit.
Units must not be linked to the
neutral wiring of the installation.
Units are compatible with the
following neutral operating
conditions:
TNS IT TNC TT
Standard Spécial Spécial Spécial
To avoid corrosion and overheating
at terminal connections, use copper
mono-conductors only. Failure to do
so may result in damage to the
equipment. In case of
multiconductor cable, an
intermediate connection box must
be added.
Do not allow conduit to interfere
with other components, structural
members or equipment. Control
voltage (115 V) wiring in conduit
must be separate from conduit
carrying low voltage (<30 V) wiring.
To prevent control malfunctions, do
not run low voltage wiring (<30 V) in
conduit with conductors carrying
more than 30 V.

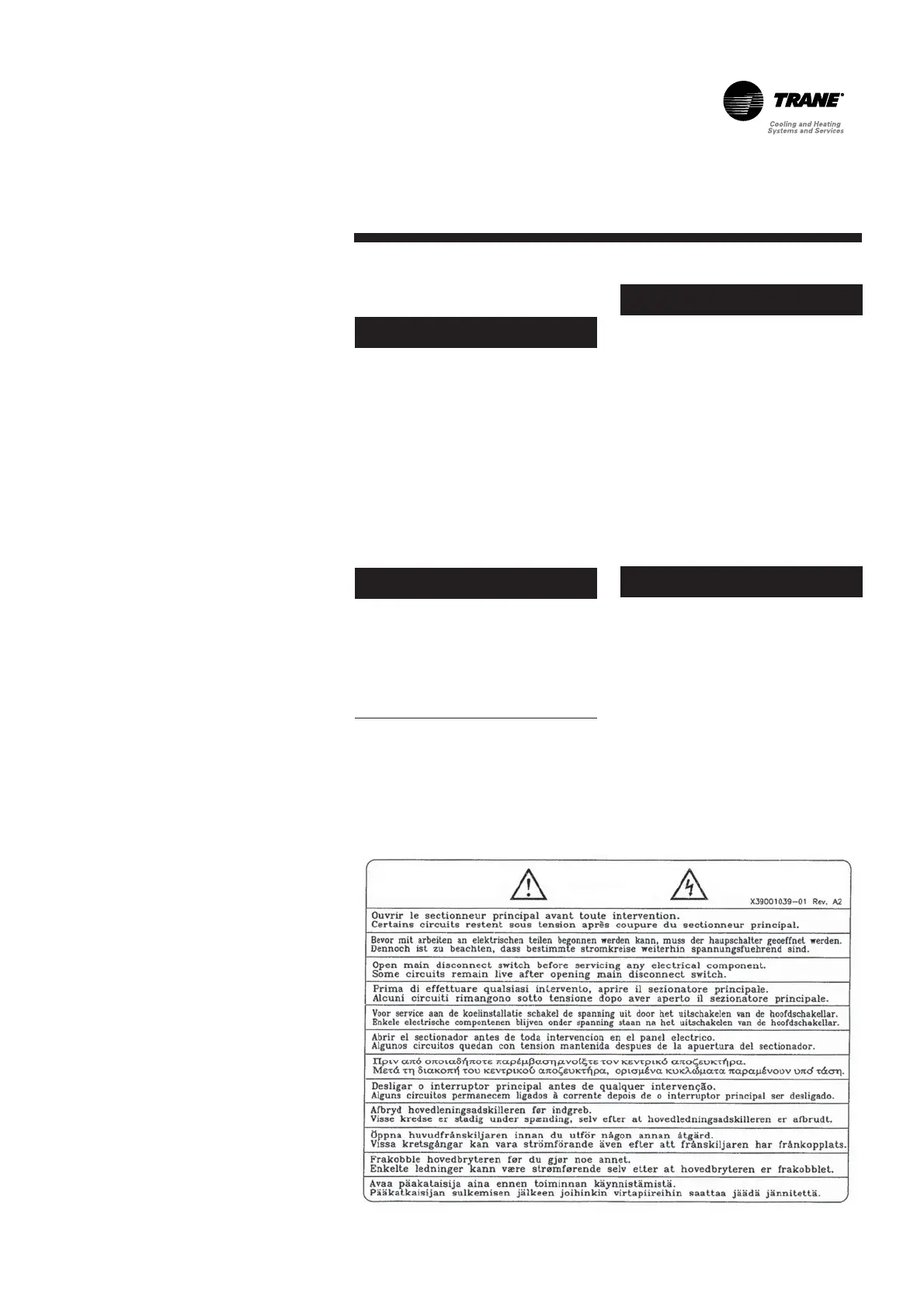

Figure 6 – Warning Label
