Functions
Setpoint/Fan Schedule Change Mode
This mode is used to set the heat and/or cool setpoint, occupancy, and the fan settings for the
selected day, day group, or multiple day groups. Day or Day Groups cannot be changed in this
mode. Default settings are shown in Table 8, p. 35.
To change the setpoint/fan schedule:
1. From the previous section, touch to select the period of day.
2. To change the setpoint of the selected period, touch either or to increment or
decrement the setpoint temperature.
3. For Auto H/C systems, touch or to toggle between cool setpoint and heat setpoint.
4. Touch area to change the fan mode for the selected period.
5. Touch to change the occupancy setting for the selected period to either occupied ( )or
unoccupied ( ), if desired.
6. Repeat steps 1 through 5 to set all fan, occupancy, and temperature setpoints for each period
as
desired.
7. When all changes are completed, touch to save settings. A second touch of will exit out
of Schedule
Change mode, and return to the Home screen. A 60-second time out will also
save.
Note: Day
or day groups cannot be changed in Setpoint/Fan Schedule Change Mode. The
user must return to Day/Period/Time Schedule Change Mode to select different days
or day groups. Touch and to toggle between Day/Period/Time
Schedule
Change Mode and Setpoint/Fan
Schedule Mode.
Note: Touch and to toggle between Day/Period/Time
Schedule Change Mode and
Setpoint/Fan Schedule Mode.

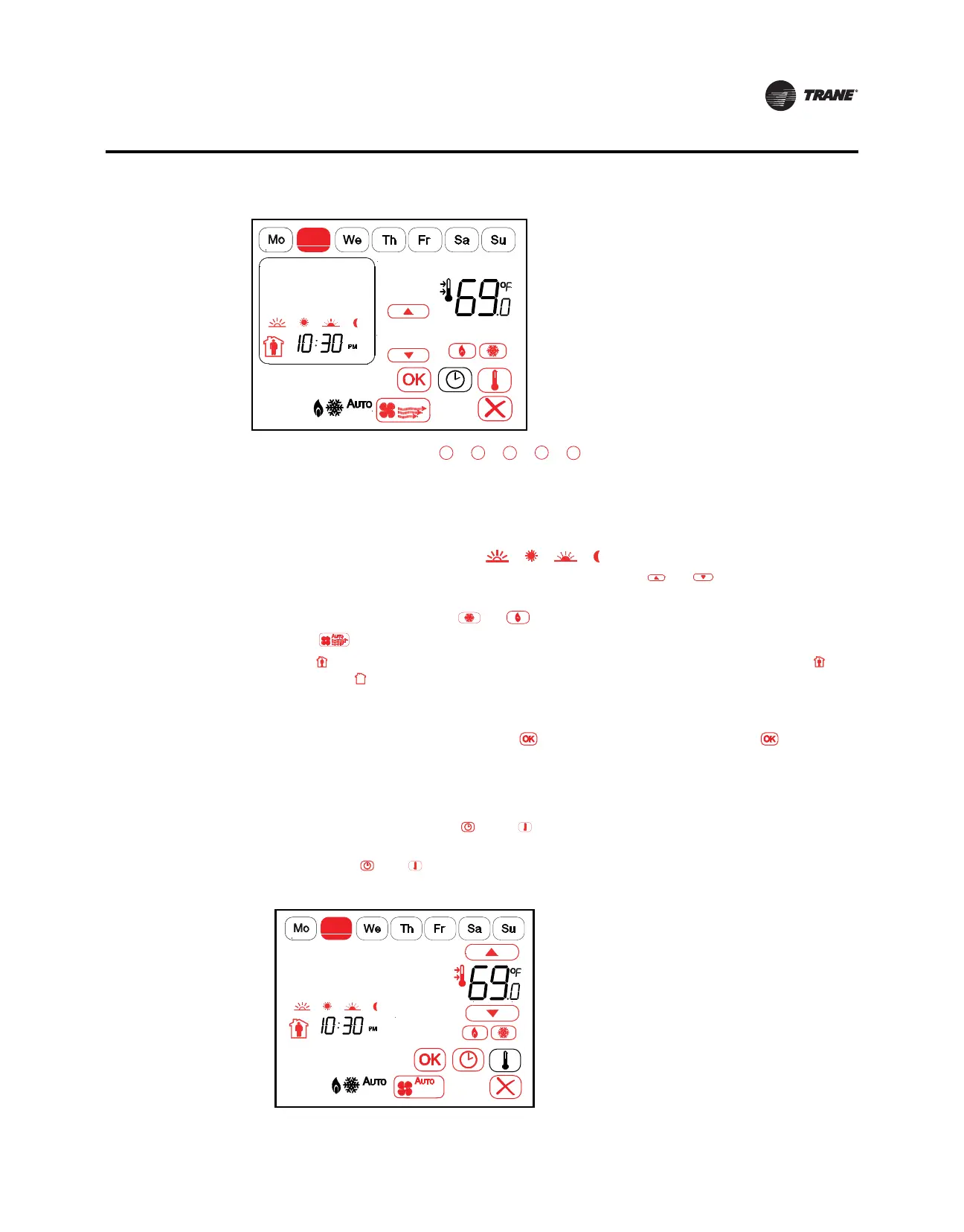

Top Arrow: Cool
Bottom Arrow: Heat
Tu
The following are the available day group schedules that can be configured
with Installation Option Number 0233:
• All Days [default]:(MoTuWeThFrSaSu)
• Five days, plus one day, plus one day: (Mo Tu We Th Fr) (Sa) (Su)
• Five days, plus two days: (Mo Tu We Th Fr) (Sa Su)
• Seven individual days: (Mo) (Tu) (We) (Th) (Fr) (Sa) (Su)
B C E
F
J
Top Arrow: Cool
Bottom Arrow: Heat
Tu
