Specifications and Dimensions
Specifications and Dimensions

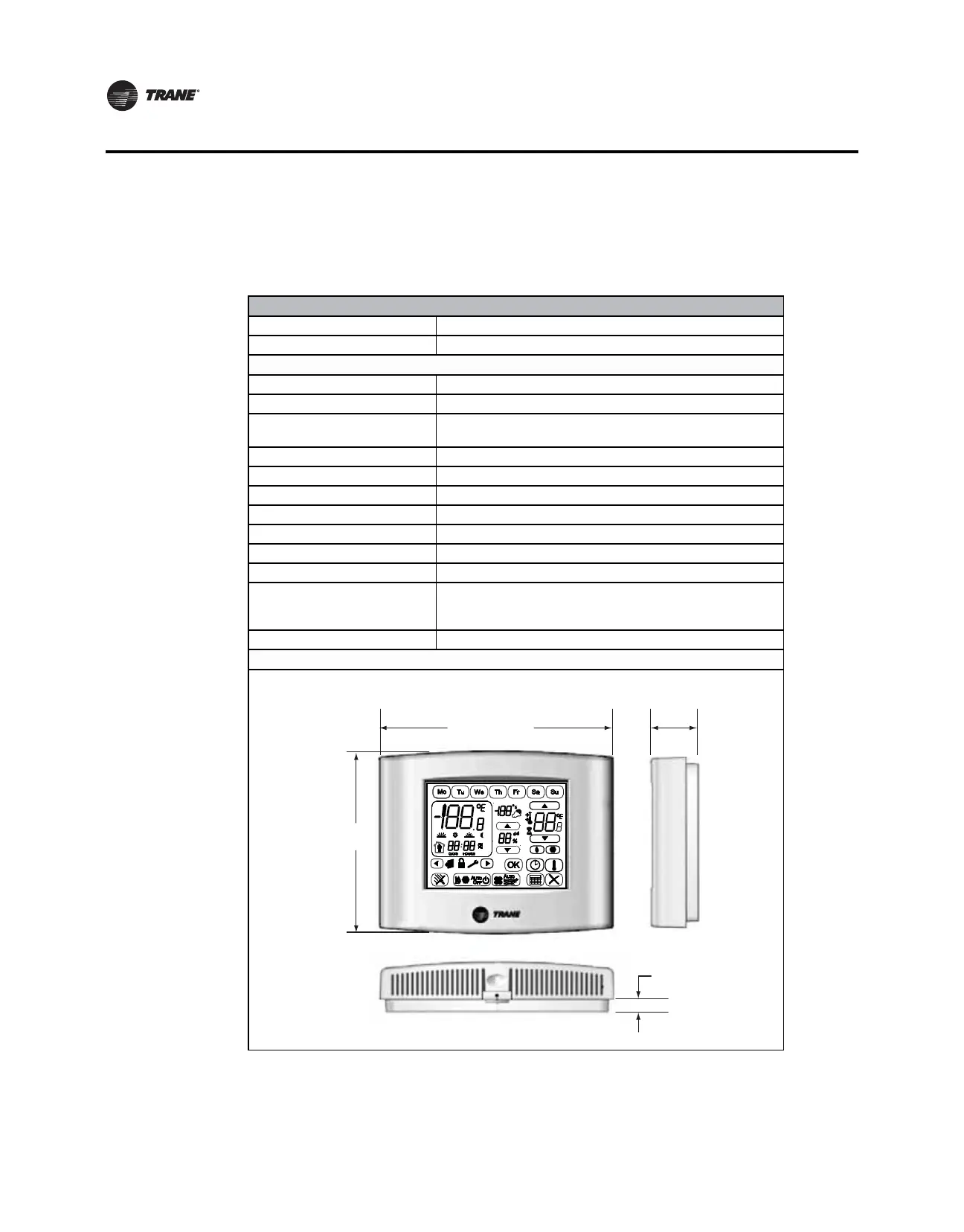

The following table and illustration provides the thermostat specifications and dimensions.
Table 1. Specifications and dimensions
Storage
Temperature: –4°F to 158°F (–20°C to 70°C)
Relative Humidity: Between 5% and 95% (noncondensing)
Operating
Temperature: 32°F to 122°F (0°C to 50°C)
Humidity: Between 5% and 95% (noncondensing)
Input Power:
24 Vac (minimum 18 Vac/maximum 32 Vac), 50Hz to 60Hz
Note: Frequency is selected using Configuration Option #0190.
Power Consumption: <2 Watts @24 Vac RMS nominal
Wire Size: 18 to 22 AWG
Output Terminal Rating: 1A @ 30 Vac
Temperature Accuracy: ±1.4°F (0.8°C) from 50°F to 90°F (10°C to 32.2°C)
Temperature Resolution: Configurable @1°F, 0.5°F, 1°C, 0.5C, 0.1°C
Humidity Accuracy: ±3% RH from 20% to 80% RH
Humidity Resolution: 1%
Housing Material:
• Polycarbonate/ABS Blend
• UV protected
• U.L. 94-5VA flammability rating
Mounting: 3.24 in (8.26 cm) for two mounting screws (supplied)
Dimensions
5.90 in
(150 mm)
1.30 in
(33 mm)
0.3 in
(8 mm)
4.65 in
(118 mm)
