BAS-SVN040B-EN 19
Installation
Step 10: Installing the Wi-Fi Router
Note: The Concierge Controller in its pre-wired enclosure should be operating and
communicating to all the equipment before installing the Wi-Fi router.
The optional Wi-Fi router is used
when the Concierge Cont
roller and the Concierge Display cannot
both be on the customer's Wi-Fi network.The router (Order Number: X13651632010) is set up to
allow the Concierge Controller and the Display to communicate on their own small (2 device) Wi-
Fi network.
1. Install the router near the
pre-wired enclo
sure containing the Concierge Controller.
2. Plug router into the accessory outlet
in the enclosure.
NOTICE
Avoid damage to the contents of the pre-wired enclosure when opening a knockout for the
Ethernet cable.
3. Connect the Ethernet cable included with the router to the router on one end and into Concierge
Controller's Port 2 on the other. See the following figure.

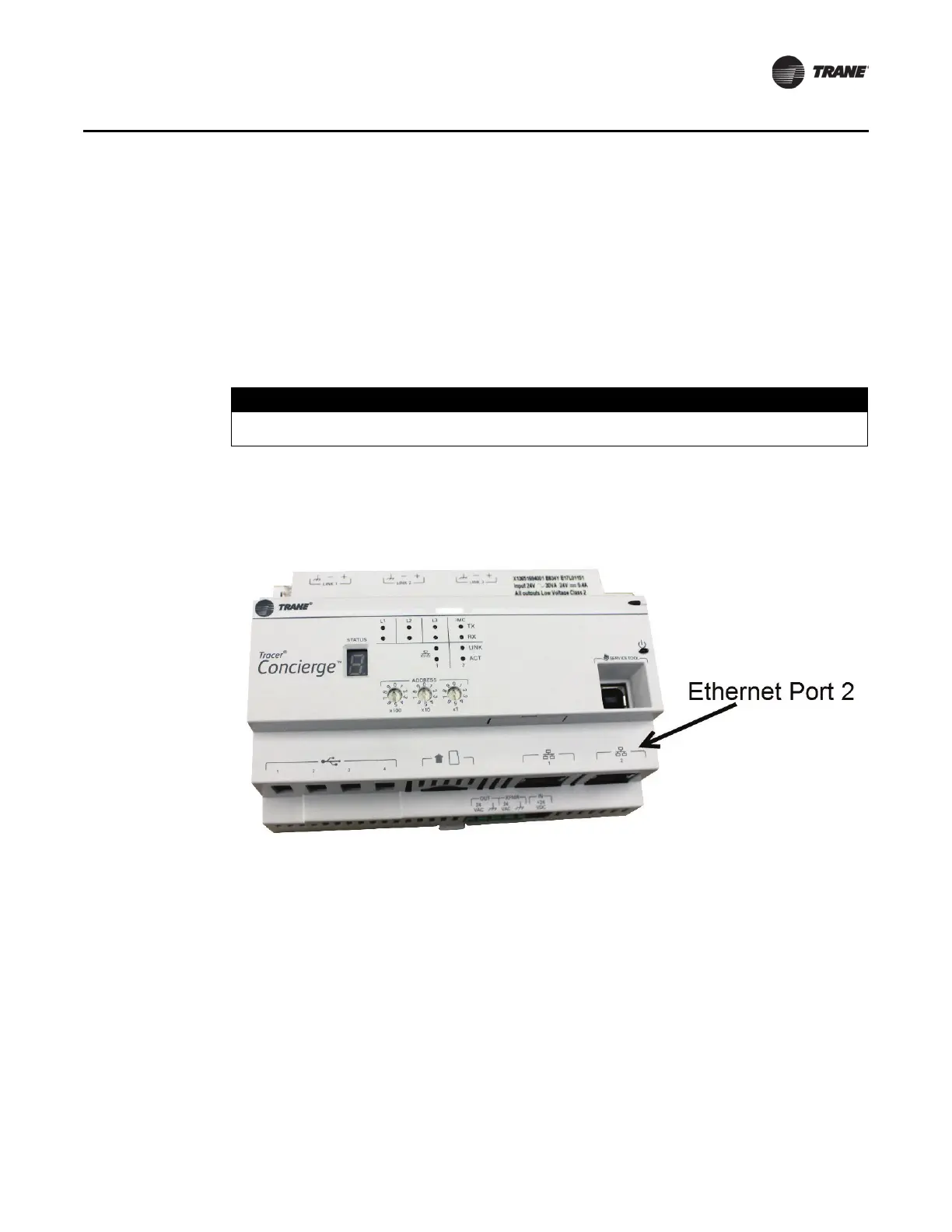

Figure 13. Concierge controller ethernet ports detail
4. Connect power to the Wi-Fi router. The pr
e-wired enclosure containing the Concierge
Controller also contains a convenience outlet.
Step 11: Project Commissioning Checklist
Verify that hardware installation is complete:
Verify the Concierge Controller panel is attached to the wall and power is wired
to it.
Verify Concierge Controller Air-Fi® Wireless is addressed properly per the submittal and/or the
Air-Fi® Wireless Network Best Practice guide BAS-SVX55C-EN.
Verify the Ethernet Cable for
the customer’s n
etwork is connected to Concierge Controller
Ethernet Port 1 (if applicable).
Verify that any rooftop units with Air-Fi® Wireless are connected and addressed properly per the
sub
mittal and/or the Air-Fi® Wireless Network Best Practice guide BAS-SVX55C-EN.
