Trane Tracer MP501 User Manual

CNT-SVX08F-EN 7
Overview
Clearances
For wiring, ventilation, and maintenance, provide the following minimum clearances for the
controller:
Plastic Cover Model
• Front: 4.0 in. (102 mm)
• Each side: 1.0 in. (25 mm)
• Top and bottom: 4.0 in. (102 mm)
Metal Cover Model
• Front: 24.0 in. (610 mm)
• Each side: 2.0 in. (51 mm)
• Top and bottom: 1.0 in. (25 mm)

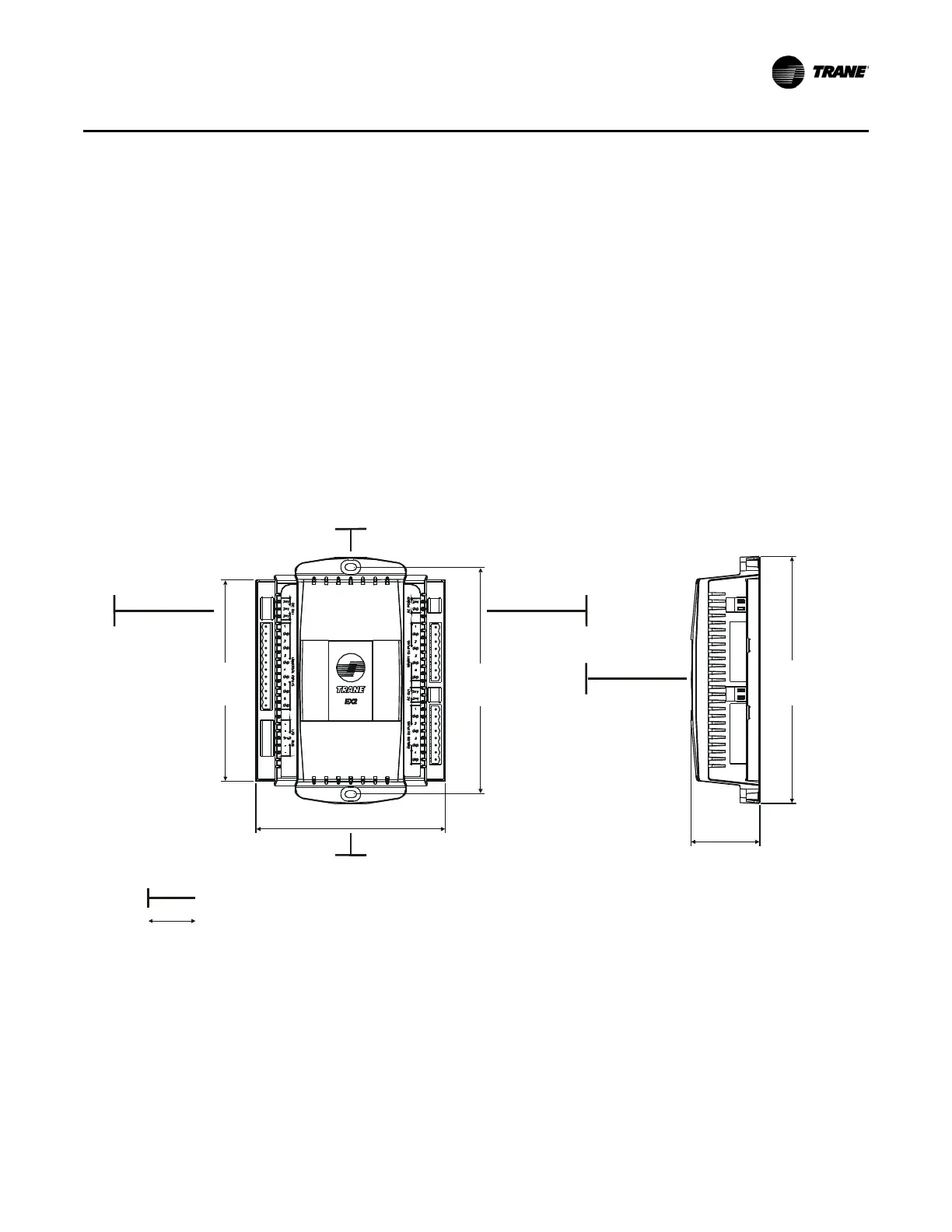

Figure 1.
4 in.
(102 mm)
1 in.
(25 mm)
6.31 in.
(160 mm)
5.375 in. (137 mm)
4 in.
(102 mm)
1 in.
(25 mm)
5.625 in.
(143 mm)
4 in.
(102 mm)
2 in. (51 mm)
6.875 in.
(175 mm)
Clearances
Dimensions
Plastic cover model dimensions and clearances
