Triumph BONNEVILLE SE User Manual

40
General Information
Left Hand Side Cover
(Scrambler only)
1. S i d e c o v e r
2. Fastener
3. Seat removal tool
The left hand side cover can be removed to
gain access to the seat removal tool.
To remove the side cover, release the cover's
threaded fastener using a coin.
Lift the cover until it clears its retaining
dowels and then remove the cover from the
motorcycle.
To install, position the cover over its locating
dowels, install the threaded fastener and
tighten with a coin.
Finally, grasp the cover and ensure that it is
fully retained.

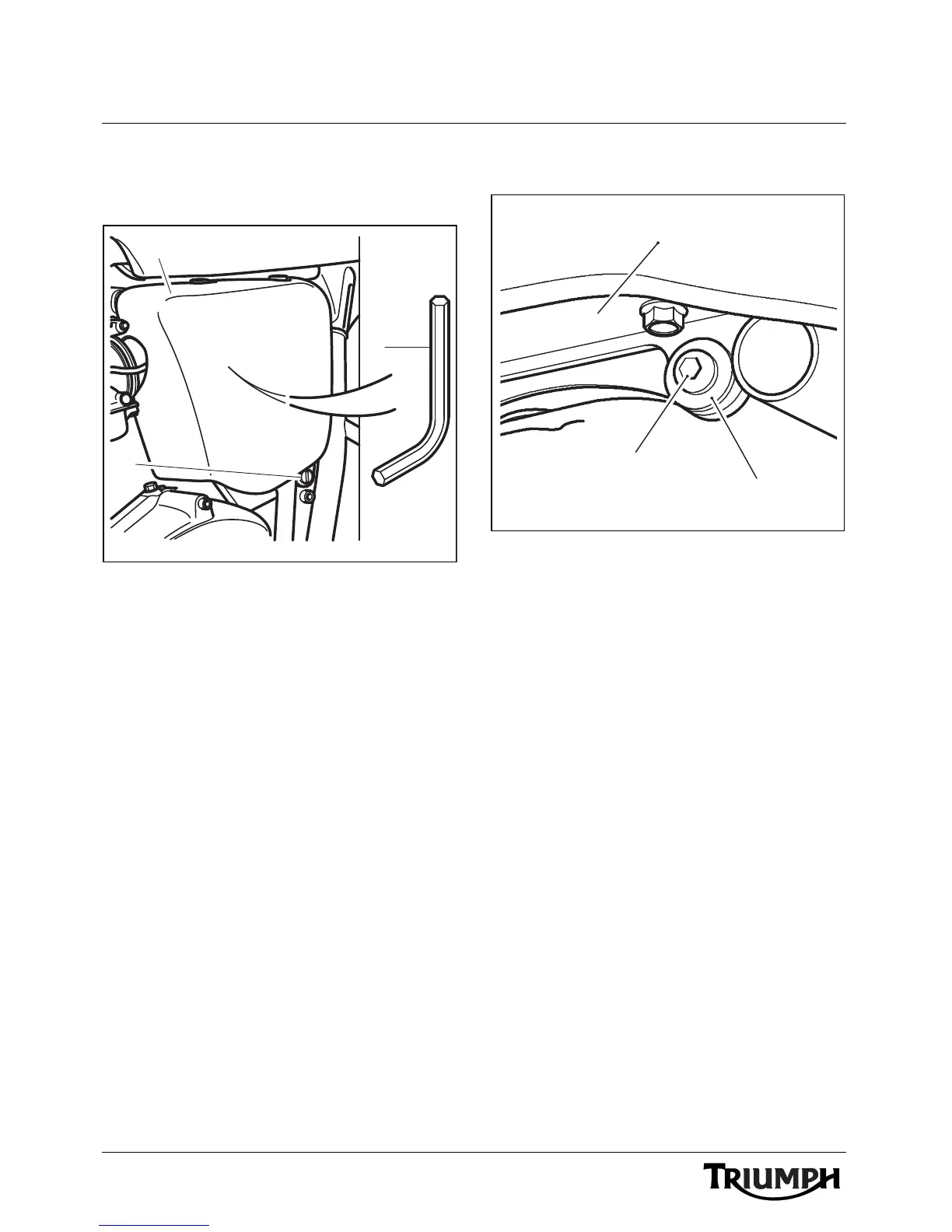

Seat
1. S e a t
2. Fastener (right hand shown)
3. Stepped sleeve
The seat can be removed to gain access to
the battery, owner's handbook etc. An Allen
key, located beneath the right hand side
panel on Bonneville, Bonneville SE,
Bonneville T100 including the Steve
McQueen™ Edition, Bonneville 110th Edition
and Thruxton models, and beneath the left
hand side panel on Scrambler, is provided to
allow removal of the seat fasteners.
To locate the Allen key, remove the right
hand side cover (left hand side cover on
Scrambler) as described earlier in this section.
On Bonneville, Bonneville SE, Bonneville
T100 including the Steve McQueen™ Edition,
Bonneville 110th Edition and Thruxton
models, the Allen key is located in a retainer,
beneath the fuse box. On Scrambler models,
the Allen key is located in a retainer between
the two rearmost relays.
T908018
3
1
2
1
2
3

Triumph BONNEVILLE SE Specifications

General

Displacement	865cc
Bore x Stroke	90 x 68 mm
Compression Ratio	9.2:1
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	5-speed
Frame	Tubular steel cradle
Engine Type	Air-cooled, DOHC, parallel-twin
Max Torque	68 Nm @ 5800 rpm
Fuel System	Multipoint sequential electronic fuel injection
Exhaust	2-into-2 exhaust system
Front Suspension	41mm forks
Rear Suspension	Twin shocks
Front Brakes	Single 310 mm disc, 2-piston caliper
Rear Brakes	Single 255mm disc, 2-piston caliper
Front Wheel	17 x 3.0in
Rear Wheel	17-inch
Rear Tire	130/80 R17
Wheelbase	1490 mm
Fuel Tank Capacity	16 liters
