Features and Controls
17

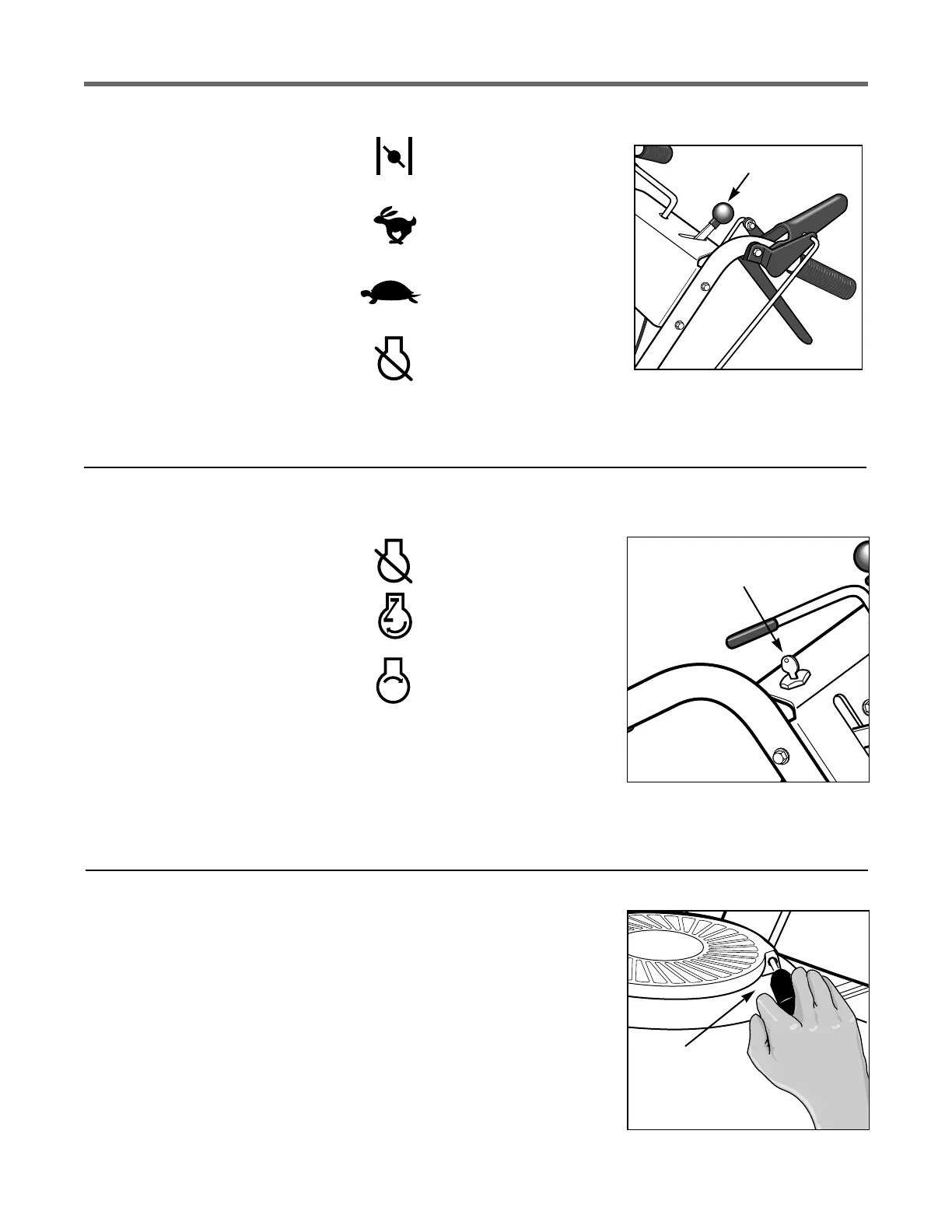

Engine Throttle Control
This lever (F, Figure 3-8) is used
to adjust engine speeds and to stop
the engine. Always run engine at
fast speed setting for best mower
performance. The throttle settings
are shown to the right.
Engine Recoil Starter
The engine recoil starter (H,
Figure 3-10) is used to “pull-start”
the engine. Detailed instructions
for using the engine recoil starter
are found in the Operation Section
of this Manual and in the Engine
Owner's Manual. Do not pull the
recoil starter until you have read the
Operation Section.
H – RECOIL
STARTER
Figure 3-10
Figure 3-8
Figure 3-9
CHOKE - Use when
starting a cold engine.
FAST - Use during mower
operation.
SLOW - Use when idling
engine.
STOP - Stops engine.
STOP - Stops engine.
RUN - After starting, key
returns to run position.
START - Starts engine.
Release key when engine
starts.
Ignition/Starter Switch -
(Electric Start Model)
This three-position switch (G,
Figure 3-9) is used to start and stop
the engine on electric start models.
The ignition key settings are
shown to the right.
Do not turn the key until you
have read the Operation Section in
this Manual.
Always remove ignition key
when leaving mower unattended or
when inspecting, cleaning or ser-
vicing mower.
G – IGNITION STARTER
SWITCH
F – THROTTLE CONTROL
