Truma AquaGo basic User Manual

34
Clip
Connector
Control panel cable
LP gas supply
Gas pipe grommet

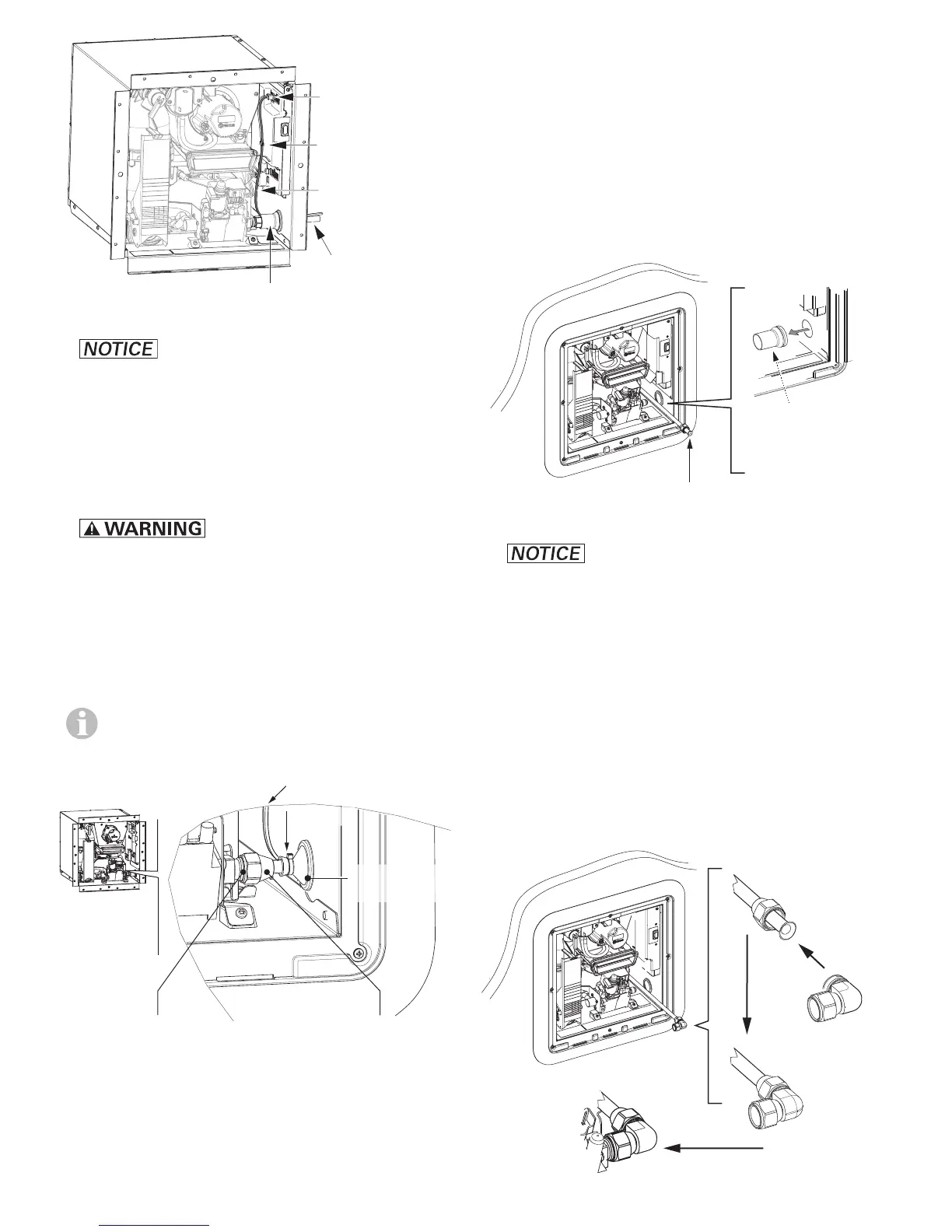

Fig. 26
• Gas valve may be damaged
during tightening! Use a second wrench to
counterhold at the square end (wrench size
11/16 in. (18 mm)).
• Use a torque wrench to tighten the union nut
(nominal torque 15 lb-ft (20 Nm)).
• Risk of poisoning and/or
explosion! Improper tightening of the cable
tie could result in gas/exhaust entering the RV.
• Close the cable tie so that the gas pipe
grommet (side) tightens the gas pipe pas-
sage (see Fig. 27).
A cable tie is provided with the appliance.
You will find it fixed to the gas valve.
SAE 45° Flare Male
SAE J512, 5/8 in. -18
SAE 45° Flare Female
SAE J512, 5/8 in. -18
Cable tie
Gas pipe
grommet (side)
Control panel cable *
* AquaGo® comfort / AquaGo® comfort plus
Fig. 27
Connecting the gas line (gas rear
connection)
• Remove the gas pipe grommet (side).
• Slide the prepared gas pipe through the gas
pipe grommet (rear) from behind so that the
elbow fitting can be mounted.
Gas pipe grommet
(side)
SAE 45° Flare Female
SAE J512, 5/8 in. -18
Fig. 28
• Gas line may be damaged dur-
ing tightening! Use a second wrench to
counterhold at the square end (wrench size
9/16 in. (14 mm)).
• Mount the elbow union (45° SAE flare style)
on the gas pipe in the direction shown (see
Fig. 29).
• Use a torque wrench to tighten the union
nut (nominal torque 15 lb-ft (20 Nm)) (brace
against the elbow union with wrench size
9/16 in. (14 mm)).
Fig. 29
