6.5 TPH Care
Self-Diagnostic TPH Care allows users to scan and detect defective dots on the printhead during the printing process. It helps
reduce downtime, prevent faulty labels, and avoid barcodes of poor quality on mission critical tasks.
Follow the steps below to open the TPH Care page:

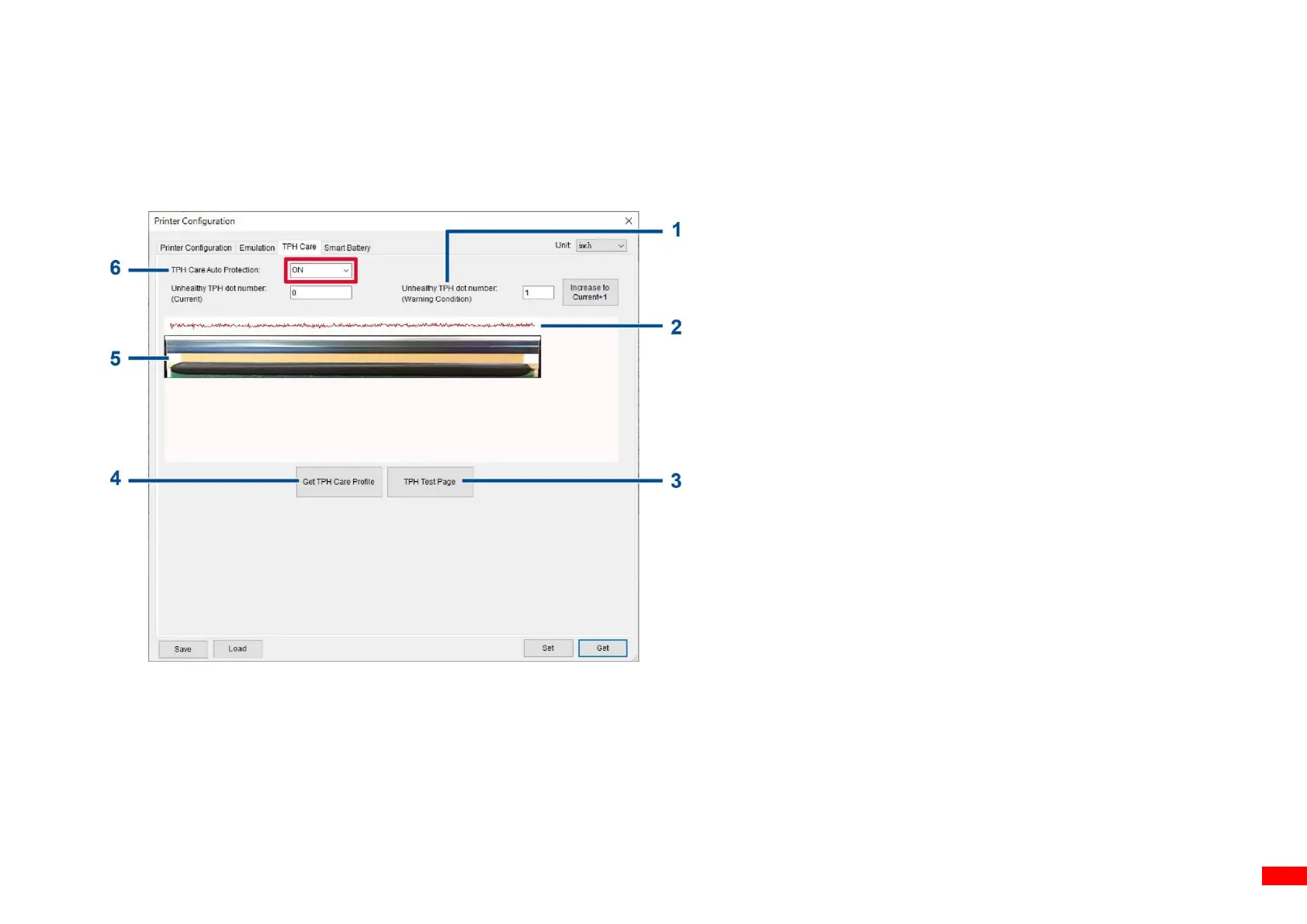

1. Double click the printer you want to configure on the TSC Console main page to open the Printer Configuration menu.
1. Sets the reminder that the defective dots have reached
the configured numbers.
2. Shows the difference between the defective dots and the
average of all other good dots in the series. The surge
indicates that it is very likely that the dots in the
corresponding area on the printhead are defective.
3. Prints the test page so that users can check the health
status of the printhead.
4. Detects the defective dots on the printhead.
5. Allows users to check if there are defective dots on the
printhead.
6. Enables/Disables TPH Care Auto Protection.
