18 OVEN MODES
Accessing the Belt Control Screen
F
rom TEST MODE screen 1 (Figure 21, page 17),
press L2 to access the belt control screen (Figure
25). Use this mode to verify the belts work
corr
ectly. The number after the belt speed
sho
ws the pulses read by the HES. The
per
centage is the amount of driv
e being asked
of the CMSC (100% = 10V).
To change the belt’s setting,
-Press L1 to turn the belts off.
-P
r
ess L2 to access the belt F contr
ols.
-P
r
ess L3 to access the belt R contr
ols.
Manipulating the Top and Bottom
Blowers
Figure 21, page 17.
The user can change the speed of the top and
bottom blowers independently. To change the
speed of the blowers,
1. From screen 1 of the TEST MODE, press R1
to access the top blower or R2 to access the
bottom blower.
2. Press the up or down keys to change the
speed of the selected blower in 5%
increments. The percentage of air cannot go
belo
w 30% or above 100%.
Viewing the Status Indicators

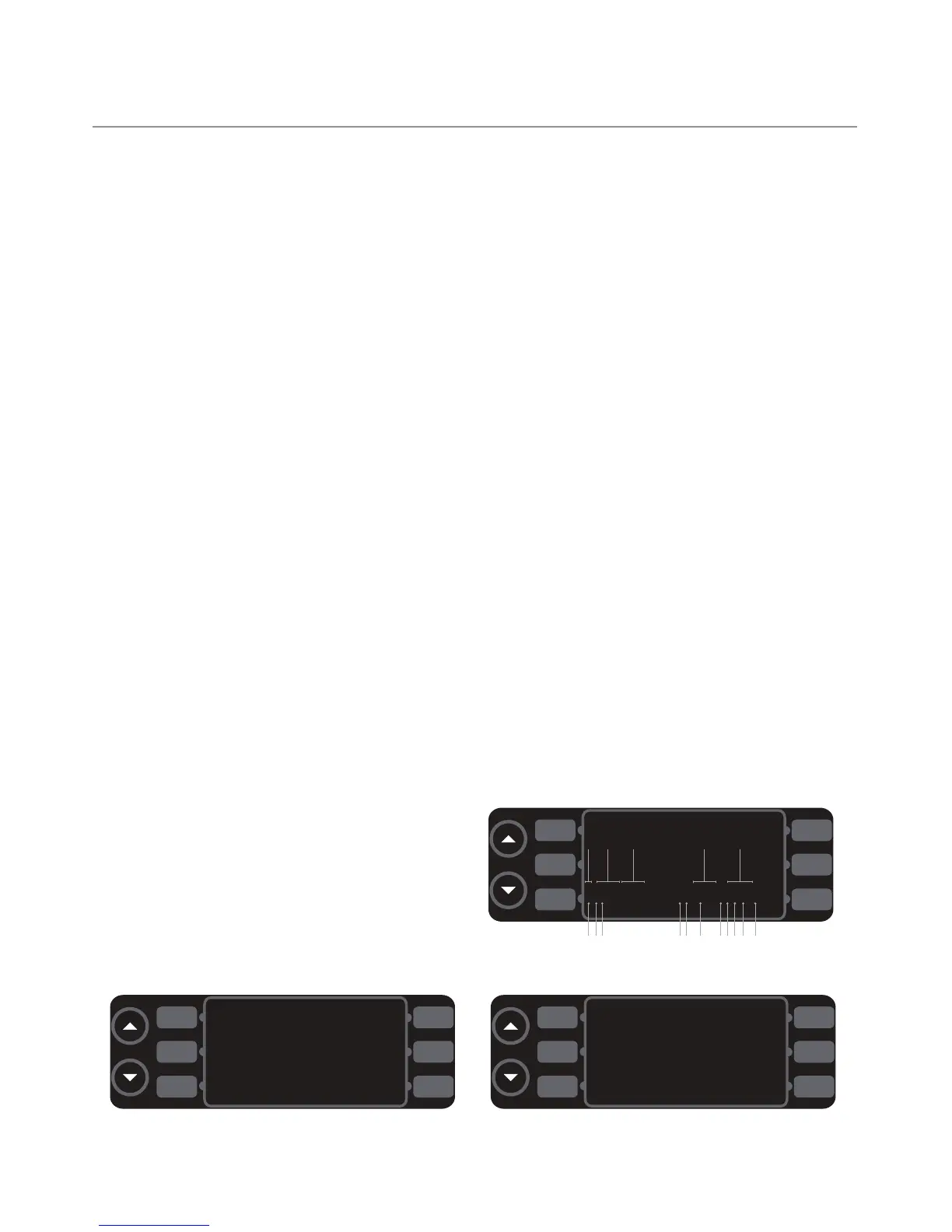

Figure 26
The status indicators ar
e located at the bottom
of TEST MODE screen 1 and the heat control
scr
een. The status indicators are split into two
display lines.
T
op Display Line
The top display line sho
ws values relating to
oven components. The letters a-c and e below,
and on Figure 26, indicate the different top
display line status indicators, which are
explained belo
w.
a Shows which key is currently pressed.
-U = up key
-D
= down key
-a
= L1
-b
= L2
-c = L3
-f = R1
-g = R2
-h = R3
-P
= back/off key
-I
= idle key
-S
= emergency stop key
b Shows the temperature within the electrical
compartment (temperature displayed in
Celsius only).
c
S
hows the temperature within the cook
chamber
.
d Not applicable to this oven.
e
Shows the voltage of the power supply.
To Next Page
