TurboChef TORNADO Service Manual

72
SERVICE PARTS AND ILLUSTRATIONS
79
80
82
x2
83
x2
78
81
82
77
80
82
81

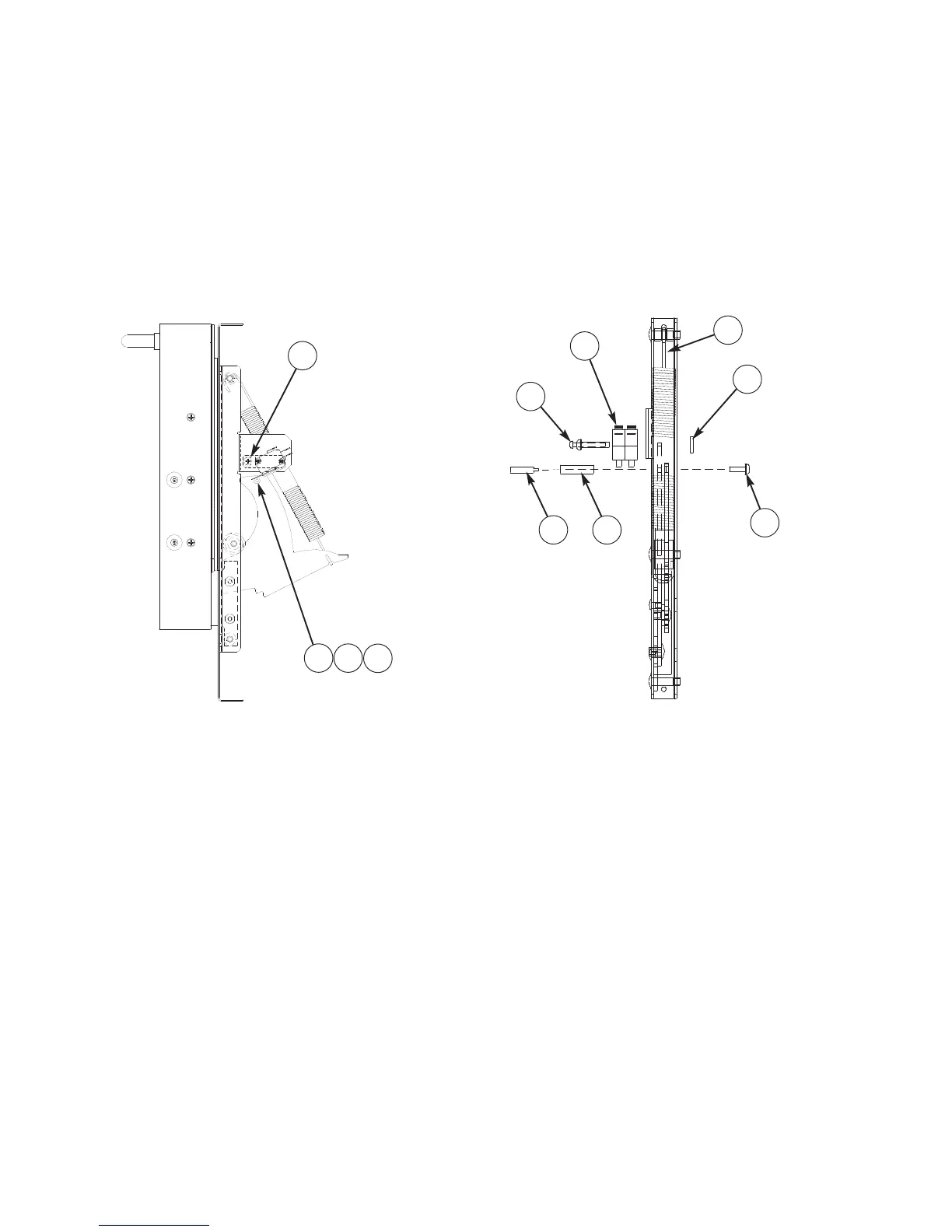

FIGURES 33 AND 34: SECONDARY AND MONITOR SWITCH ADJUSTMENT AND ASSEMBLY - NEW SWITCH SETUP
Chapter 6: The Oven Door - Page 43
Secondary and Monitor Safety Switch Parts
77. 102804 Hinge, Right
78.
102012 Switch, Limit, Micro (x2)
79.
NGC-1126 Plate, Door Switch
80. 101914 Standoff, #8-32 F/F x 1”, 5/16” DIA
81. 101915 Standoff, #8-32 M/F x 5/16”, 1/4” DIA
(attached to outside of Item 80.)
82. 102921 Screw, #8-32 x 3/8”
83.
101558 Screw, 4-40 x 1.125”
