SERVICE PARTS AND ILLUSTRATIONS
75
Convection Circuit Parts
102. 101688 Screw, #8 x 1/2” PTH
103. NGC-1081 Cover, Motor
104.
100906 Nut, 1/4”-20, Flange
105.
NGC-1025 Assy, Blower Motor
106.
NGC-3007 Kit, Fan Blade
107. NGC-1024 Sealing Block, Blower
108. NGC-1023 Clamp, Blower Seal
109. 101688 Screw, #8 x 1/2” PTH
110.
NGC-3011 Heater, Convection
111.
100443
Controller, Motor
112.
NGC-3005 Relay, K4/K5 SSR
113.
100592 Fuses, F1 and F2 (12 Amp)
114.
102075 High-Limit Thermostat
115. NGC-1043 Gasket, Convection Heater
* If entire motor is needed, order NGC-1025.
If only hardware (screws, nuts) or seal is needed,
contact 800.90
TURBO or +1 214-379-6000.
**
Not shown for clarity.

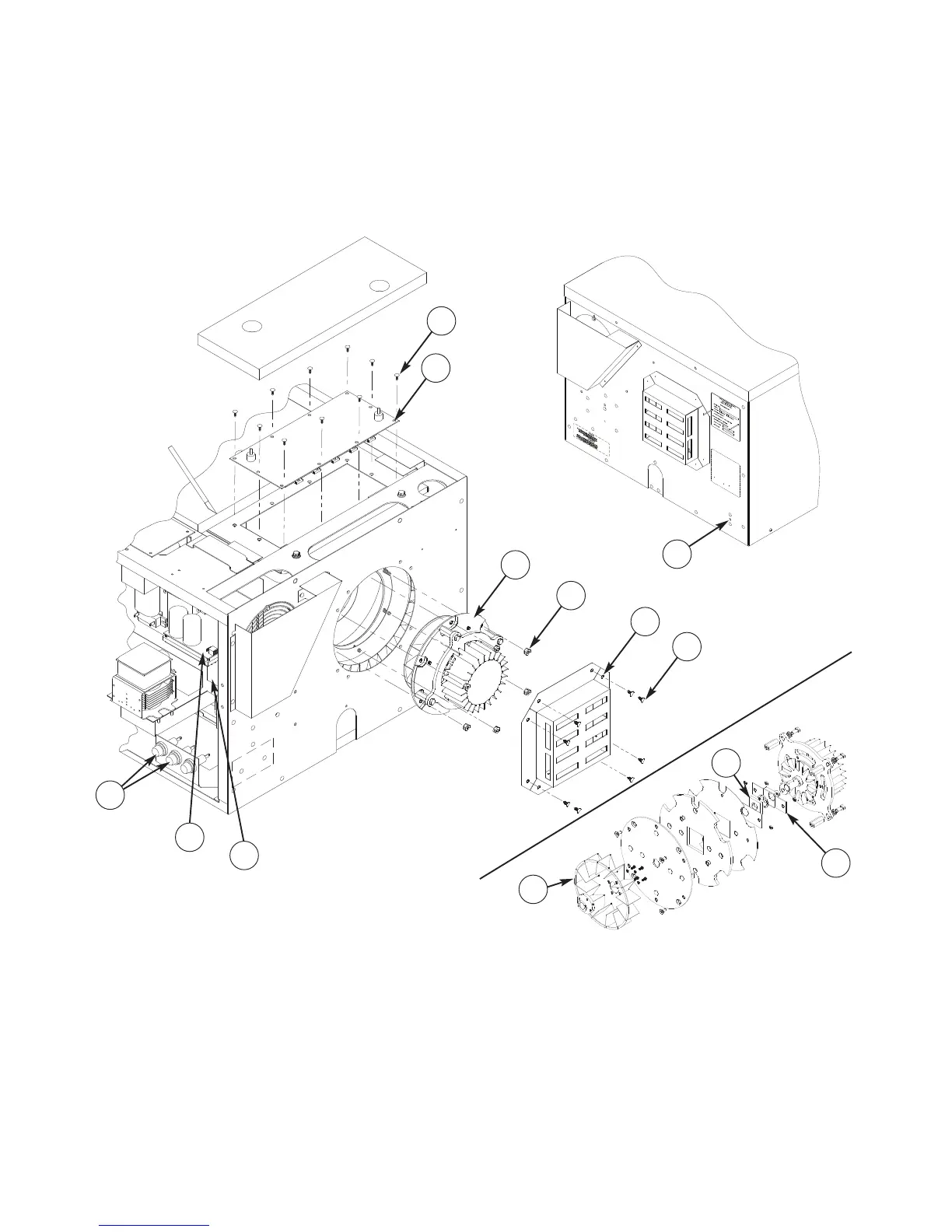

FIGURE 38: CONVECTION CIRCUIT ASSEMBLY AND PARTS
Chapter 7: Convection
Circuit - Page 48
