TurboChef TORNADO Service Manual

78
SERVICE PARTS AND ILLUSTRATIONS
-HOT-
CAU
TION
shock,
connect to properly gr
ounded outlets only.
electr
ique branche
z seulement a un
e prise
Pour assurer pr
otec
tion con
tinue con
tre le cho
c
correc
tem
ent mise a t
err
e.
AVERTI
SSEMENT:
To
provide con
tinued prot
ection against electrical
DHHS Feder
al Per
for
mance S
tandard 21 CFR 1030.1
0.
Thi
s Ov
en complies with applic
able sections of
recei
ved
, i
ncluding in
terfer
ence tha
t may c
ause
2. Thi
s devic
e must acc
ept any in
ter
fer
ence
1. Thi
s devic
e may not c
ause harmful in
terfer
ence
.
Operation is subject t
o the following conditions:
Thi
s devic
e complies with Part 18 of the FC
C Rules
.
undesired op
era
tion.
WAR
NING:
NOTICE:
Covers and Miscellaneous Parts - SBK
145. NGC-1213-1 Cover, Left Side
146. NGC-1213-2 Cover, Right Side
147.
NGC-1211 Cover, Top
148.
102756 Screw, #8 x 1/2 Lg
TORX HD Security
149. 101691 Screw, #8 Serrated Phillips
TRHD, CRES
150. 102922 Screw, #8-32 x 3/8”, PPHD,
SEM, Int Tooth, SS
151.
NGC-1212 Cover, Bottom Front
152.
100784
Leg, NGC, SBK, 4” (qty 1)
153. 101191 Hole Plug, 1/2” Dia, Black
154. NGC-1054-3 Assy, Keypad/Display, Cover
155. NGC-3064 Rack, Raised
156. NGC-3038 Stone, Clear Glazed
157.
NGC-1176-1 Label, Schematic (USA)
NGC-1176-2
Label, Schematic (UK/Ireland)
NGC-1176-3 Label, Schematic (Eu/Asia/Pac
400VAC)
NGC-1176-4 Label, Schematic (Eu/Asia/Pac
230 VAC)
NGC-2011-8
Label, Schematic (Latin America)
158.
NGC-1177
Label, Service Assistance
159. NGC-1148 Label, Caution Hot
160. 102962 Nut, KEPS HEX, #8-32, Ext
Tooth, CRES
161.
NGC-1187
Pad, Abrasive Non-slip
162.
NGC-1082
Cover, Cooling Fan

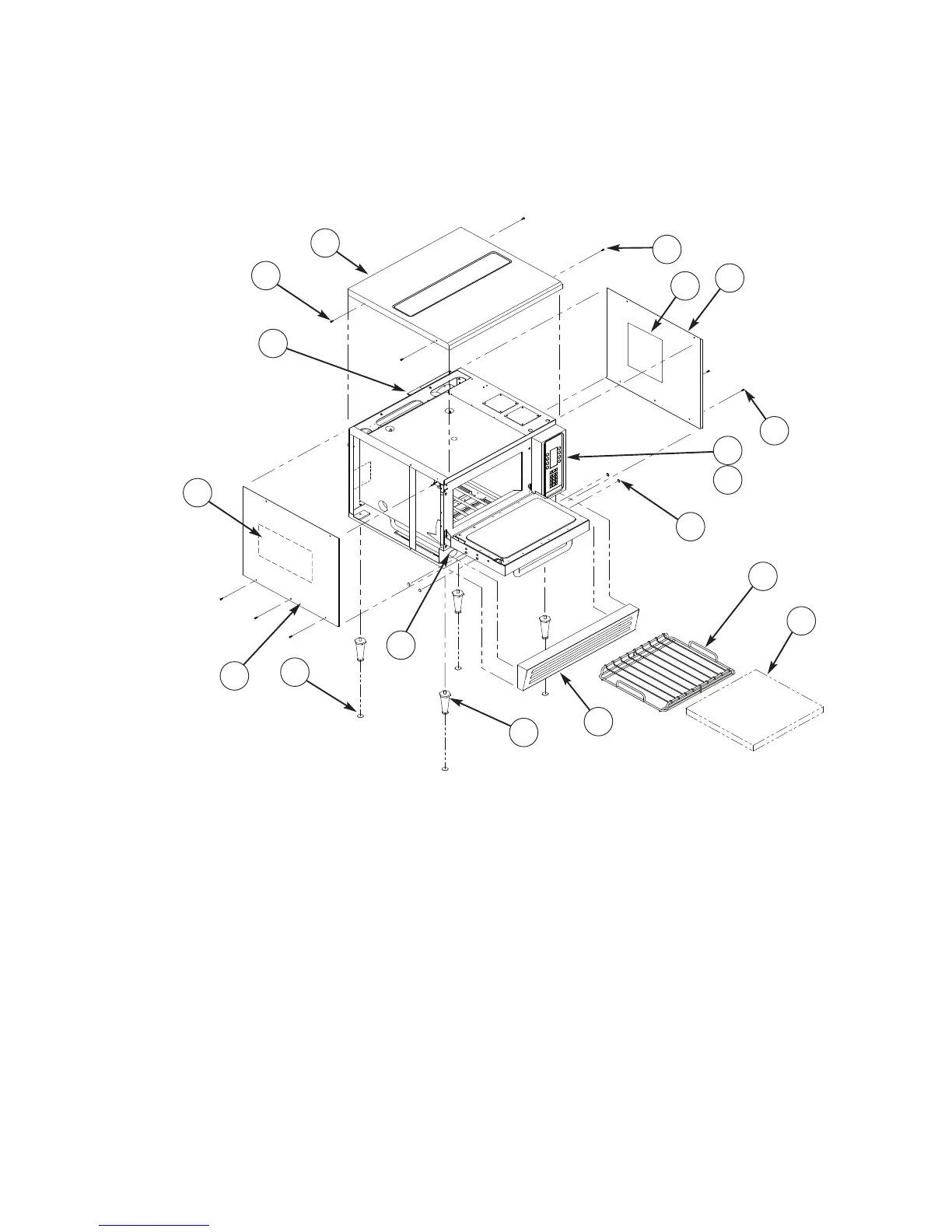

FIGURE 47: COVERS AND MISCELLANEOUS PARTS - SBK OVENS
x2
146
145
147
148
x3 per panel
149
x2
150
151
152
x4
x4
161
x4
153
154
155
158
157
159
160
x2
162
156
