18 UTG1000A Series

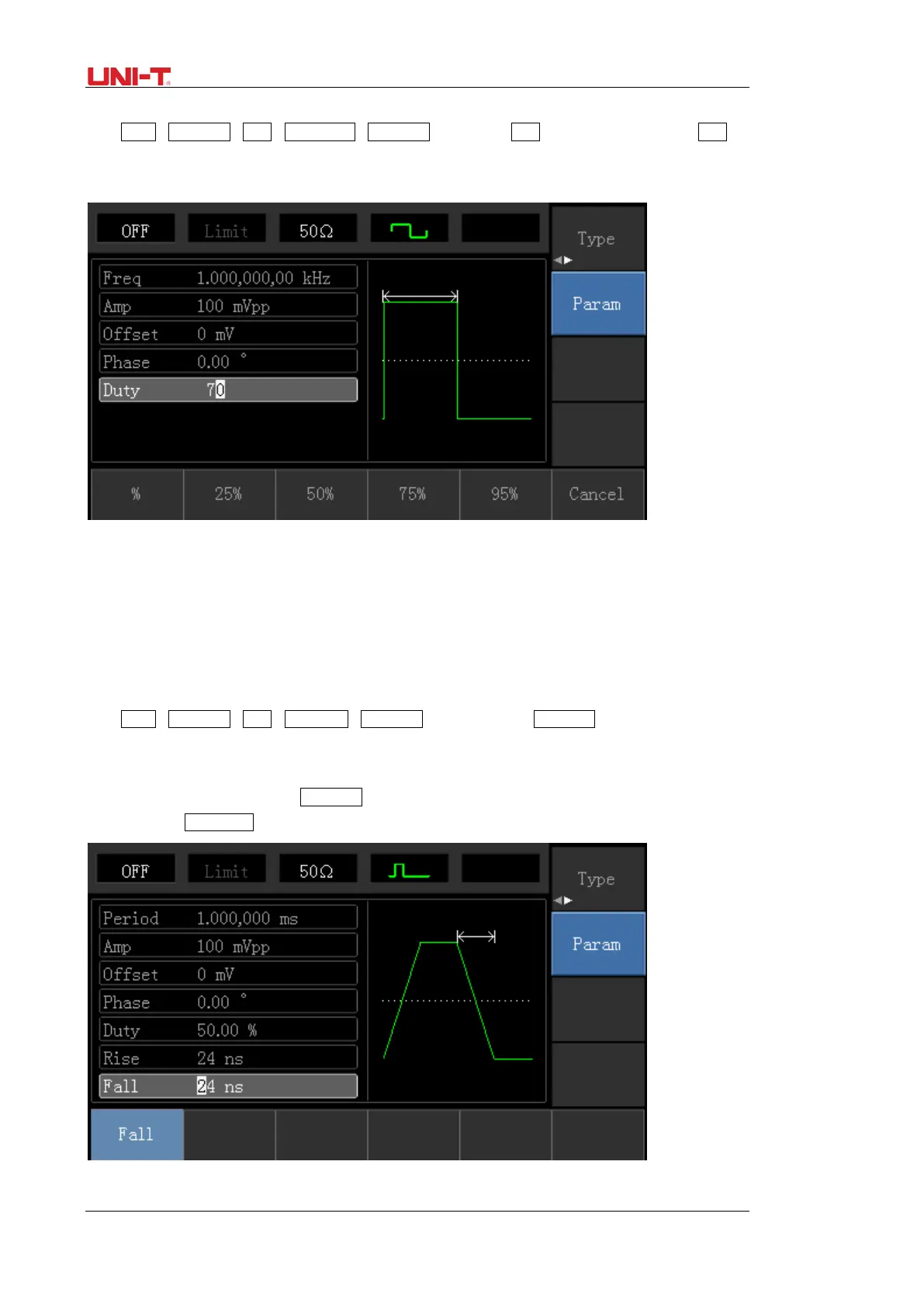

3.3.4 Square Wave Setting
Press Menu→Waveform→Type→Squarewave→Parameter in turn (press Typesoftkey to select only when Type
label is not highlighted). If parameter needs to be set, press corresponding softkey to enter required numerical
value and select the unit.
Note: This parameter can be set by multifunctional knob and direction buttons.
3.3.5 Pulse Wave Setting
Default duty cycle of pulse wave is 50% and rising/falling edge time is 1us. Steps for setting square wave with 2ms
period, 1.5Vpp amplitude, 0V DC offset and 25% duty cycle (limited by the minimum pulse width specification 80ns),
200us rising time and 200us falling time are seen as following:
Press Menu→Waveform→Type→PulseWave→Parameter in turn, then press Frequencysoftkey to switch to Period.
Enter required number value and select the unit. When entering duty cycle value, there is a quick label at the
bottom of display, and select 25%.
If need to set falling edge time, press Parametersoftkey or rotate multifunctional knob to the right to enter sub
label, then press Falling Edgesoftkey to enter required number and select unit.
Note: This parameter can be set by multifunctional knob and direction buttons.
