Administration
A31003-C1000-M102-5-76A9, 09/2017
50 OpenScape Desk Phone CP200/CP205/CP400/CP600 HFA, Administration Manual
administration.fm
LAN Settings
Administration via WBM

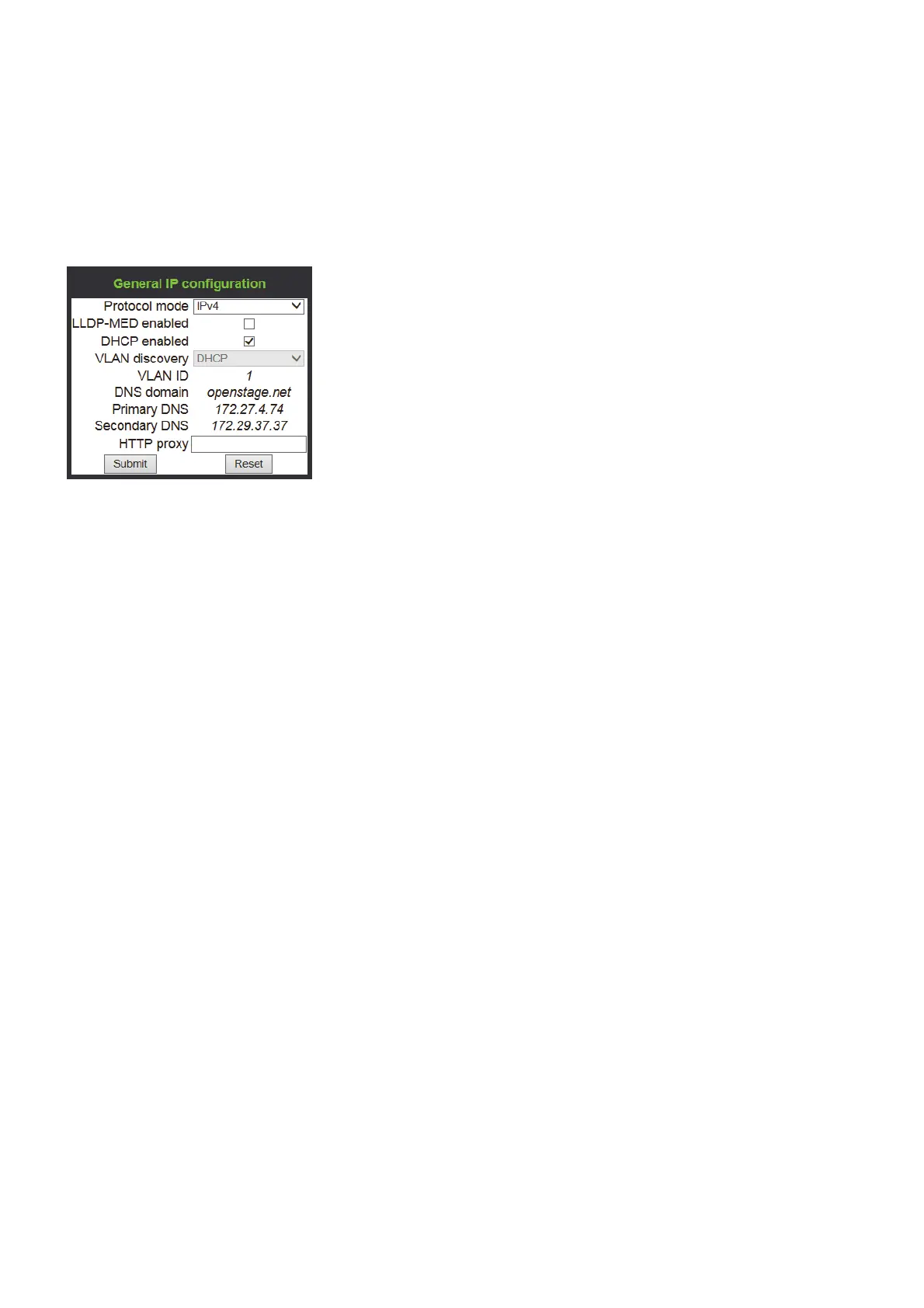

Network > General IP configuration
To enable VLAN discovery via LLDP-MED, activate the LLDP-MED Enabledcheckbox and se-
lect LLDP-MED in the VLAN discovery option. Afterwards, click Submit.
Administration via Local Phone
To enable VLAN discovery via DHCP, activate the DHCP Enabled checkbox and select DHCP
in the VLAN discovery option.
3.2.2.3 Manual configuration of a VLAN ID
To configure layer 2 VLAN manually, first make sure that VLAN discovery is set to "Manual" (see
Section 3.2.2.1, “Automatic VLAN discovery using LLDP-MED”). Then, the phone must be pro-
vided with a VLAN ID between 1 and 4095. If you misconfigure a phone to an incorrect VLAN,
the phone will possibly not connect to the network. In DHCP mode it will behave as though the
DHCP server cannot be found, in fixed IP mode no server connections will be possible.
|
--- Administration
|
--- Network
|
--- General IP configuration
|--- Protocol Mode
|--- LLDP-MED enabled
|--- DHCP enabled
|--- VLAN discovery
|--- VLAN ID
|
--- DNS domain
|
--- Primary DNS
|
--- Secondary DNS
|
--- HTTP proxy
