To meet the requirements of dierent application, there are two kinds of Rear and Top Cover

Kit available:

• Rear and Top Cover Kit for cabinets

• Extension Rear and Top Cover Kit for open relay racks.

DC & Alarm

Cable Entry

AC Cable Entry

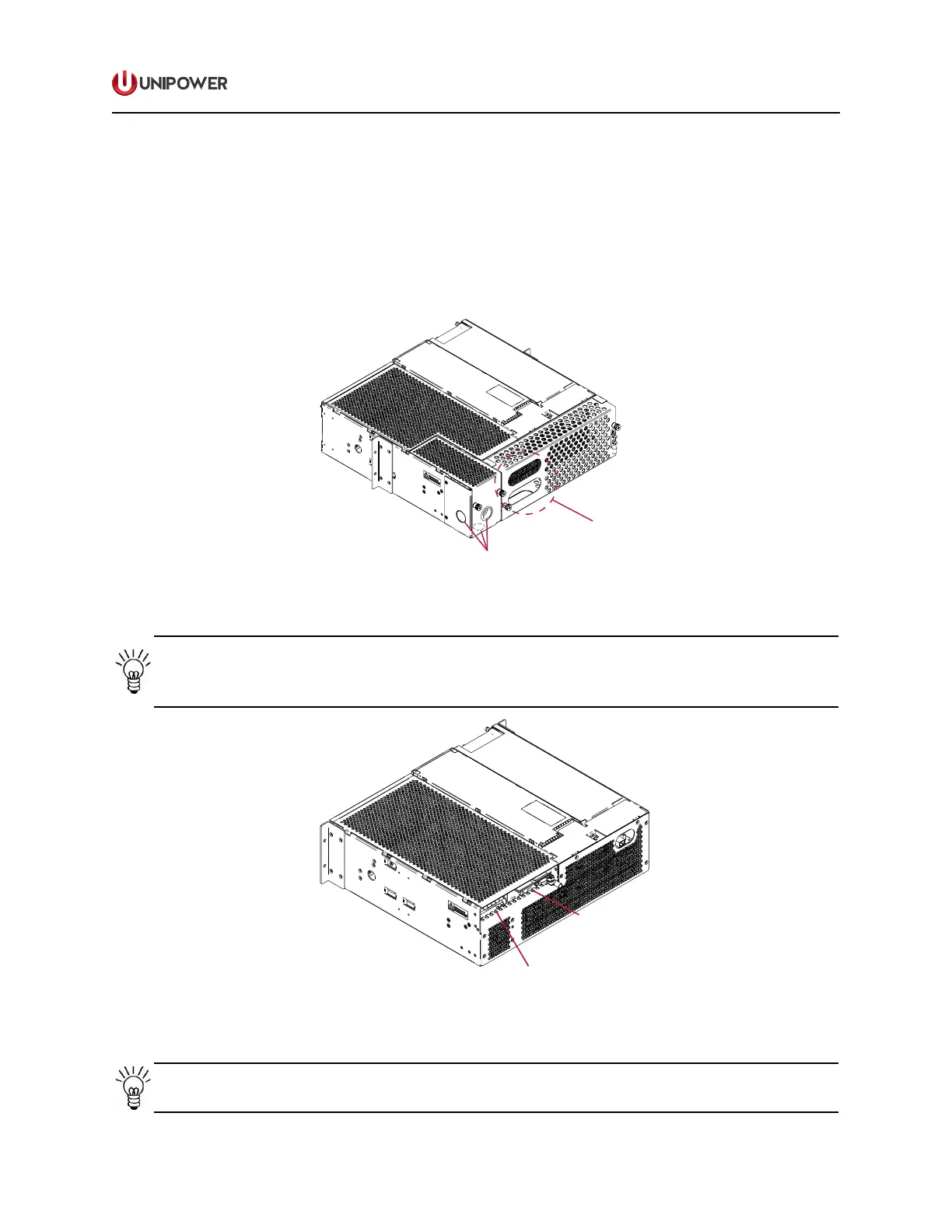

Figure 2-3 Power System With Extension Rear and Top Cover Kit

NOTE The cable entry on the rear of the shelf is factory supplied and opened. If you want

to route the cables from the bottom or side, remove the knockouts. For AC cable entry, you

have to install the supplied PG21.

DC & Alarm

Cable Entry

AC Cable Entry

Figure 2-4 Power System with Rear and Top Cover Kit

NOTE The Rear and Top Cover Kit and Extension Rear and Top Cover Kit are optional

components and just provided according to your order.
