Unipower Guardian Access 3U User Manual

Page 27
POWERING TECHNOLOGY
Manual No. MS0027-MAN rev. 4
guardian_access_3u_ms27-man-rev4-0817.indd
Top Cover
Front Panel
AC Input Cover

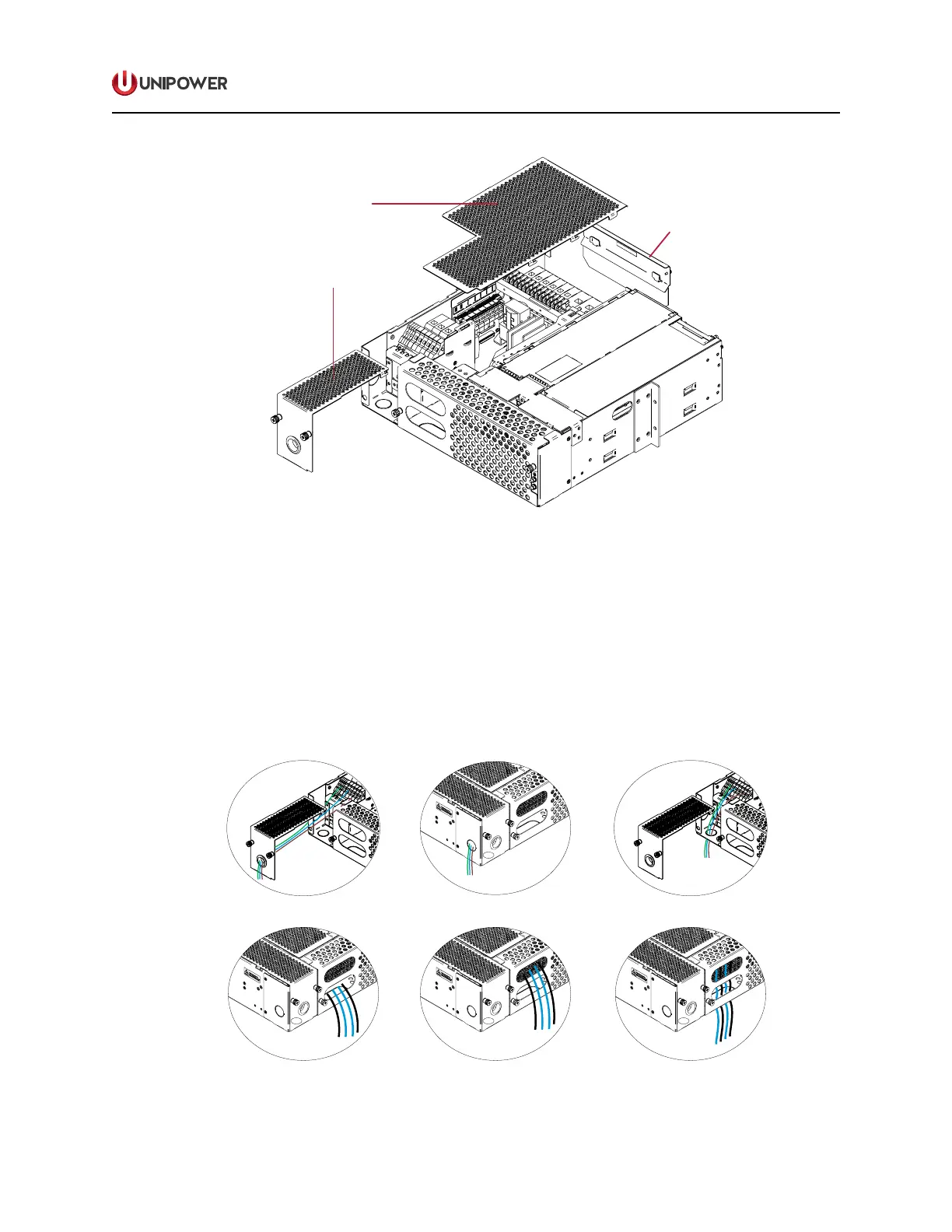

Figure 4-4 Remove Top and AC Input Cover
4.3.2 Cable Entry Openings
The Extended Rear and Top Cover is designed with two knockouts and one circular opening
for AC cable entry plus and three larger openings for DC and alarm cable entry.
When connecting and routing the AC cable from the right hand side or the bottom, rst
remove the knockout, then install the supplied PG21 to x the AC cable.
Figure 4-5 below depicts three types of AC and DC cable entry.
AC cable entry from side AC cable entry from bottomAC cable entry from rear
DC cable entry from rear DC cable entry from bottomDC cable entry from rear
Figure 4-5 Cable Entry Options
