Unipower Guardian Access 3U User Manual

Page 51
POWERING TECHNOLOGY
Manual No. MS0027-MAN rev. 4
guardian_access_3u_ms27-man-rev4-0817.indd
Appendix A - Drawings

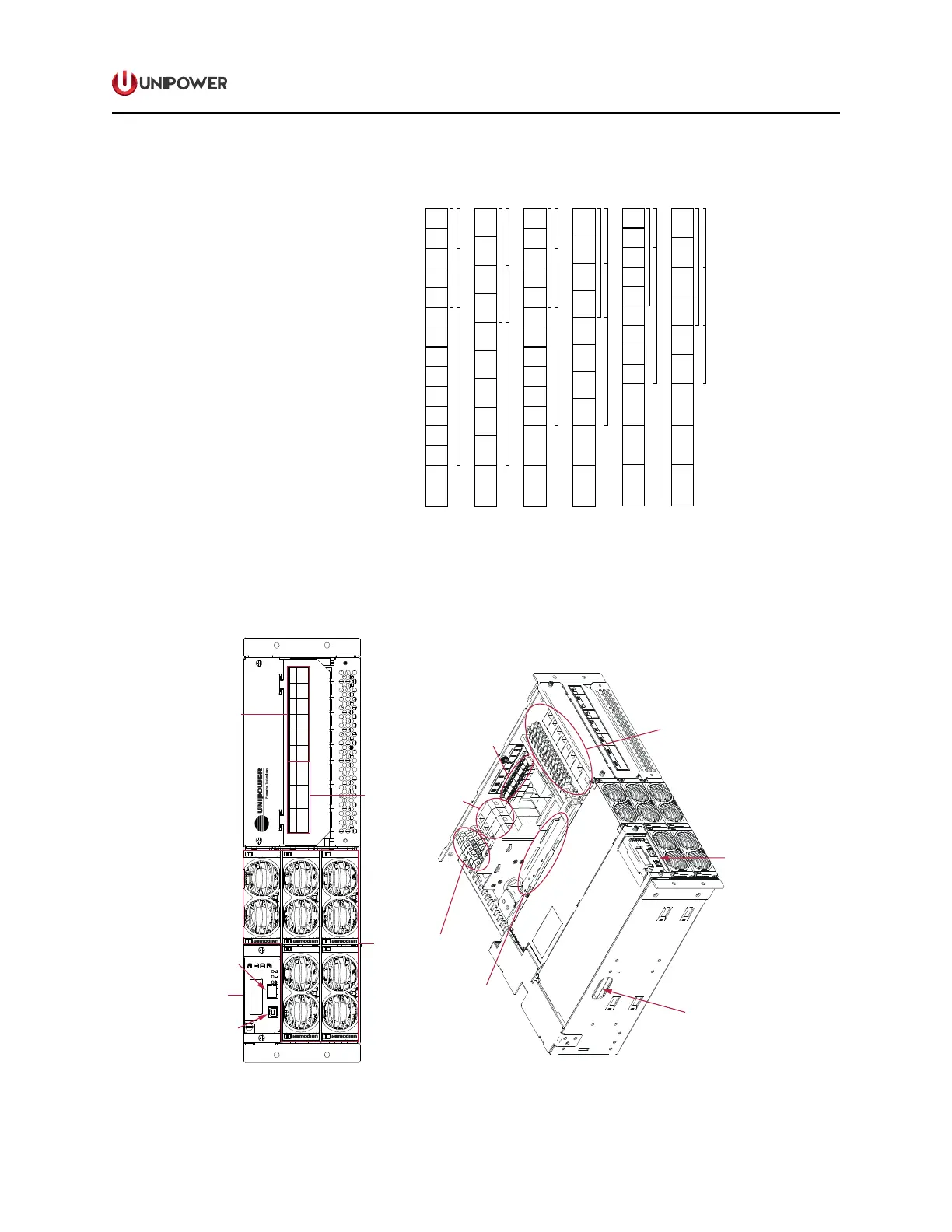

A.1 System Layout
System Layout
Dimensions: 3U x 19"
CONTROLLER: ACC or PCC (w/ethernet) with Display
RECTIFIERS: 5 x Guardain 48V (for 5 pos system) OR 3 x Guardian 48V (for 3 pos system) AC Distribution: 3-phase 3+1, Class C SPD optional DC Distribution: Six configurations optional
LVD:
200A 48V (for 5 pos system) OR 125A 48V (for 3 pos systems) OR Dummy LVD kits PLD: 125A 48V
GUARDIAN 48
GUARDIAN 48 GUARDIAN 48
GUARDIAN 48
GUARDIAN 48
FB1 FB2 FB3 F1 F2 F3 F4 F5 F6
RECTIFIERS
BATTERY
BREAKERS
CONTROLLER
LOAD BREAKERS
(6 x 18mm configuration shown)
USB ETHERNET
RS232 CONNECTION (REMOVE TOP COVER
FOR ACCESS)
LVBD & LVLD CONTACTORS
AC CONNECTIONS
ALARM & SIGNAL CONNECTIONS (see manual for details)
LOAD & BATTERY
CONNECTIONS
USB & ETHERNET
CONNECTIONS
SURGE SUPPRESSOR (optional)
Batt 1 123456789 10 11 12 13
1 x single pole battery breaker 13mm load breakers
Batt 1
123456789
1 x single pole battery breaker 18mm load breakers
Batt 1 Batt 2 123456789 10 11
2 x single pole battery breakers 13mm load breakers
Batt 1 Batt 2 12345678
2 x single pole battery breakers 18mm load breakers
Batt 1 Batt 2 Batt 3 1 2 3 4 5 6 7 8 9
3 x single pole battery breakers 13mm load breakers
Batt 1
Batt 2
Batt 3
1 2 3 4 5 6
3 x single pole battery breakers 18mm load breakers
LP
Min. LPHP/LPHP
LP
Min. LPHP/LPHP
LP
Min. LPHP/LPHP
LP
Min. LPHP/LPHP
LP
Min. LPHP/LPHP
LP
Min. LPHP/LPHP
