Utax P-4035 MFP Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-4-48

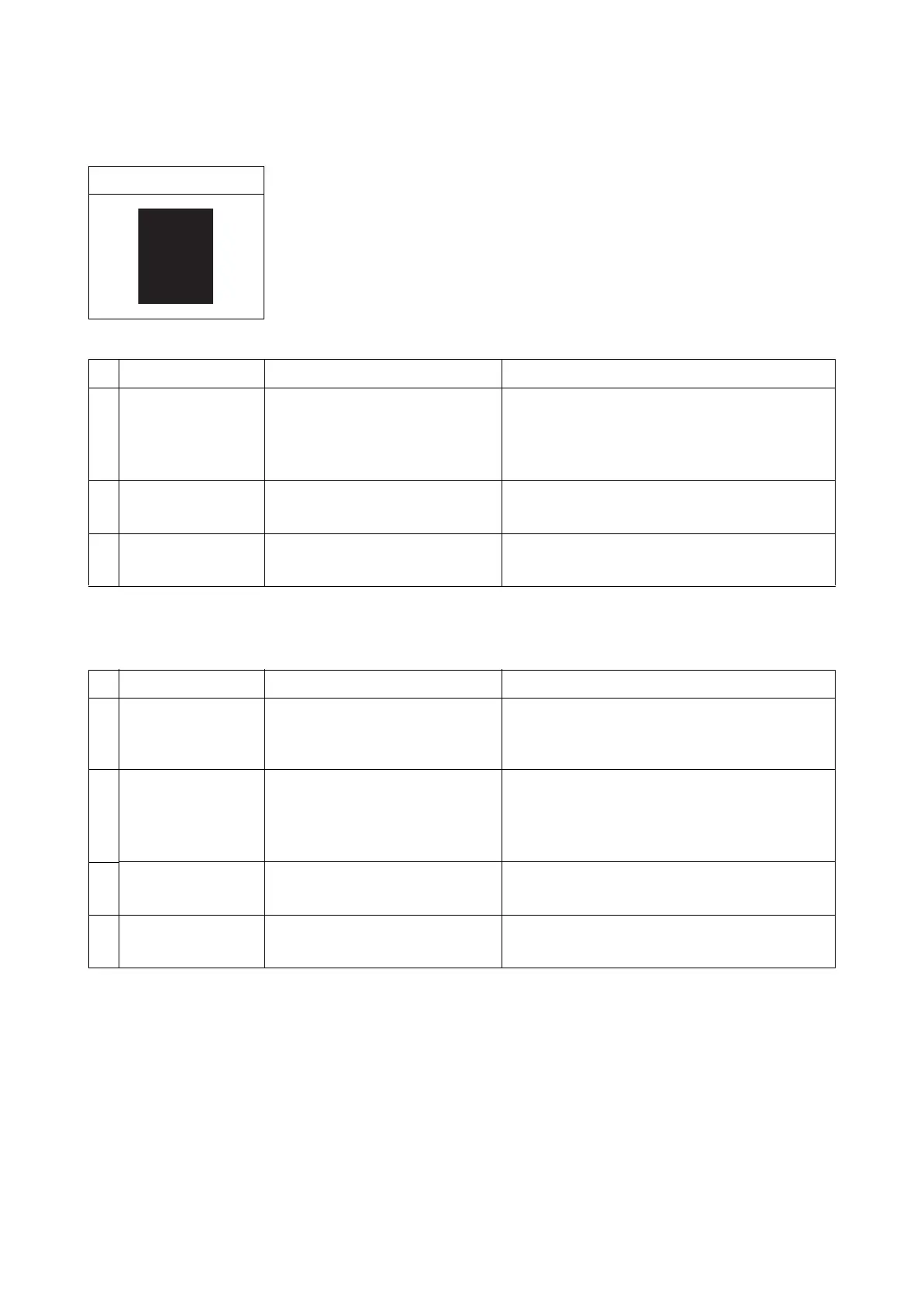

(2) No image appears (entirely black).
1. Table scanning
2. DP-scanning
Print example
Defective part Check description Corrective Action
1
FFC cable CCD Check the FFC cable between
the CCD and control PWB is
properly connected. Or, verify
conduction of the wire.
Reinsert the connector if its connection is
loose. Or, if conduction is lot, replace the wire.
2
CCD PWB The CCD PWB is defective. Replace the ISU and perform U411.
(see page 1-3-54)
3
Control PWB The control PWB is defective. Replace the control PWB.(see page 2-2-12)
Defective part Check description Corrective Action
1
Scanning position
of the DP
Confirm the value using mainte-
nance mode U068, DP Read.
If a large value is observed in maintenance
mode U068, DP Read, perform
adjustment.(see page 1-3-31)
2
FFC cable CCD Check the FFC cable between
the CCD and control PWB is
properly connected. Or, verify
conduction of the wire.
Reinsert the connector if its connection is
loose. Or, if conduction is lot, replace the wire.
3
CCD PWB The CCD PWB is defective. Replace the ISU and perform U411.
(see page 1-3-54)
4
Control PWB The control PWB is defective. Replace the control PWB.(see page 2-2-12)

Utax P-4035 MFP Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	20 ppm
Copier resize	25 - 400 %
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	40 cpm
Scan to	E-mail, File, Image, USB
Grayscale levels	256
Image formats supported	JPG, TIF
Document formats supported	PDF, XPS
Faxing	Mono faxing
Fax memory	8 MB
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Fax resolution (black)	200 x 100 DPI
Fax transmission speed	3 sec/page
Digital sender	-
Printing colors	Black
Maximum duty cycle	- pages per month
Total input capacity	500 sheets
Total output capacity	250 sheets
Duplex media weight	60 - 120 g/m²
Paper tray media types	Envelopes
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Product color	Black, Grey
Market positioning	Business
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint
Standard interfaces	Ethernet, USB 2.0
Memory slots	1
Internal memory	512 MB
Compatible memory cards	SD
Sound power level (standby)	53 dB
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (standby)	54.7 W
Power consumption (average operating)	680 W

Weight and Dimensions

Depth	455 mm
Width	475 mm
Height	575 mm
Weight	21500 g
