Utax P-4035 MFP Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-7
(2) MP tray paper feed section
The MP tray can contain 100 sheets. Feeding from the MP tray is performed by the rotation of the MP paper
feed roller. Also, function of the MP separation pad prevents paper from multiple feeding.

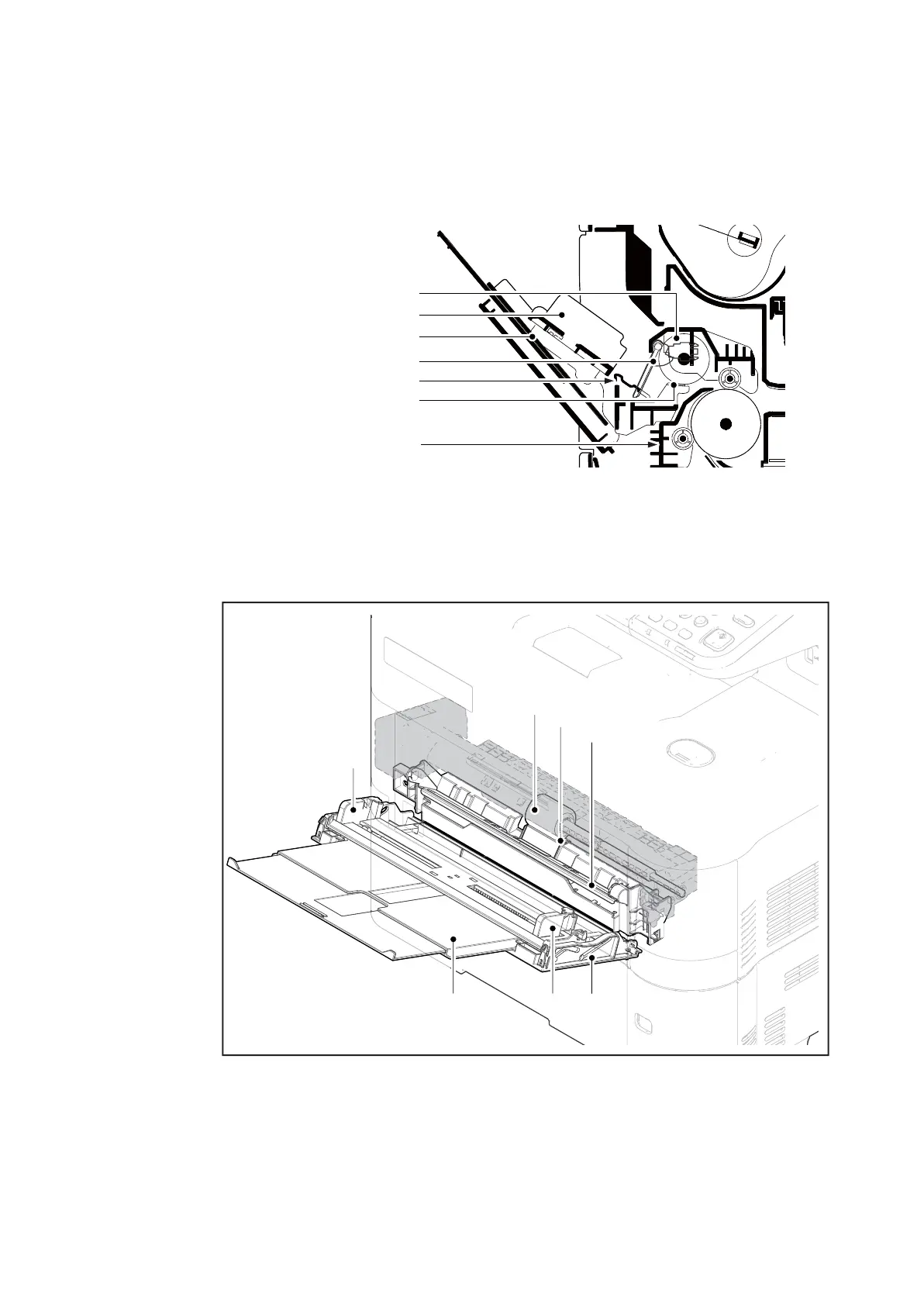

Figure 1-5-9
Figure 1-5-10
1
6
2
4
7
3
5
[Component formation]
1. MP paper feed pulley
2. MP separation pad
3. MP bottom plate
4. MP (multi purpose)tray
5. MP frame
6. MP paper width guide
7. Actuator (MP paper sensor)
1
6
4 56
2
3
