8. Remove two gear.
9. Remove four screws and drive cover.
10. Remove DP paper feed motor and DP
conveying motor.
11. Check or replace DP paper feed motor
and DP conveying motor and refit all
the removed parts.

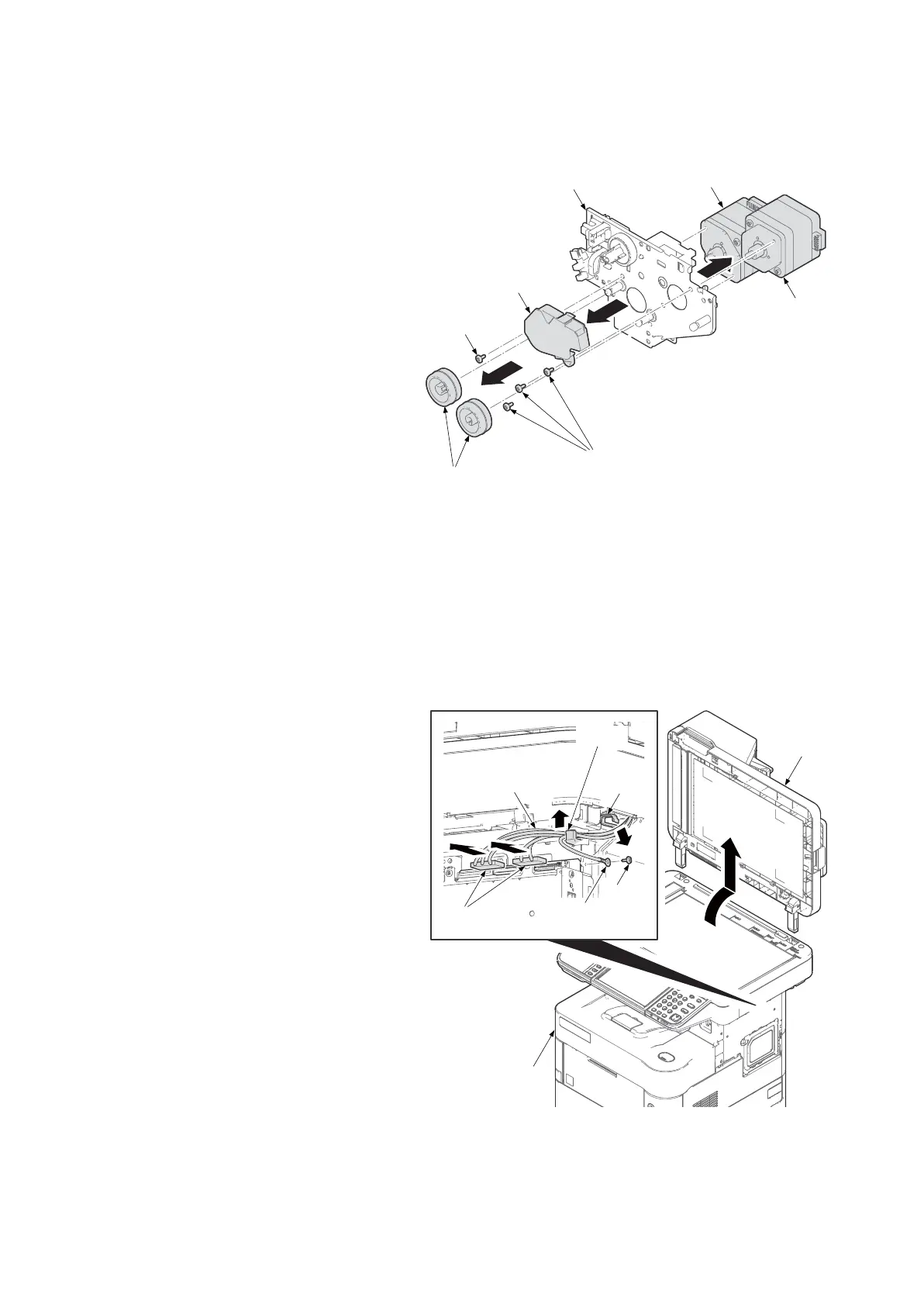

Figure 1-5-138
(2-3) Detaching and refitting the DP unit
Procedure
1. Open the rear cover and remove the
upper interface cover.
2. Remove the right stay cover.
3. Remove the screws and the right upper
cover.
4. Remove the screw and grounding ter-
minal.
5. Remove two connector from the control
PWB.
6. Release DP wires from the hook and
the wire saddle.
7. Open DP unit and lift up out.
Figure 1-5-139
Screw
Drive cover
Drive A unit
DP conveying
motor
Screws
Gears
DP paper
feed motor
Screw
Grounding
terminal
Connectors
DP wires
Wire
saddle
Hook
DP unit
Main unit

Utax P-4035 MFP Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	20 ppm
Copier resize	25 - 400 %
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	40 cpm
Scan to	E-mail, File, Image, USB
Grayscale levels	256
Image formats supported	JPG, TIF
Document formats supported	PDF, XPS
Faxing	Mono faxing
Fax memory	8 MB
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Fax resolution (black)	200 x 100 DPI
Fax transmission speed	3 sec/page
Digital sender	-
Printing colors	Black
Maximum duty cycle	- pages per month
Total input capacity	500 sheets
Total output capacity	250 sheets
Duplex media weight	60 - 120 g/m²
Paper tray media types	Envelopes
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Product color	Black, Grey
Market positioning	Business
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint
Standard interfaces	Ethernet, USB 2.0
Memory slots	1
Internal memory	512 MB
Compatible memory cards	SD
Sound power level (standby)	53 dB
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (standby)	54.7 W
Power consumption (average operating)	680 W

Weight and Dimensions

Depth	455 mm
Width	475 mm
Height	575 mm
Weight	21500 g
