8 SensTool
8.1 SensTool GMXS7
Senstool is an essential part of the successful configuration of the GM7xx seismic detectors. Note that
the GM710 does not have Senstool connectivity. It is strongly recommended that SensTool is used for
the configuration and commissioning of the GM7xx seismic detectors. Certain configuration options
are only available from SensTool, such as digital filters, temperature adjustment & monitoring, alarm
contact options, test input options, remote input options, and shock sensitivity.
8.1.1 SensTool User Mode Settings (recommended)
The settings detailed below are with the digital filter set to OFF.
Construction
Impact
sensitivity
Application
Steel 1.0m
Low
Ticket machine with loud function-related noises.
Steel 1.5m
Medium
ATM, day/night vaults, safes with loud function-related noises.
Steel 2.0m
Medium
Encased safe, vault doors with function-related noises.
Concrete 2.5m
High
Vault room, element vault with some interfering influences.
Concrete 4.0m
High
Vault room, element vault with low interfering influences.
Concrete 5.0m
High
Vault room, element vault with minimal interfering influences.
LWS 1.5m
High
ATM made of plastic plating system with function-related noises.
LWS 2.0m
High
Element vault made from plastic plating system with minimal
noises.
Table 8-1: Recommended SensTool user mode settings
8.2 Setting up Senstool
The set up procedure is well documented in the SensTool manual and once communications have
been established the testing and recording of the data can commence. There is support information
available as part of the software package.

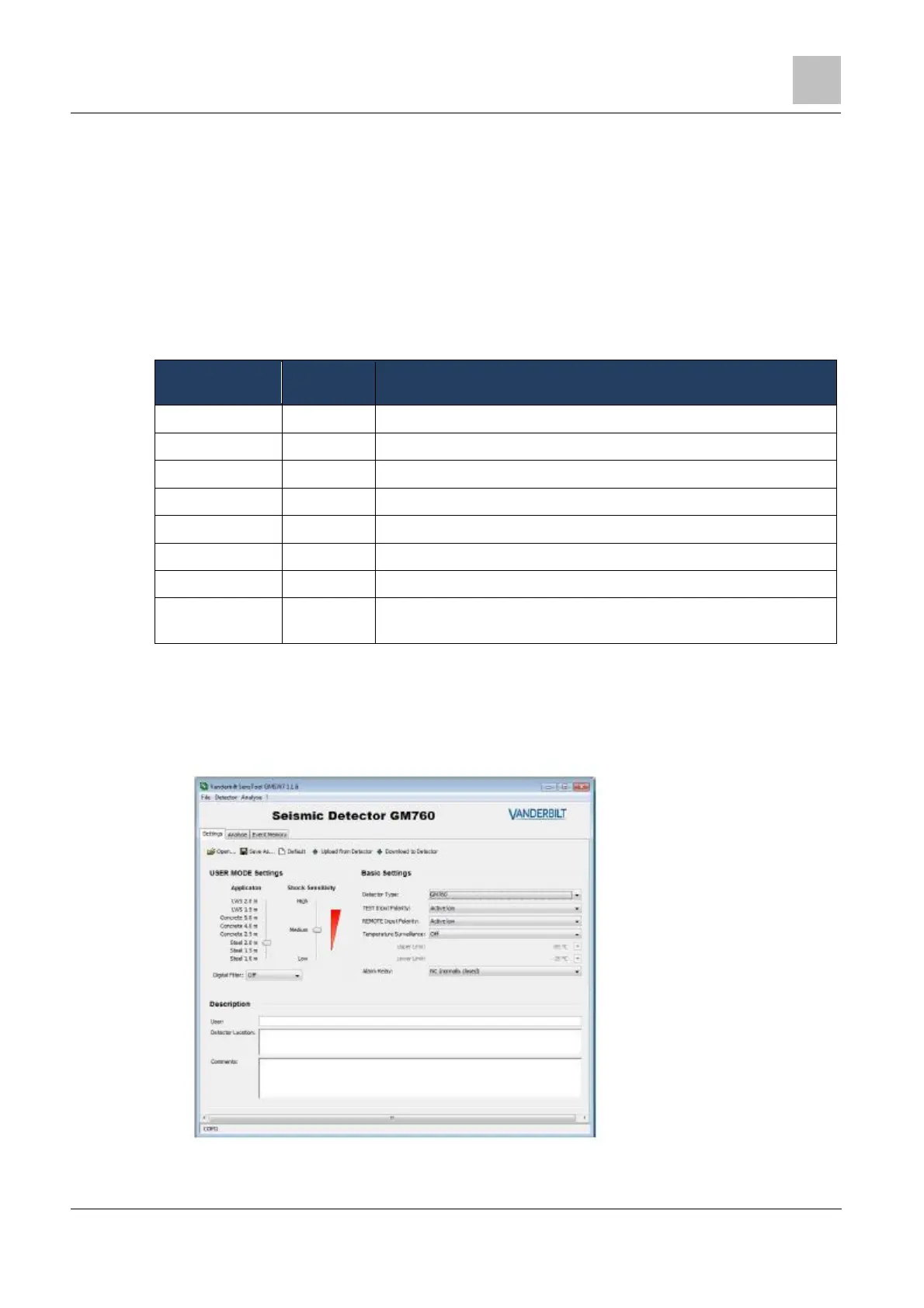

Figure 8-1: SensTool software
