5 Connecting to power supply
VEGAMET 841 • 4 … 20 mA
58864-EN-200401
over the same two-wire cable. This mode is provided for connec-
tion of measuring transducers without separate power supply
(sensors in two-wire version).
•
In passive mode the sensors are not powered, only the measured
value is transmitted. This input is for connection of transmitters
with their own separate voltage supply (sensors in four-wire ver-
sion). The VEGAMET 841 can also be looped into the existing
circuit like a normal ammeter.
Note:
With a VEGAMET 841 in Ex version, the passive input is not available.
5.3 Connecting
The voltage supply and inputs and outputs are connected via the
spring-loaded terminals.
Information:
Solidcoresaswellasexiblecoreswithwireendsleevesare
inserteddirectlyintotheterminalopenings.Incaseofexiblecores
without end sleeves, a small screwdriver must be pressed into the
rectangular opening so that the terminal opening is then free. When
the screwdriver is pulled out, the terminals are closed again.
Youcanndfurtherinformationonthemax.wirecross-sectioninthe
technical data.
Connect the device as described in the following wiring plan.
5.4 Wiring plan
91 92
LN
+- +-
61 62 63 64 65 66 67 68 69
41 42
123
Power 32
1S
ensor
Relay Output
Output
Current
1 2
3
4
5

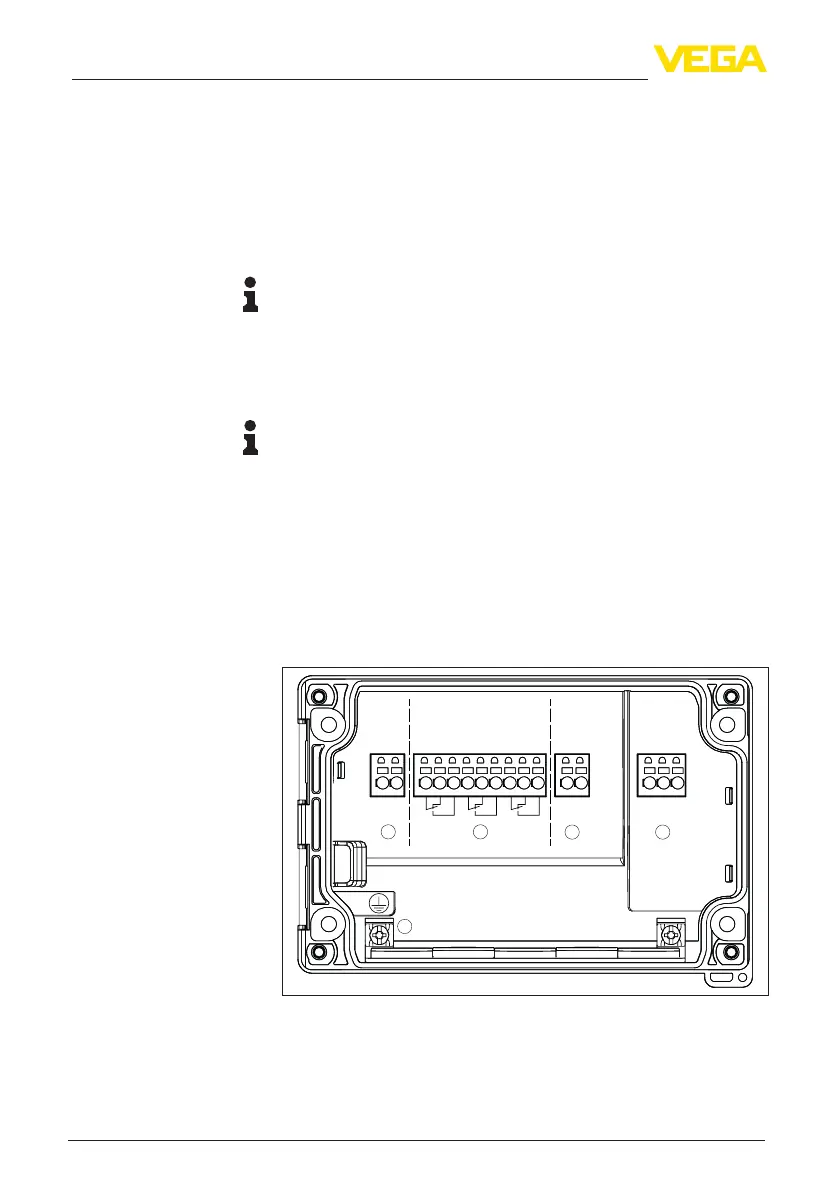

Fig. 6: Wiring plan VEGAMET 841
1 Voltage supply of the controller
2 Relay outputs 1 … 3
3 Current output
4 Sensor input (active/passive)
5 Ground terminal for protective conductor
Connection technology
Connecting
