7 Set up with the integrated display and adjustment unit
VEGAMET 841 • 4 … 20 mA
58864-EN-200401
7 Set up with the integrated display and
adjustment unit
7.1 Adjustment system
The integrated display and adjustment unit is used for measured val-
ue display, adjustment and diagnosis of the VEGAMET 841. Display
and adjustment are carried out via four keys and a graphic-capable
display with background lighting.
Certain adjustment options are not available or only partially available
with the integrated display and adjustment unit, e.g. the settings for
owmeasurementorpumpcontrol.Forsuchapplications,theuseof
PACTware/DTM or the VEGA Tools app is recommended.
1
3
2
4
5

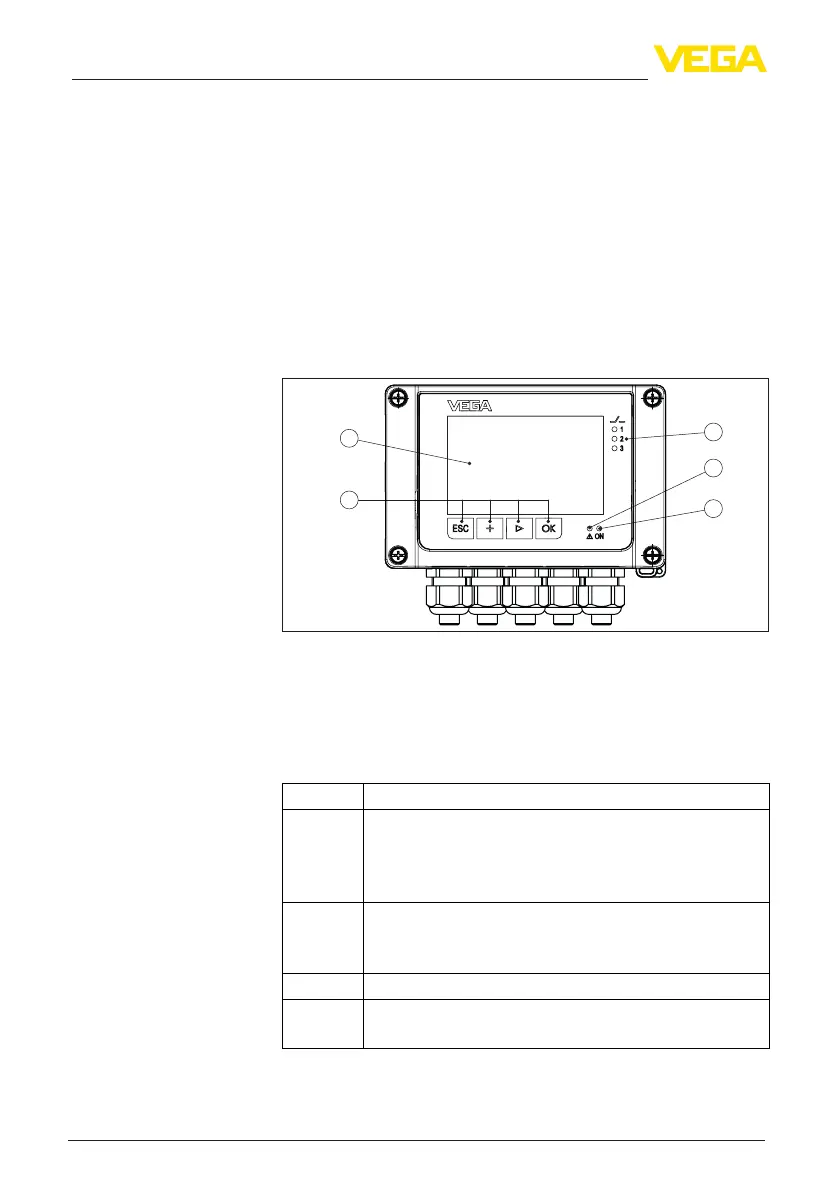

Fig. 8: Display and adjustment elements
1 LC display
2 Adjustment keys
3 Status indication relay
4 Status indication fault signal
5 Status indication operation
Key Function
[OK] Entry to the menu level
Jump to selected menu item
Edit parameter
Save value
[>] Switching between the individual measured value windows
Navigation in the menu items
Select editing position
[+] Change parameter values
[ESC] Jump to next higher menu
Interrupt input
Function
Display and adjustment
elements
Key functions
