11
4 Mounting
VEGADIS 82 • 4 … 20 mA/HART
45300-EN-240516
4 Mounting
4.1 General instructions
VEGADIS 82 functions in any installation position.
Protect your instrument against moisture ingress through the following
measures:
•
Use a suitable connection cable (see chapter "Connecting to
power supply")
•
Tighten the cable gland or plug connector
•
Lead the connection cable downward in front of the cable entry or
plug connector
This applies mainly to outdoor installations, in areas where high
humidity is expected (e.g. through cleaning processes) and on cooled
or heated vessels.
Note:
Make sure that during installation or maintenance no moisture or dirt
can get inside the instrument.
To maintain the housing protection, make sure that the housing lid is
closed during operation and locked, if necessary.
4.2 Mounting instructions
The VEGADIS 82 in all available housing materials is suitable for wall
mounting.
7 mm
(0.28")
82 mm
(3.23")
10 mm
(0.39")

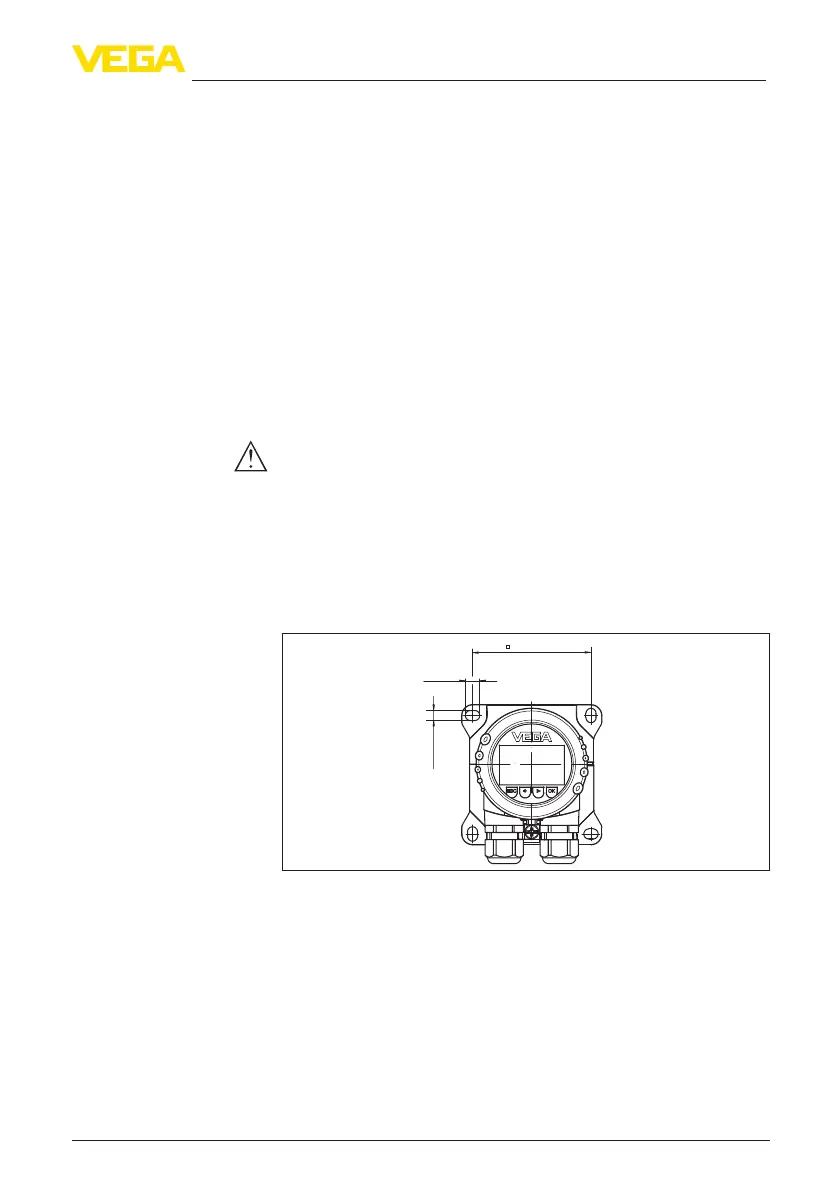

Fig. 3: Drilling dimensions for VEGADIS 82 for wall mounting
The VEGADIS 82 with plastic housing is suitable for direct carrier rail
mounting according to EN 50022.
Installation position
Protection against mois-
ture
Wall mounting
Carrier rail mounting
