6.7 Parameter adjustment - VEGAPULS WL 61

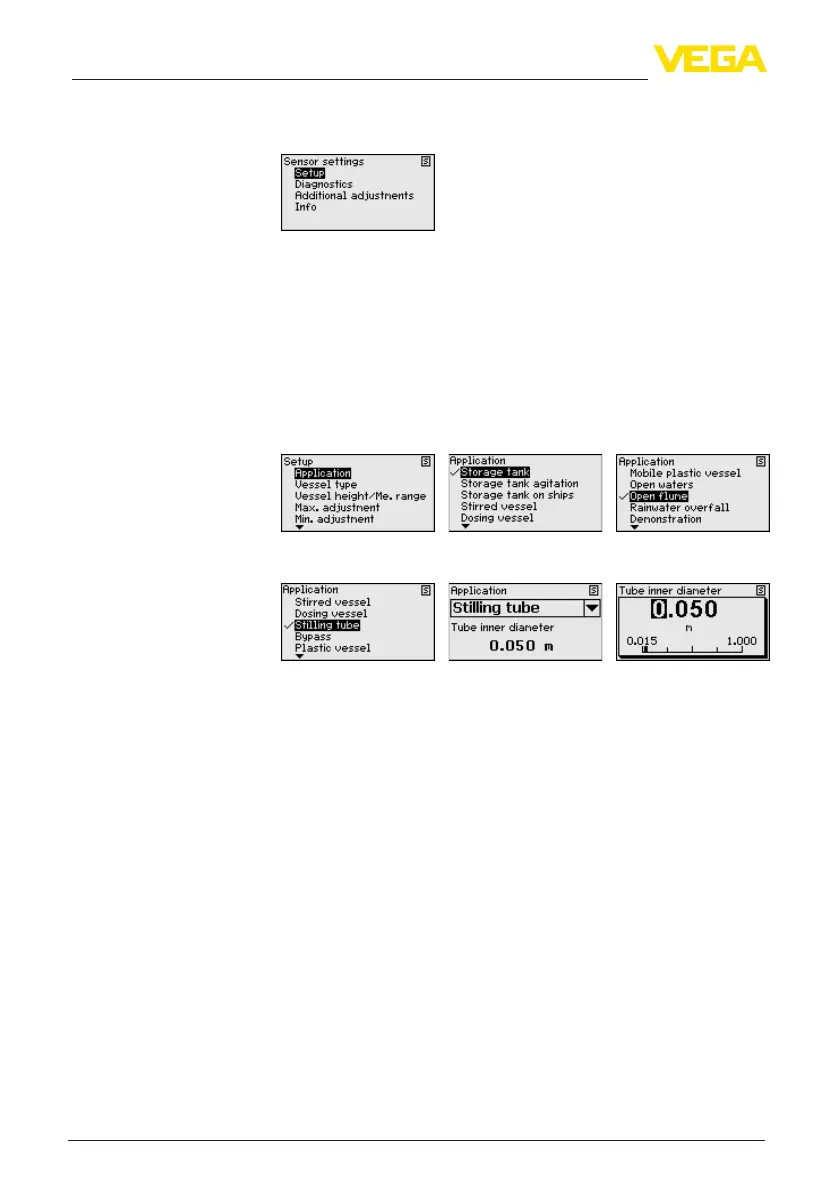

The main menu is divided into four areas with the following functions:
Setup: Settings, for example, for medium, application, vessel form,
adjustment, signal output
Diagnosis: Information, for example on the instrument status, peak
indicator, measurement reliability, echo curve memory as well as
simulation
Additional adjustment: False signal suppression, linearization, reset
Info: Instrument type and serial number
With this menu item you can adapt the sensor to the measurement
conditions. The following options are available:
The selection "Standpipe" opens a new window in which the inner
diameter of the applied standpipe is entered.
The following features form the basis of the applications:
Storage tank:
•
Setup: large-volumed, upright cylindrical, spherical
•
Mediumspeed:slowllingandemptying
•
Process/measurement conditions:
– Condensation
– Smooth medium surface
– Max. requirement to the measurement accuracy
•
Properties, sensor:
– Low sensitivity to sporadic false echoes
– Stable and reliable measured values through averaging
– High measurement accuracy
– Short reaction time of the sensor not required
Storage tank with product circulation:
•
Setup: large-volumed, upright cylindrical, spherical
•
Mediumspeed:slowllingandemptying
•
Vessel: small laterally mounted or large top mounted stirrer
•
Process/measurement conditions:
– Relatively smooth medium surface
– Max. requirement to the measurement accuracy
– Condensation
Main menu
Setup - Application
