3 Product description
VEGADIS 82 • 4 … 20 mA/HART
45300-EN-240516
4
5
6
3
2
1

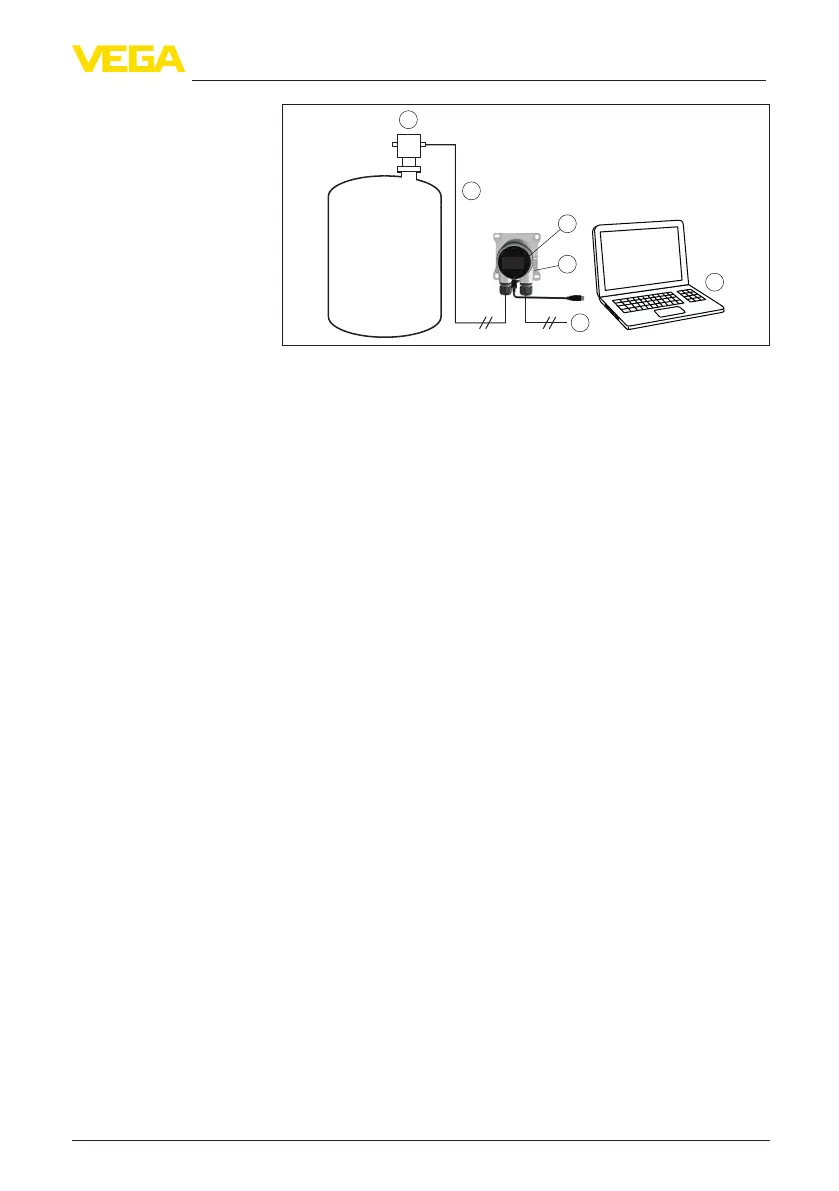

Fig. 2: Connection of the VEGADIS 82 to the sensor and the PC, adjustment via
PC with PACTware
1 Voltage supply/Signal output sensor
2 VEGADIS 82
3 VEGACONNECT
4 4 … 20 mA/HART signal cable
5 Sensor
6 PC with PACTware/DTM
4 … 20 mA mode: when connected to a 4 … 20 mA signal cable,
VEGADIS 82 operates exclusively as a display instrument.
Adjustment range: Indication scaling VEGADIS 82
HART mode: when operated with a 4 … 20 mA/HART sensor, the
VEGADIS 82 operates as display and HART adjusment instrument.
The parameter adjustment of the sensor is carried out via HART
communication. During the parameter adjustment, the VEGADIS 82
operates as a Primary or Secondary Master to the sensor.
Adjustment range: Sensor adjustment, indication scaling VEGADIS
82
HART multidrop: the VEGADIS 82 can be also used as an indicating
device for a bus participant in a HART multidrop system.
Adjustment range: Sensor adjustment for a bus participant, indication
scaling VEGADIS 82
3.3 Packaging, transport and storage
Your instrument was protected by packaging during transport. Its
capacity to handle normal loads during transport is assured by a test
based on ISO 4180.
The packaging of standard instruments consists of environment-
friendly, recyclable cardboard. For special versions, PE foam or PE
foil is also used. Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out in due consideration of the notes on the
transport packaging. Nonobservance of these instructions can cause
damage to the device.
Modes
Packaging
Transport
