6 Set up with the display and adjustment module
VEGADIS 82 • 4 … 20 mA/HART
45300-EN-240516
6.5 Start menu
The start menu is divided into two sections with the following func-
tions:
The selection branches into the following menus for parameter adjust-
ment of the VEGADIS 82 or the connected sensor.
Note:
The symbol "S" is displayed in the upper right corner of the display if
there is a HART connection to the sensor.
6.6 Parameter adjustment - VEGADIS 82
The main menu is divided into four areas with the following functions:
Setup: Settings, e.g. to measurement loop name, damping, scaling
Diagnosis: Information on the device status
Additional adjustments: Reset, copy display settings
Info: Instrument name, instrument version, date of manufacture,
instrument features
For optimum adjustment of the instrument, the individual submenu
items should be selected one after the other in the main menu item
"Setup" and provided with the correct parameter values.
In the menu item "Measurement loop name" you edit a twelve digit
measurement loop designation label.
You can enter an unambiguous designation for the measured value,
e.g. the measurement loop name or the tank or product designation.
In digital systems and in the documentation of larger plants, a singular
designationmustbeenteredforexactidenticationofindividual
measuring points.
The character set comprises the following ASCII signs with extension
according to ISO 8859-1:
•
Letters from A … Z
•
Numbers from 0 … 9
•
Special characters such as +, -, /, - etc.
This menu item allows a change of the national language.

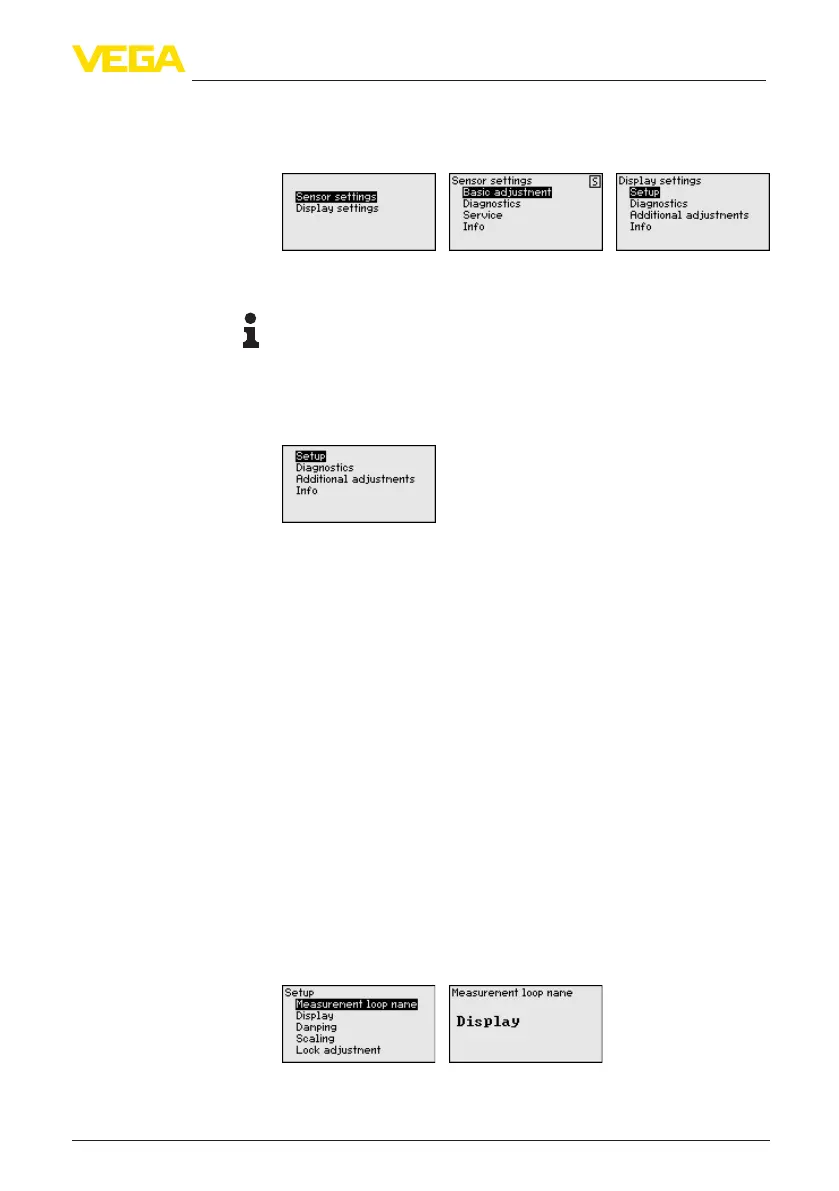

Start menu
Main menu
Setup - Measurement
loop name
Setup - Display, menu
language
