OPERATIONAL CONTROLS
Operation - 22
12 VOLT 4-PIN SOCKET (FF)
Optional accessory. The socket is controlled by the
12 volt switches and provides electrical power to
attachments equipped with electrical controls. (e.g.
broom rotation actuator, snowblower discharge
chute angle, etc.)
ELECTRIC PTO REMOTE (5-PIN SOCKET) (GG)
Optional accessory. The 5-pin socket is used with at-
tachments equipped with a remote PTO switch, such
as the HG150 generator, allowing the operator to
shut off the power unit PTO from the attachment.

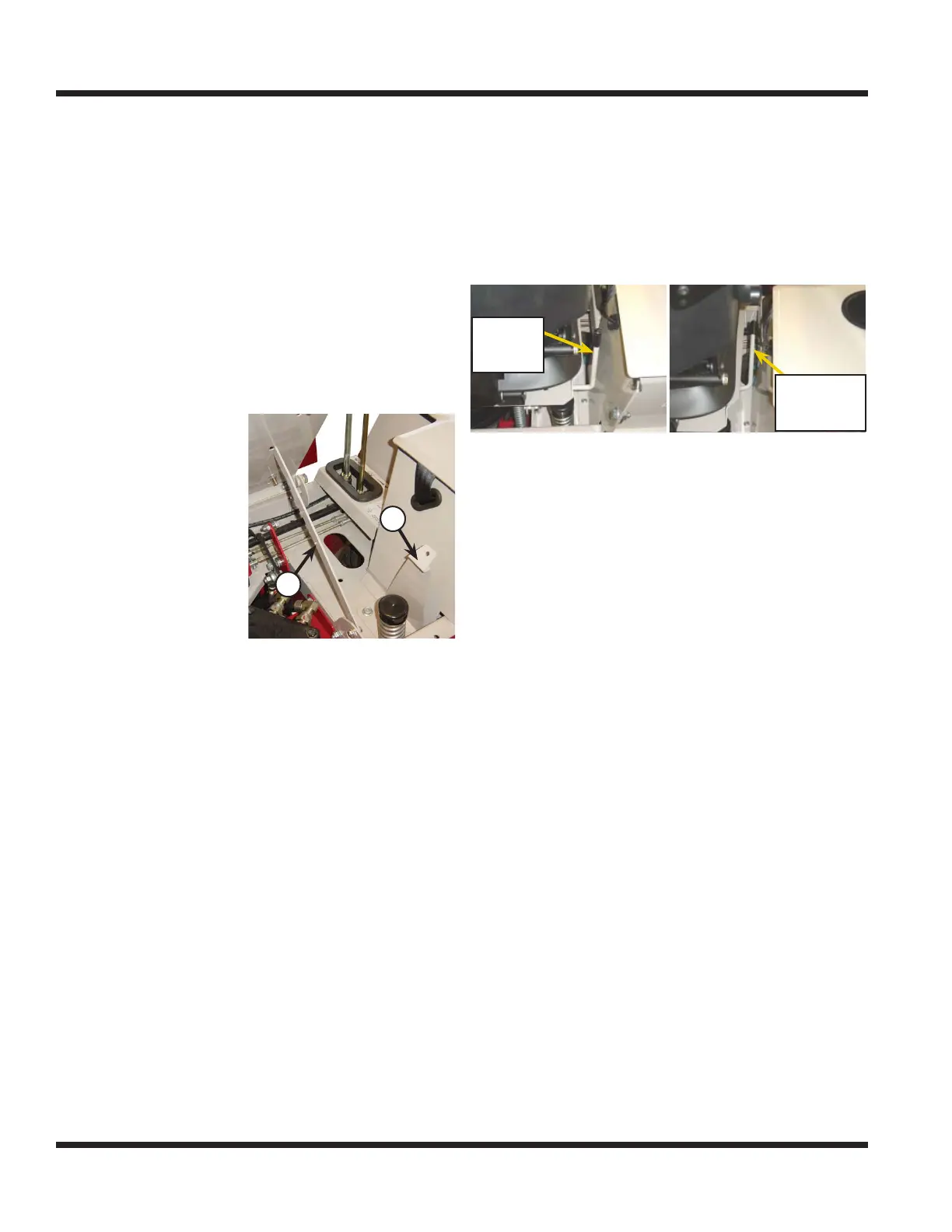

SEAT LATCH (HH)
The seat latch (A) secures the standard seat during
transport.
To release, pull the latch
away from the seat
plate while lifting up on
the seat.
SEAT PROP (II)
The seat prop (B)
secures the seat in the
tipped forward position
while service is per-
formed under the seat.
To secure, tip the seat forward, lift up the seat prop,
and insert the end into the wide portion of the seat
plate slot. Move the seat prop to the narrow portion
of the slot to prevent accidental release.
To release, move the seat prop to the wide portion of
the slot. Tip the seat forward while guiding the seat
prop out of the slot. Lower the seat prop back into
the seat box.
SEAT LOCK LEVER (JJ)
The seat lock lever is included with the optional
suspension seat kit. It secures the suspension seat
during transport. It can also replace the standard
seat latch.
Engage the seat lock lever by lifting up until it locks
in the upright position. Disengage the seat lock lever
by pushing it down alongside the seat.
Seat Lock
Lever
(Disengaged)
Seat Lock
Lever
(Engaged)
The seat lock lever must be disengaged prior to
operation.
